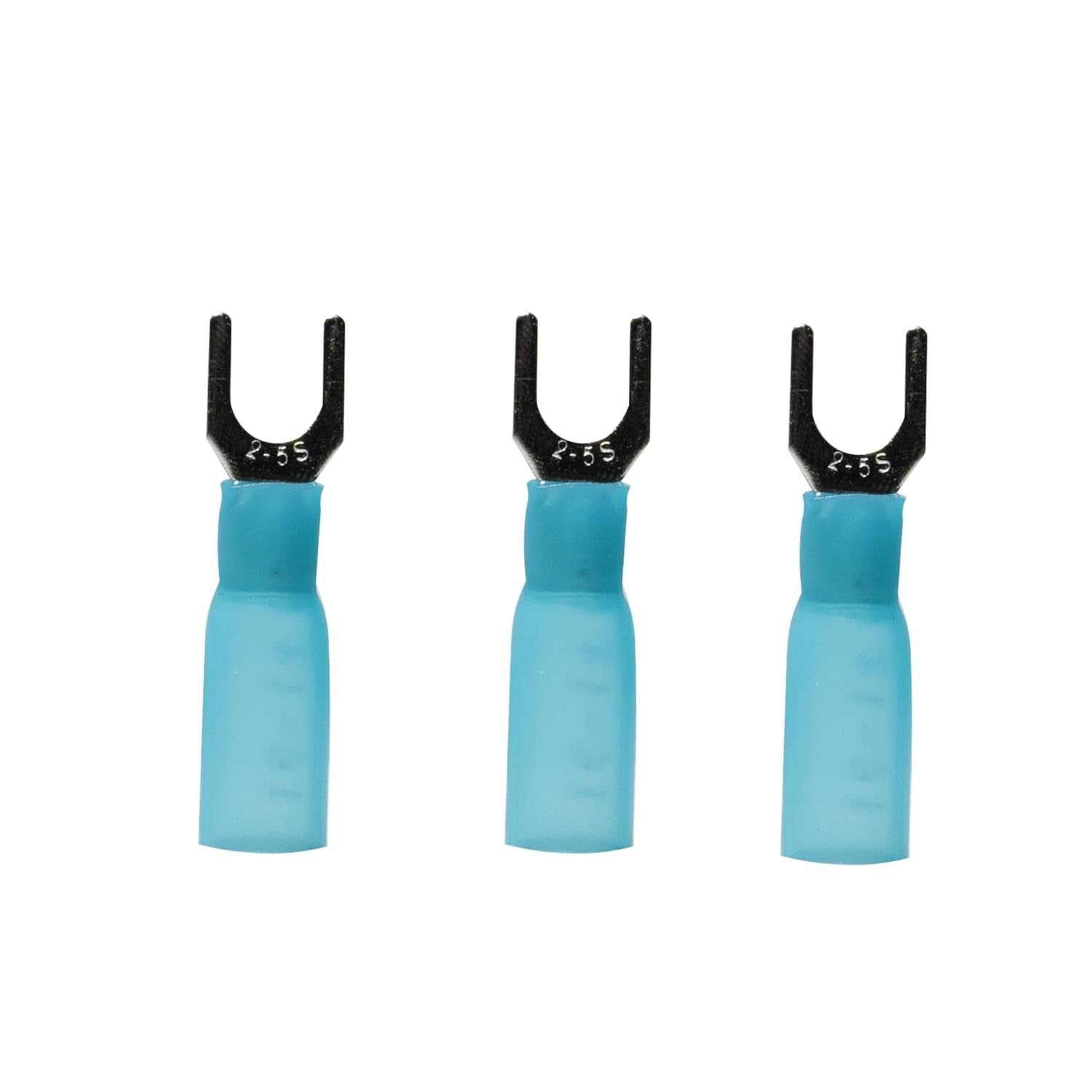

100 PCS Blue Brass Fork Terminal Connectors, U-Type Stud Blue-AWG 16-14,

Description

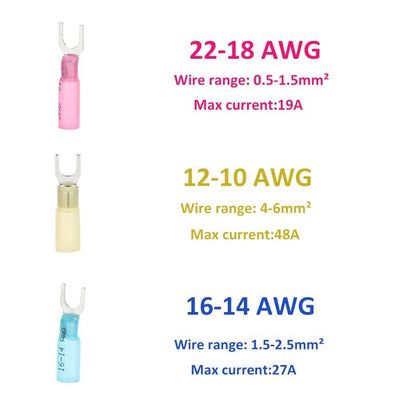

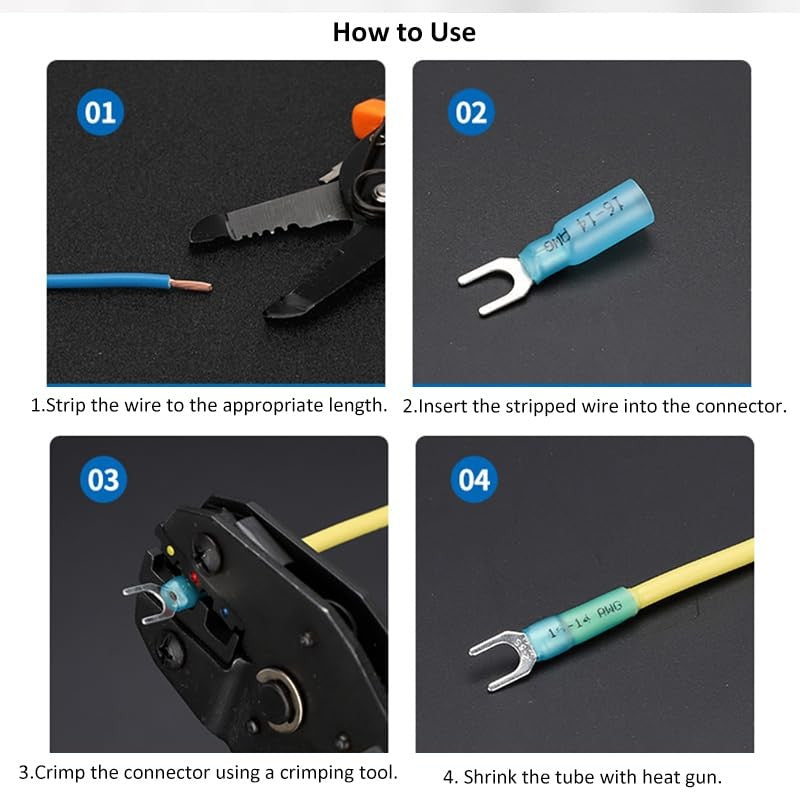

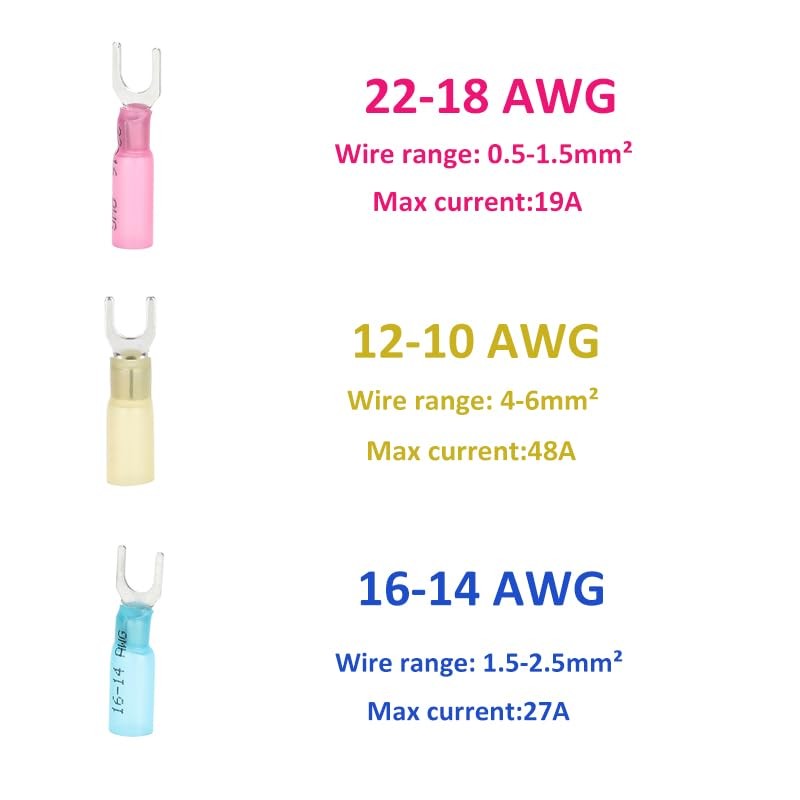

A fork connector, also known as a fork terminal or forked spade connector, is a type of electrical connector used to join electrical wires to a terminal block or stud. The fork connector's unique design allows it to be easily attached and detached from screw terminals without fully removing the screw, providing a convenient and reliable connection.Materials:- Conductor: Brass- Insulation: PE- Plating: Tin- Shrinkage ratio 3：1- Size: Fork # 10- Waterproof level : IP67- Operating temperature : -55℃～125℃- Minimum shrink temperature : 80˚C- Fully recovery temperature : 130˚CWire gauges: -Red for 22-18 AWG-Blue for 16-14 AWG-Yellow for 12-10 AWGInstallation:1. Stripping the Wire: Strip a small length of insulation from the end of the wire.2. Inserting the Wire: Insert the stripped wire into the barrel of the fork connector.3. Crimping: Use a crimping tool to compress the barrel around the wire, ensuring a secure and conductive connection.4. Shrinking: Shrink the tube with a heat gun by rotating the tube.5. Connecting: Place the fork around the screw or bolt and tighten it down to secure the connection.

Features:

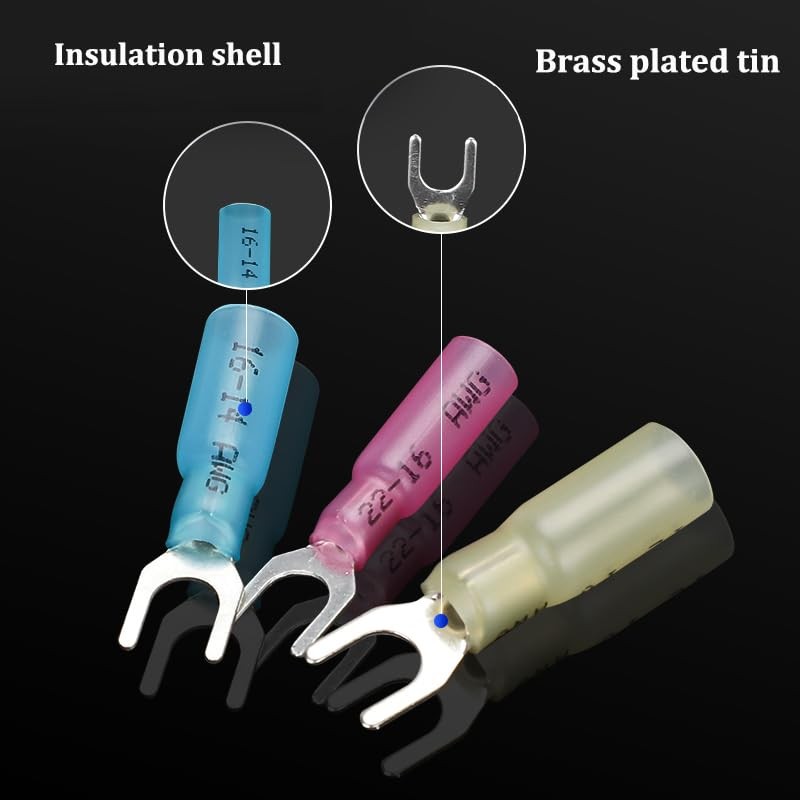

• Material: Made of insulated PE shell and Brass plated with tin to enhance conductivity and prevent corrosion.
• Heat shrink fork connectors: The connector has a U-shaped fork at one end, which is designed to fit around a screw or bolt. The fork connector's unique design allows it to be easily attached and detached from screw terminals without fully removing the screw, providing a convenient and reliable connection.

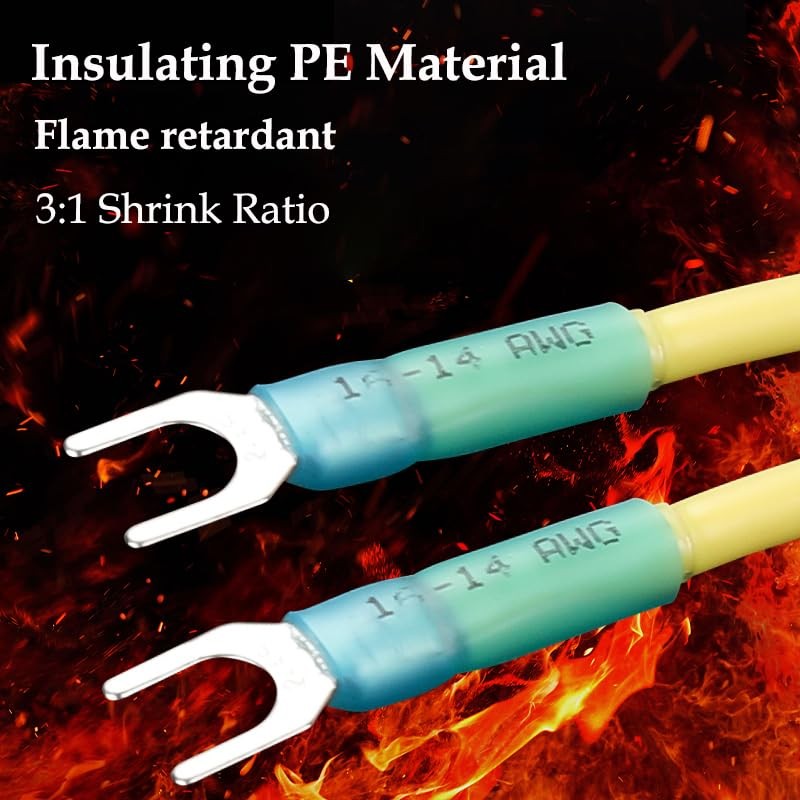

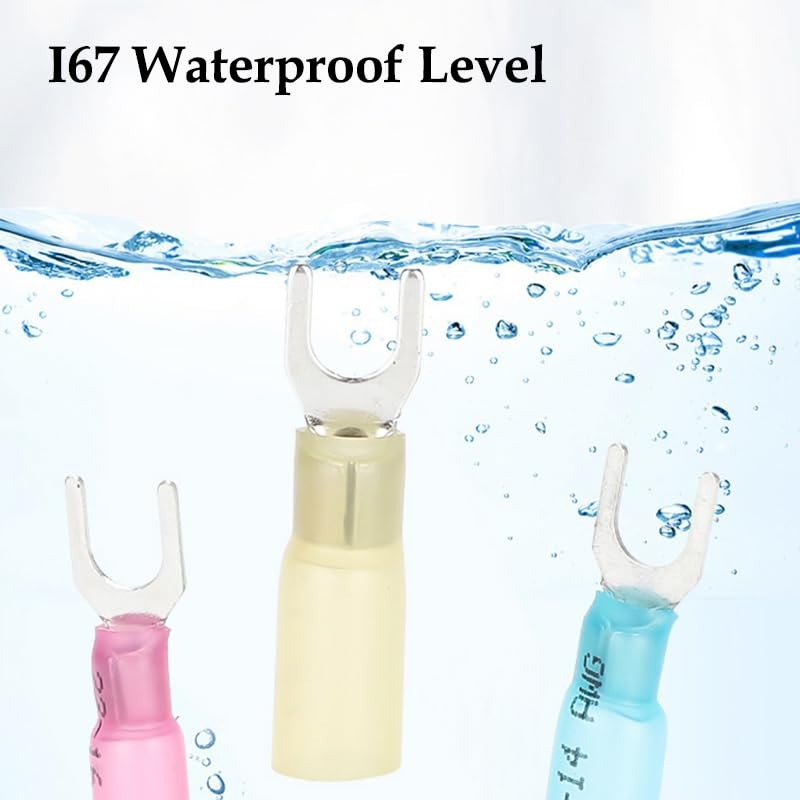

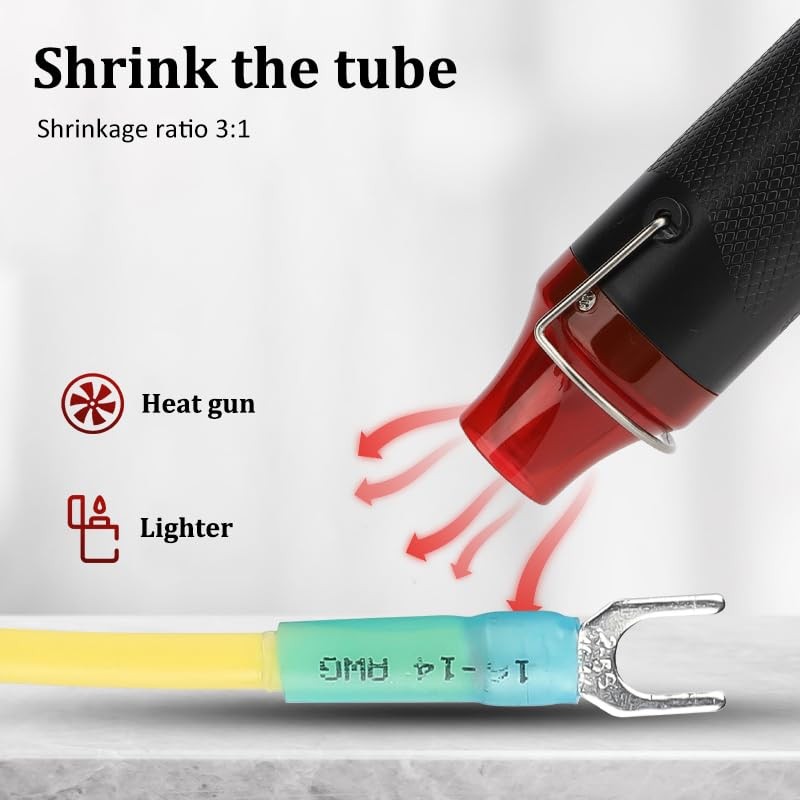

• Industrial grade heat shrink tubing - Shrinks to 1/3 of its original size; heat-activated adhesive seals the connection from the elements.Double protection, to keep moisture out of the crimp connection. The connecting part of the wire and the wire connectors can reach the IP67 waterproof level.
• Application: They are widely used in various applications, including automotive, industrial, and household electrical systems or anything that needs to be connected and reconnected quickly.
• Package: Including 100PCS fork connector. Color: Blue, A.W.G 16-14, Wire range: 1.5-2.5mm², Max current:27A.

Product Details:

• Package Dimensions : 3.94 x 1.97 x 0.39 inches; 1.76 ounces
• Manufacturer : XUGERIP
• Color: Blue
• Gauge: 16
• Connector Type: Spade
• Contact Material: Brass
• Insulation Material: Polyethylene
