100pcs Heat Shrink Bullet Connectors 22-10 blue, Red, Blue, Yellow, yellow

Description

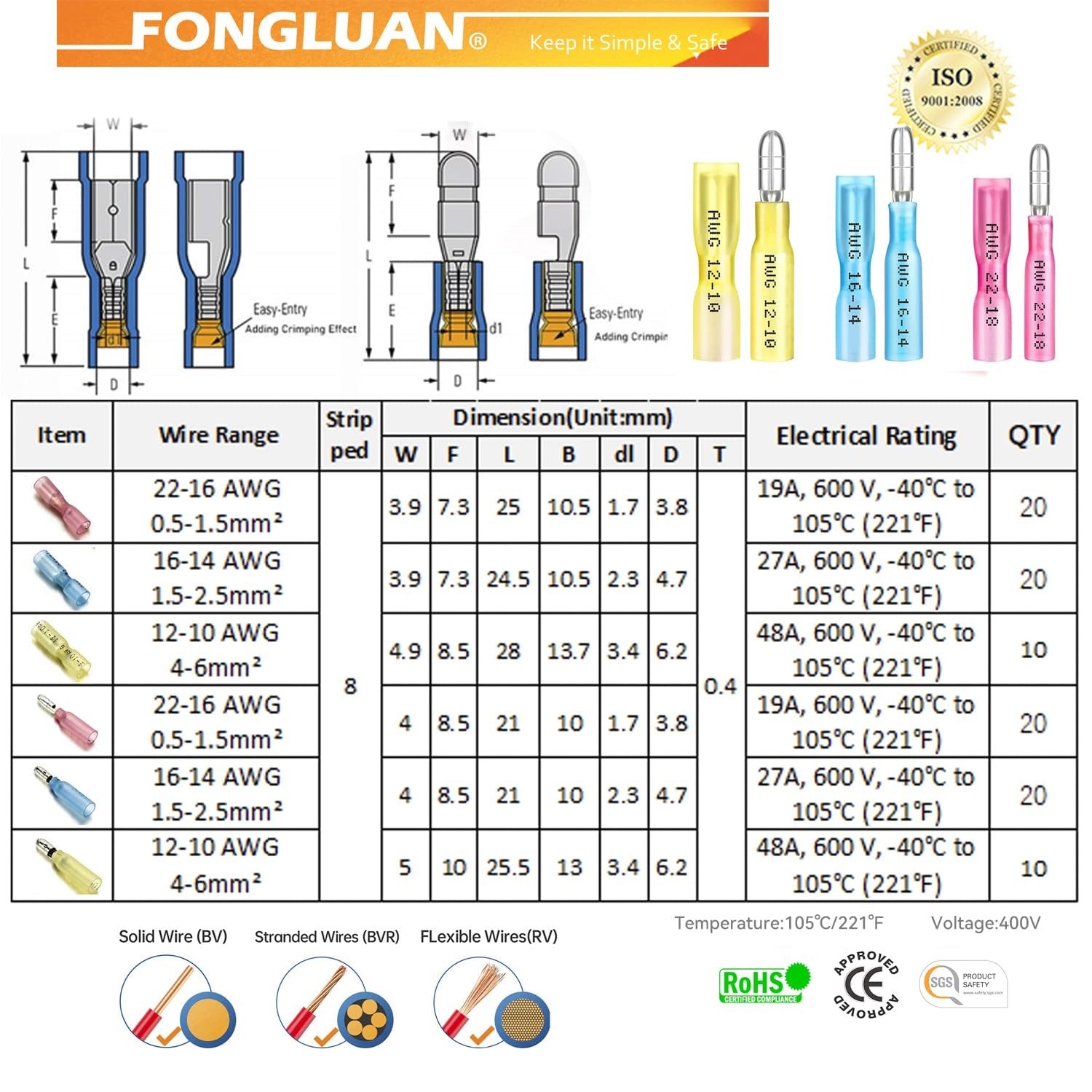

Heat Shrink Bullet Connectors 22-10 Gauge Quick Disconnect Wire Connectors Female Male Crimp Connectors Butt Terminals Specifications - Materials:Polyolefin,Copper,Plating Tin - Color: Red,Blue,Yellow - Nominal voltage: IEC rating: 450 V / UL rating: 300 V - Operating Temperature: -5 up to +45°C - Dielectric Strength: 3kv - Flame Retardant - Size: Red: 22-16AWG ,Max current 19A Blue: 16-14AWG ,Max current 27A Yellow: 12-10AWG,Max current 48A Features - High-quality:ISO9001:2008/CE/SGS/RoHS strictly - Fully insulated structure design, safer when used - Accept a combination of solid and stranded wires for single and multiple applications - Pretty easy to use - Good electrical insulation - Corrosion resistance - Long service life SET INCLUDES - 20pcs x Male bullet connectors red - 20pcs x Female bullet connectors red - 20pcs x Male bullet connectors blue - 20pcs x Female bullet connectors blue - 10pcs x Male bullet connectors yellow - 10pcs x Female bullet connectors yellow Note For best results, please choose the right connector, use a hot air gun, heat evenly until connector reduces in size and the adhesive flows, filling gaps within the terminals.

Features:

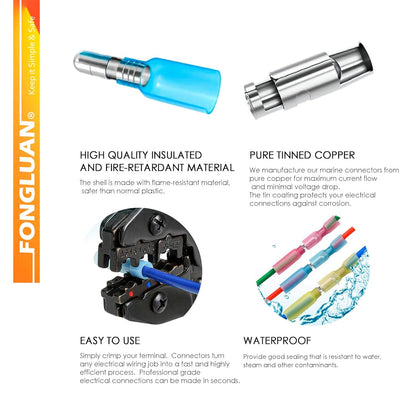

• [ PREMIUM QUALITY ] - Tinned copper contacts will not bend even when tapping into thicker wires, can keep the current stable,decrease voltage drop.The shell is made with flame-resistant material.
• [ EVENLY SHRINKING ] - Evenly Shrink when heated, no deformation or burn.

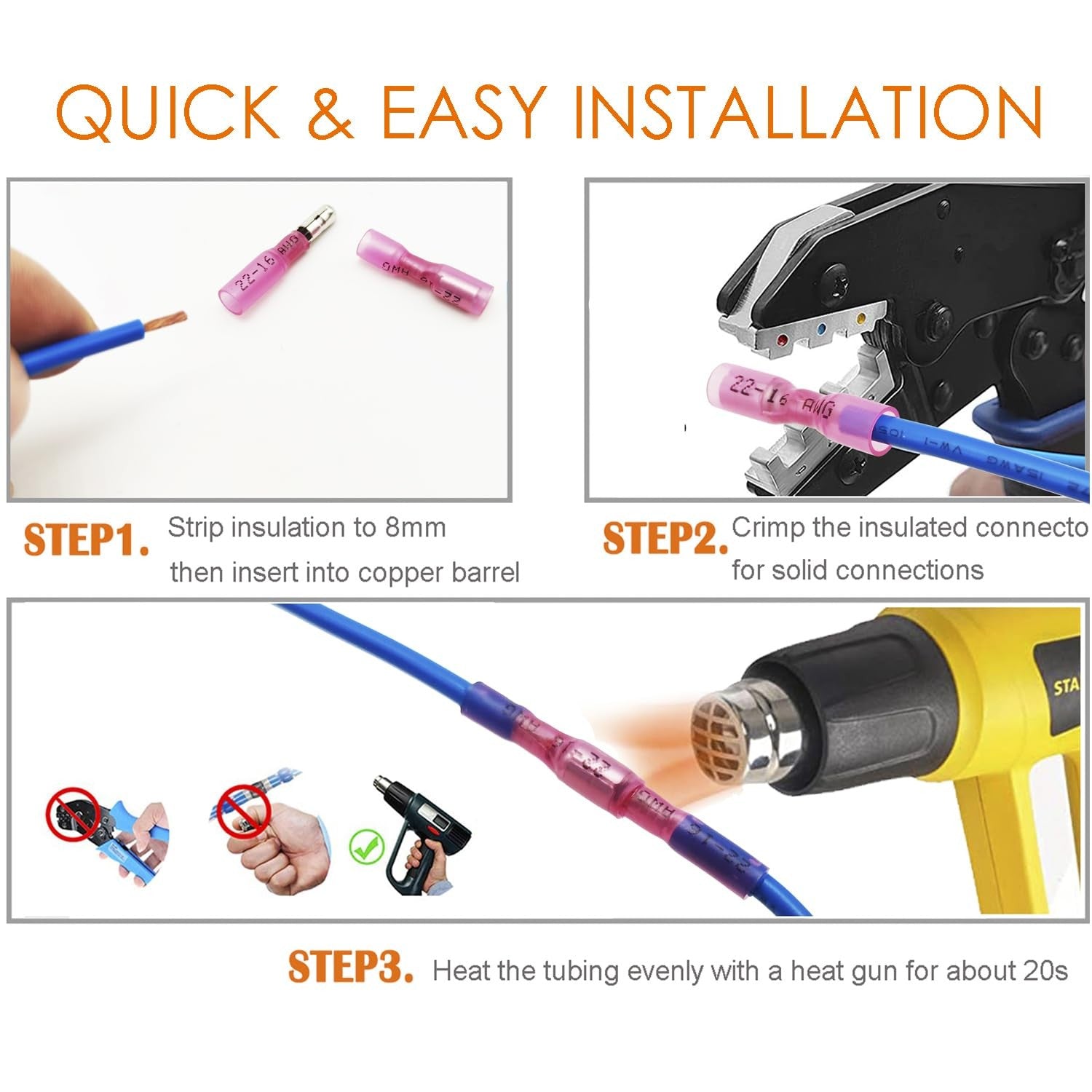

• [ EASY TO USE ] - Connectors turn any electrical wiring job into a fast and highly efficient process. Simply crimp your terminal. Professional grade electrical connections can be made in seconds.
• [ VARIOUS APPLICATIONS ] - Ideally used in automobile, lighting, electrical control, fixtures, control circuits, signal and PA systems, home appliances, machinery and other electrical connection parts.

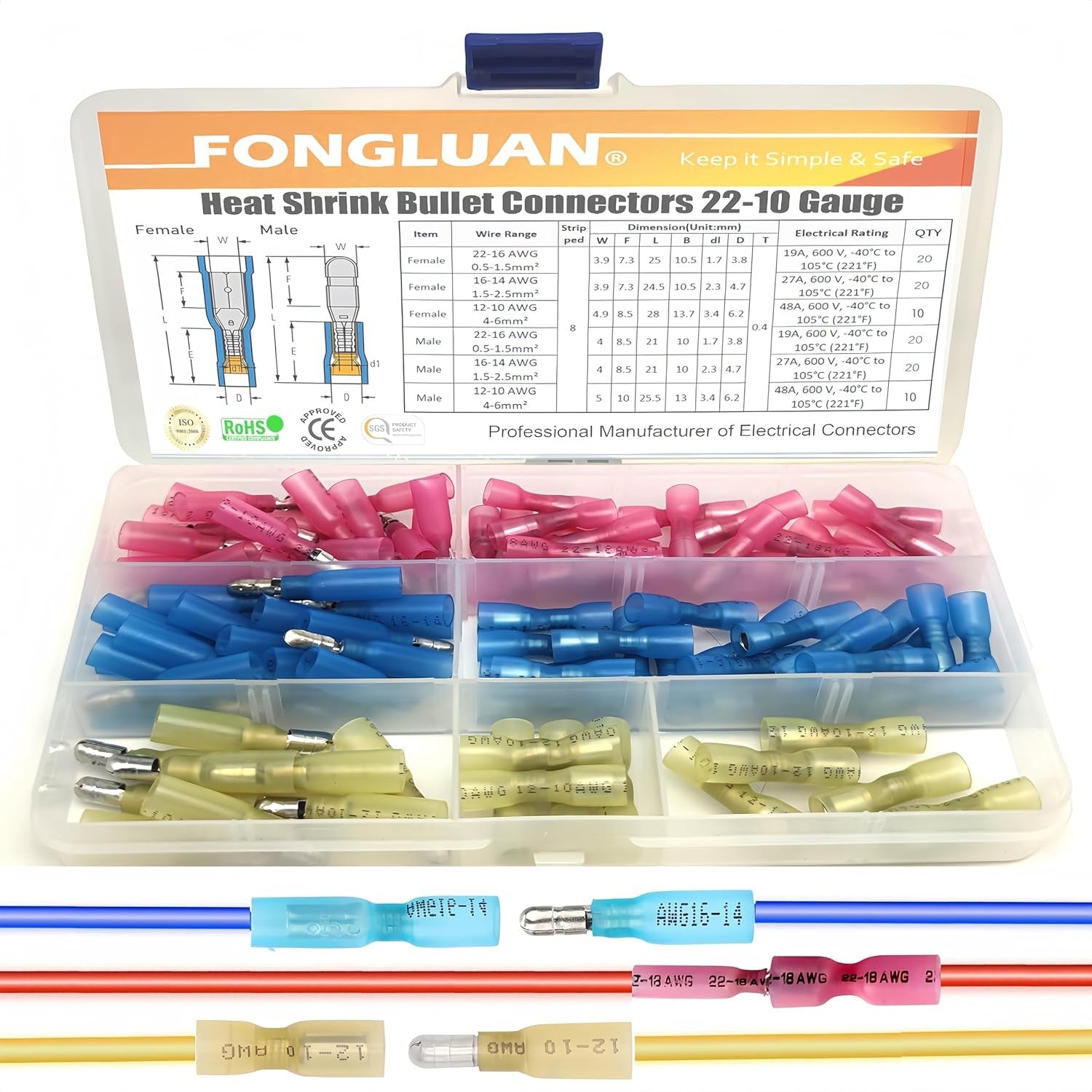

• [ SET INCLUDES ] - The Heat Shrink Bullet Connectors 22-10 Gauge Quick Disconnect Wire Connectors Female Male Crimp Connectors Butt Terminals kit includes 22-16AWG/Red 20pairs, 16-14AWG/Blue 20pairs, 12-10AWG/Yellow 10pairs, Total 100pcs packed in a plastic box.

Product Details:

• Product Dimensions : 6.81 x 3.94 x 0.87 inches; 4.16 ounces
• Item model number : RSZD100V1
• Manufacturer : FONLUN
• Color: blue, Red, Blue, Yellow, yellow
• Gauge: 10.0
• Connector Type: Bullet, Crimp
• Contact Material: Copper
• Insulation Material: Polyolefin
