100pcs Nylon Flag Spade Female Insulated Terminals 24-10 Gauge Quick Disconnects Electrical Crimp Terminals Connector Assortment Set

Description

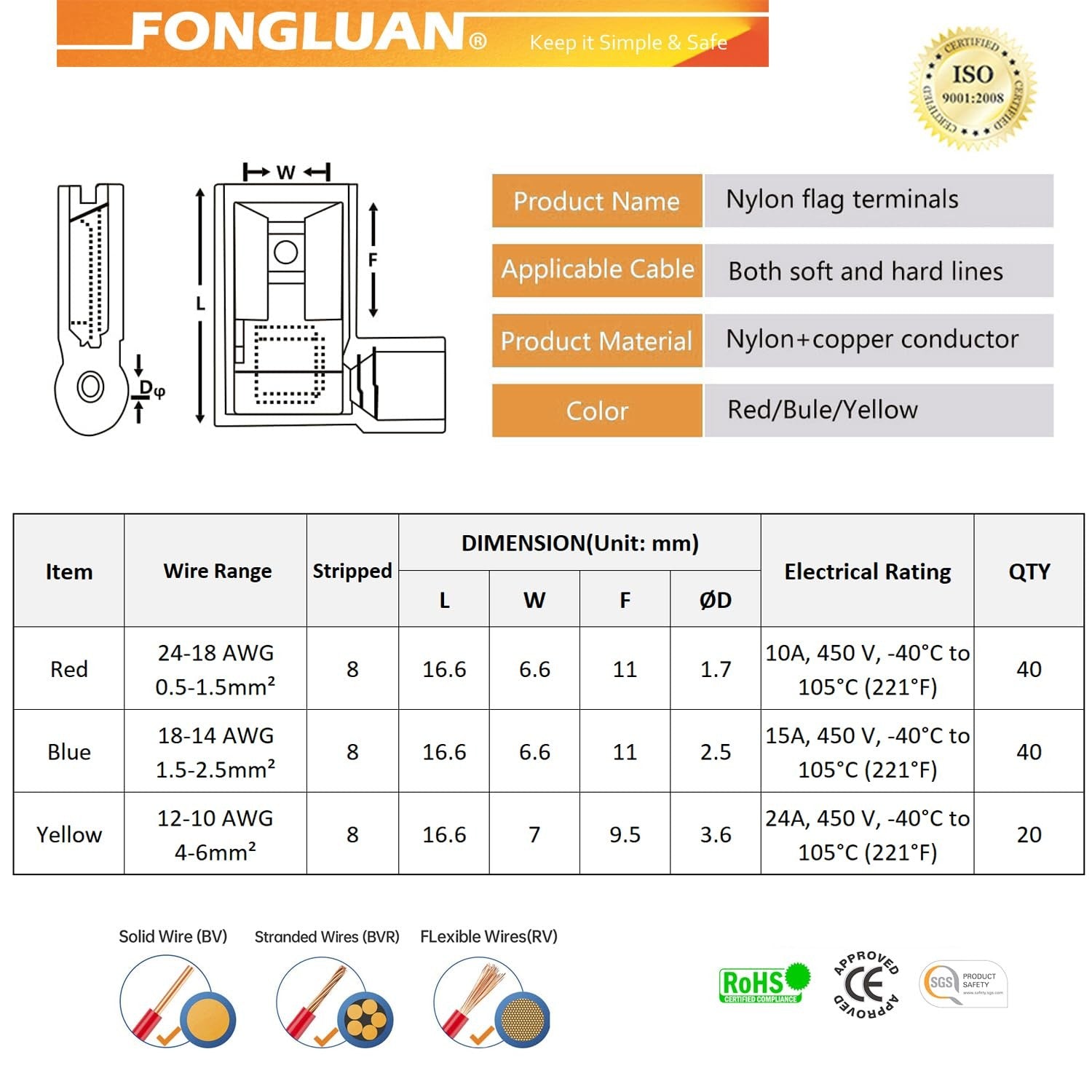

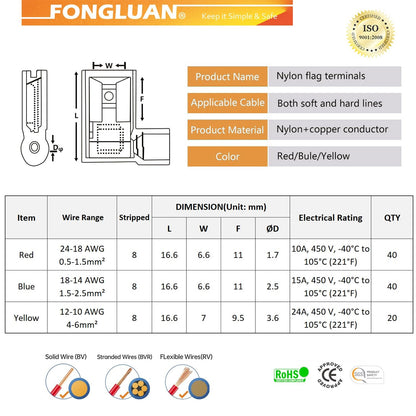

Nylon Flag Spade Quick Disconnects Female Wire Connector 24-10 AWG 90 Degree Electrical Crimp Wire Terminals Specification - Materials:Nylon,Copper,Plating Tin - Color:Red,Blue,Yellow - Nominal Voltage:300V/Max.600V Red : AWG 24-18, Wire range: 0.3-1.5mm² ,Max Current=10A Blue : AWG 18-14, Wire range: 1.5-2.5mm² ,Max Current=15A Yellow: AWG 12-10, Wire range: 4-6mm² , Max Current=24A - Characteristic: Female ,90 degree - Operating Temperature: -40~105°C - For Solid And Stranded Wires Features - High-quality:ISO9001:2008/CE/SGS/RoHS/CAS strictly and According to UL486 requirements - Fully insulated structure design, safer when used - Accept a combination of solid and stranded wires for single and multiple applications - Flag terminals are great for those hard to REACH right angles when running wires - Different colors allow you easy to identify and choose quickly - Flame Retardant - Pretty easy to use - Good electrical insulation - Corrosion resistance - Long service life Note For best results, please use profession crimping tool.

Features:

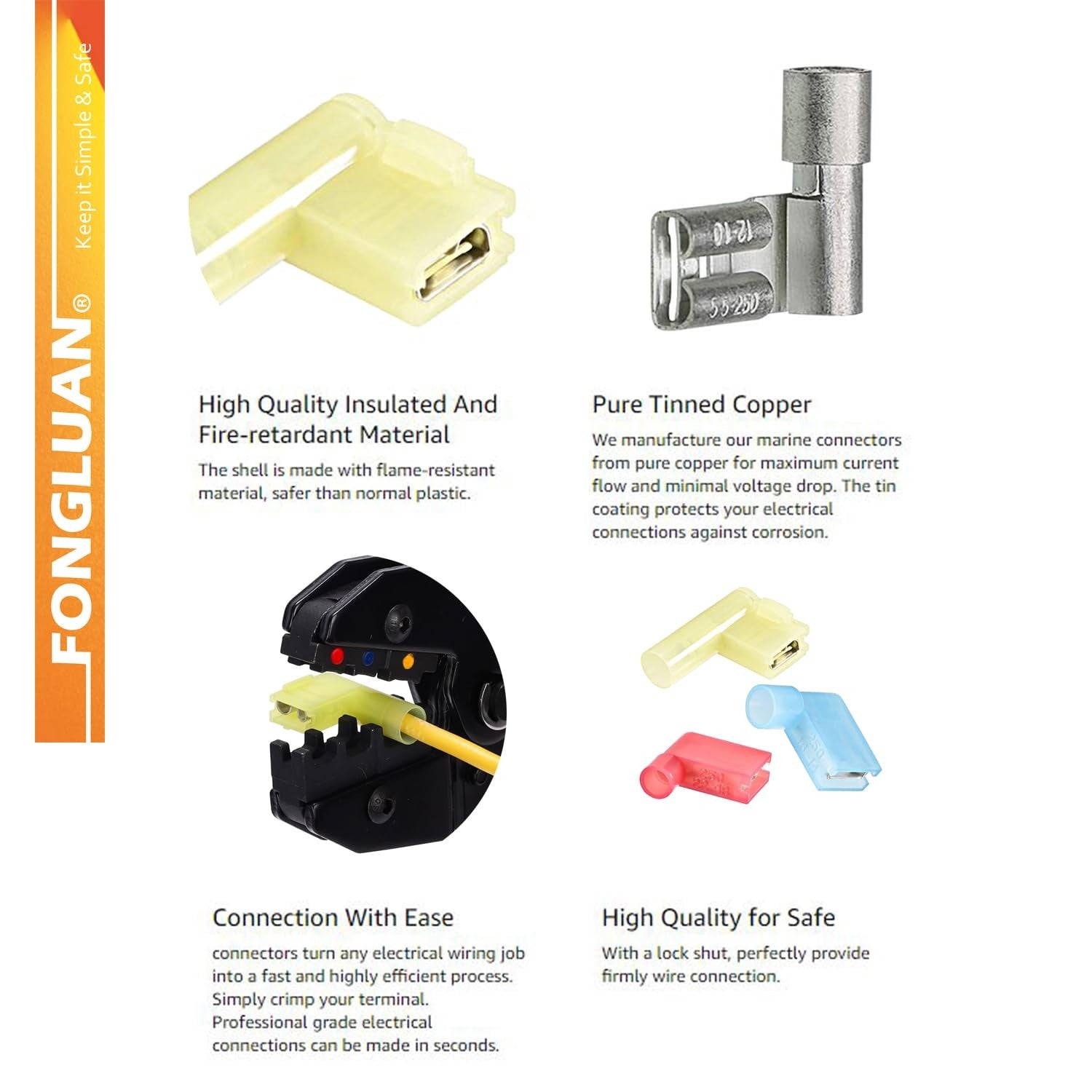

• [ PREMIUM QUALITY ] - Tinned copper contacts will not bend even when tapping into thicker wires, can keep the current stable,decrease voltage drop.The shell is made with flame-resistant material.
• [ VARIOUS APPLICATIONS ] - Ideally used in automobile, lighting, electrical control, fixtures, control circuits, signal and PA systems, home appliances, machinery and other electrical connection parts.

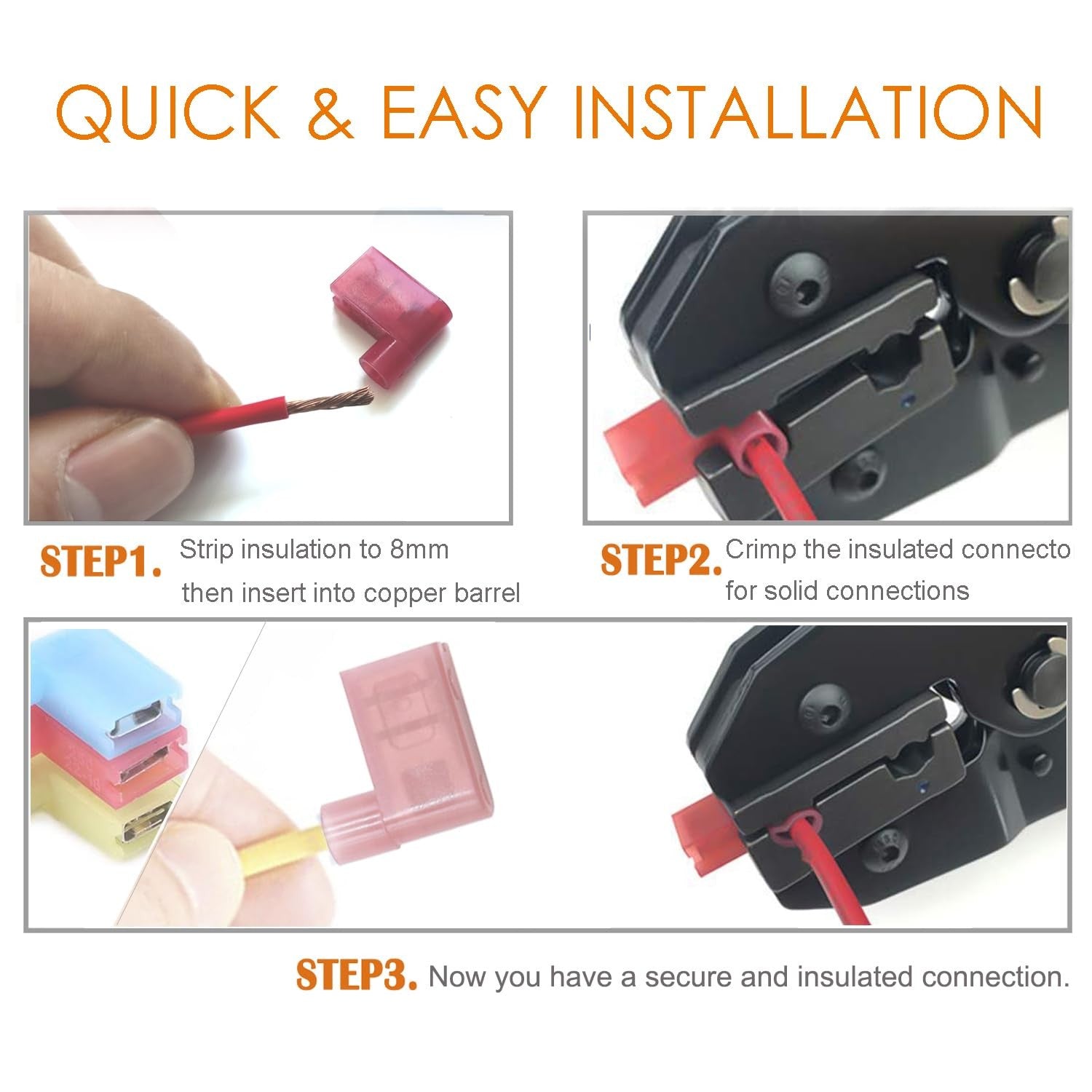

• [ EASY TO USE ] - Simply crimp your terminal. Connectors turn any electrical wiring job into a fast and highly efficient process. Professional grade electrical connections can be made in seconds.
• [ DURABILITY ] - Each terminal features a thick tinned copper barrel that resists corrosion to hold the wire tight when crimped. High-temperature resistance up to 221degree Fahrenheit.

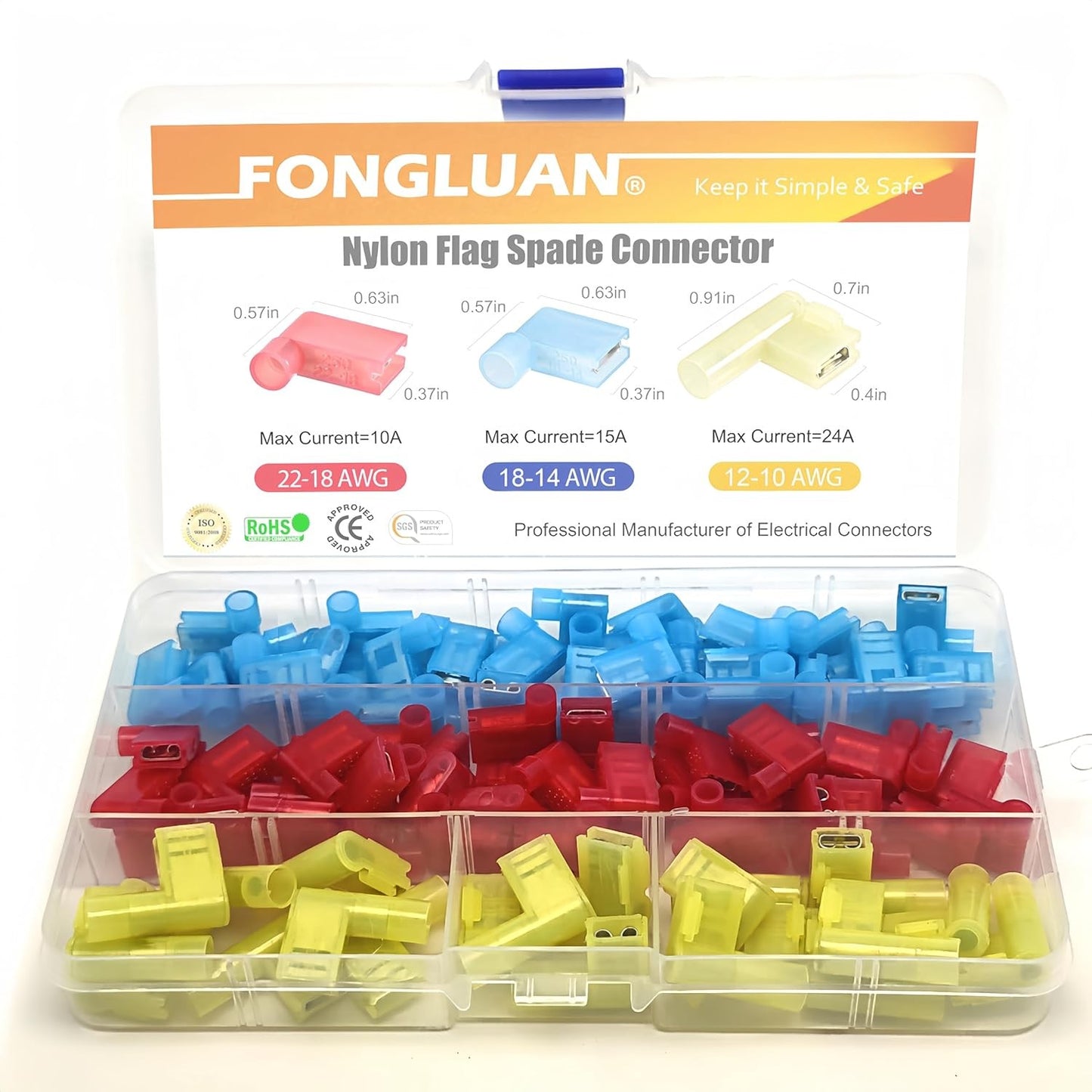

• [ PACKAGE INCLUDED ] - Nylon Flag Spade Quick Disconnects Female Wire Connector 24-10 AWG 90 Degree Electrical Crimp Wire Terminals includes 24-18AWG 40PCS, 18-14AWG 40PCS, 12-10AWG 20PCS packed in a plastic box.

Product Details:

• Product Dimensions : 6.69 x 3.94 x 0.91 inches; 5.93 ounces
• Item model number : FL-XXX
• Manufacturer : FONLUN
• Country of Origin : China
• Connector Type: Spade
• Contact Material: Copper
• Insulation Material: Nylon
• Terminal: Flag Terminal
• Material: Copper
