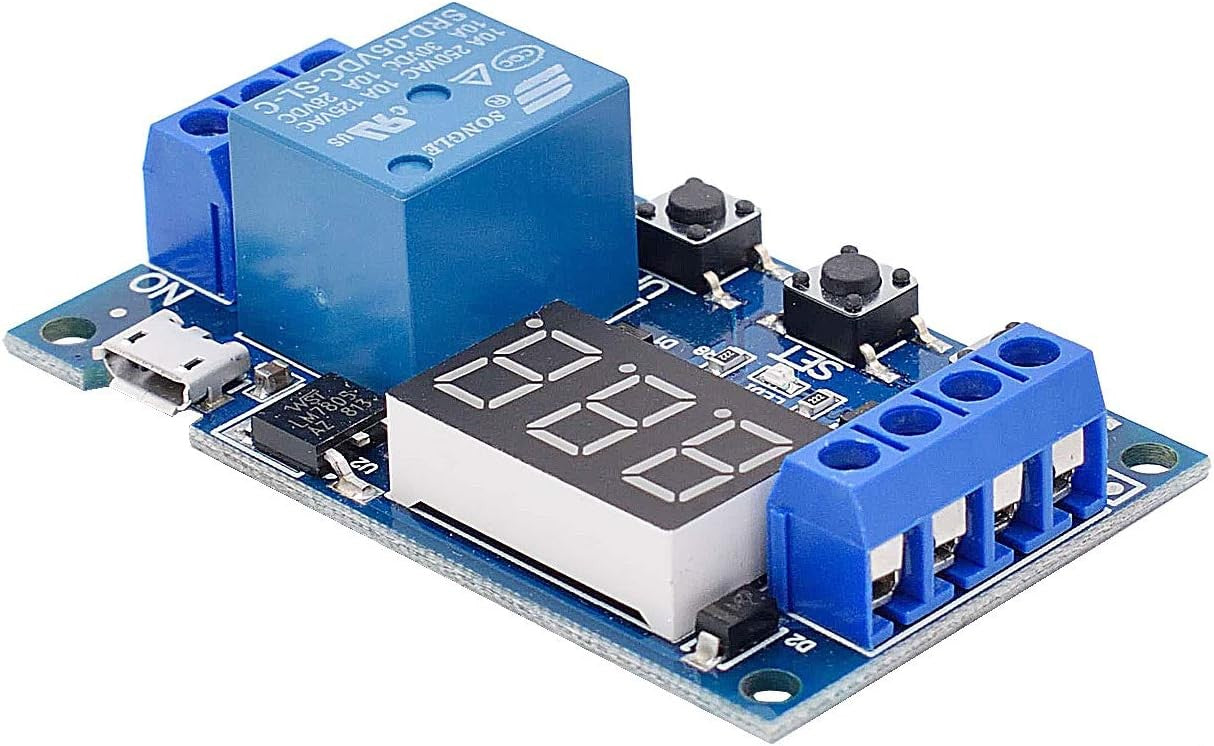

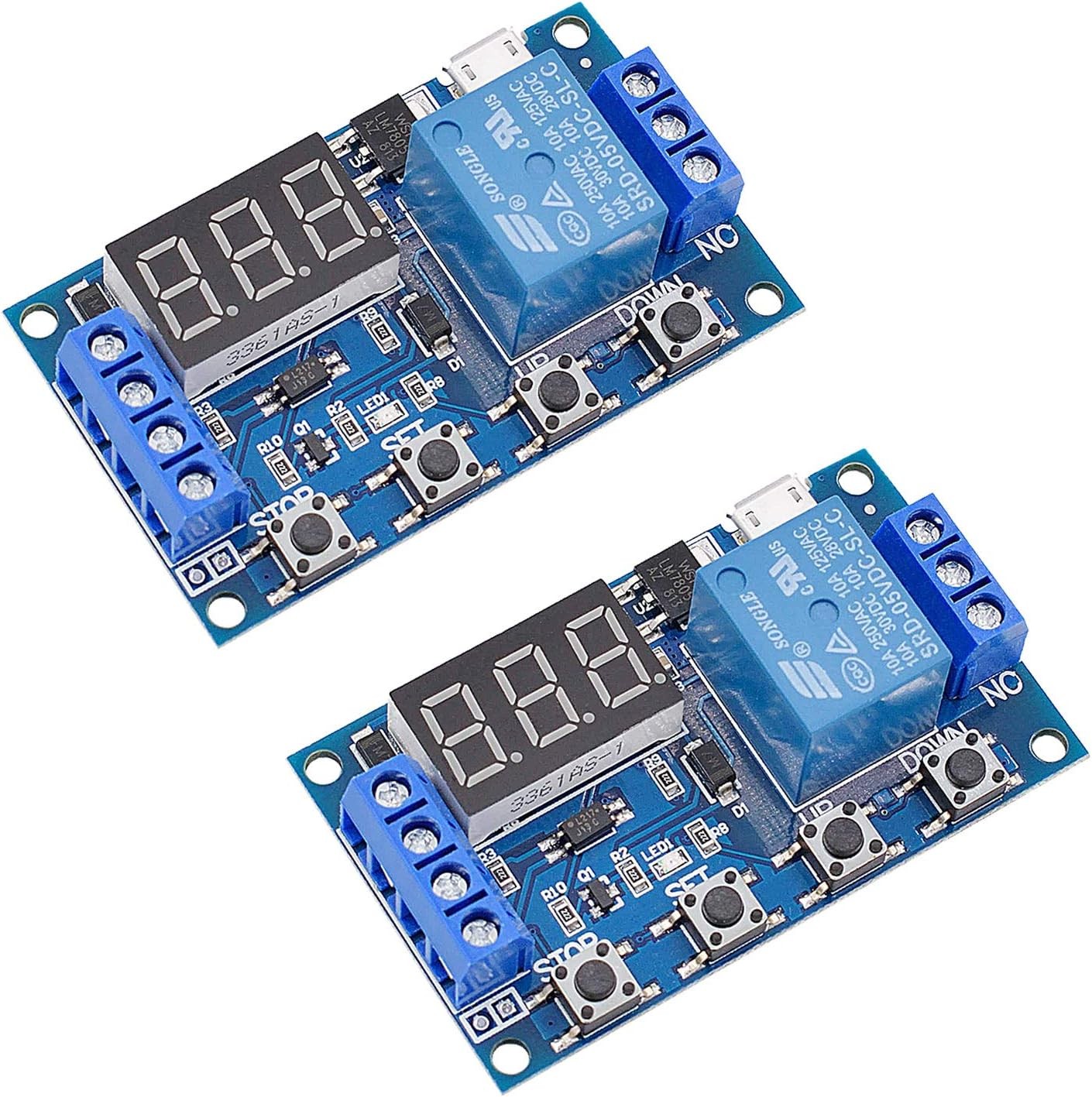

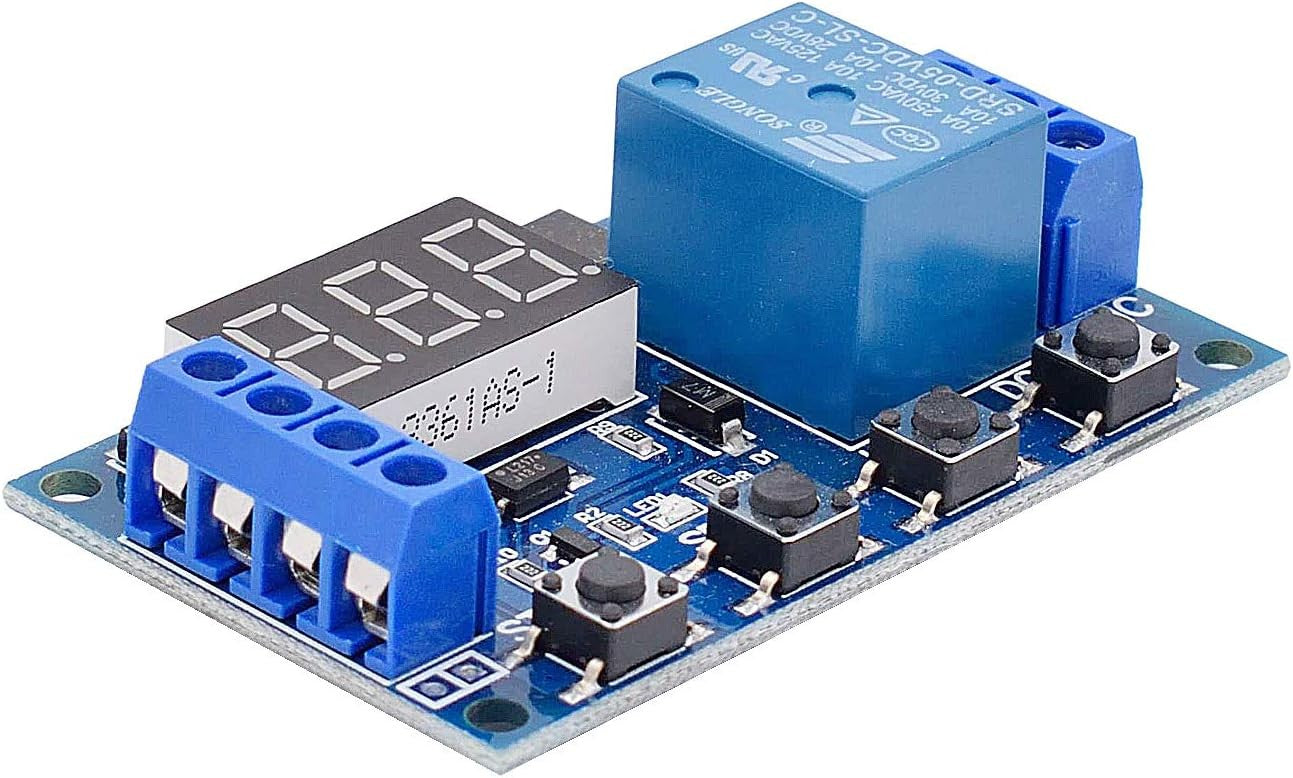

[2 Pack] DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LED Display / 5V Micro USB, Smart Home Controller

Description

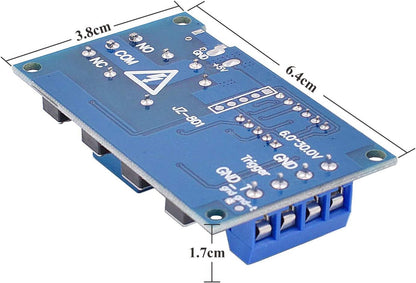

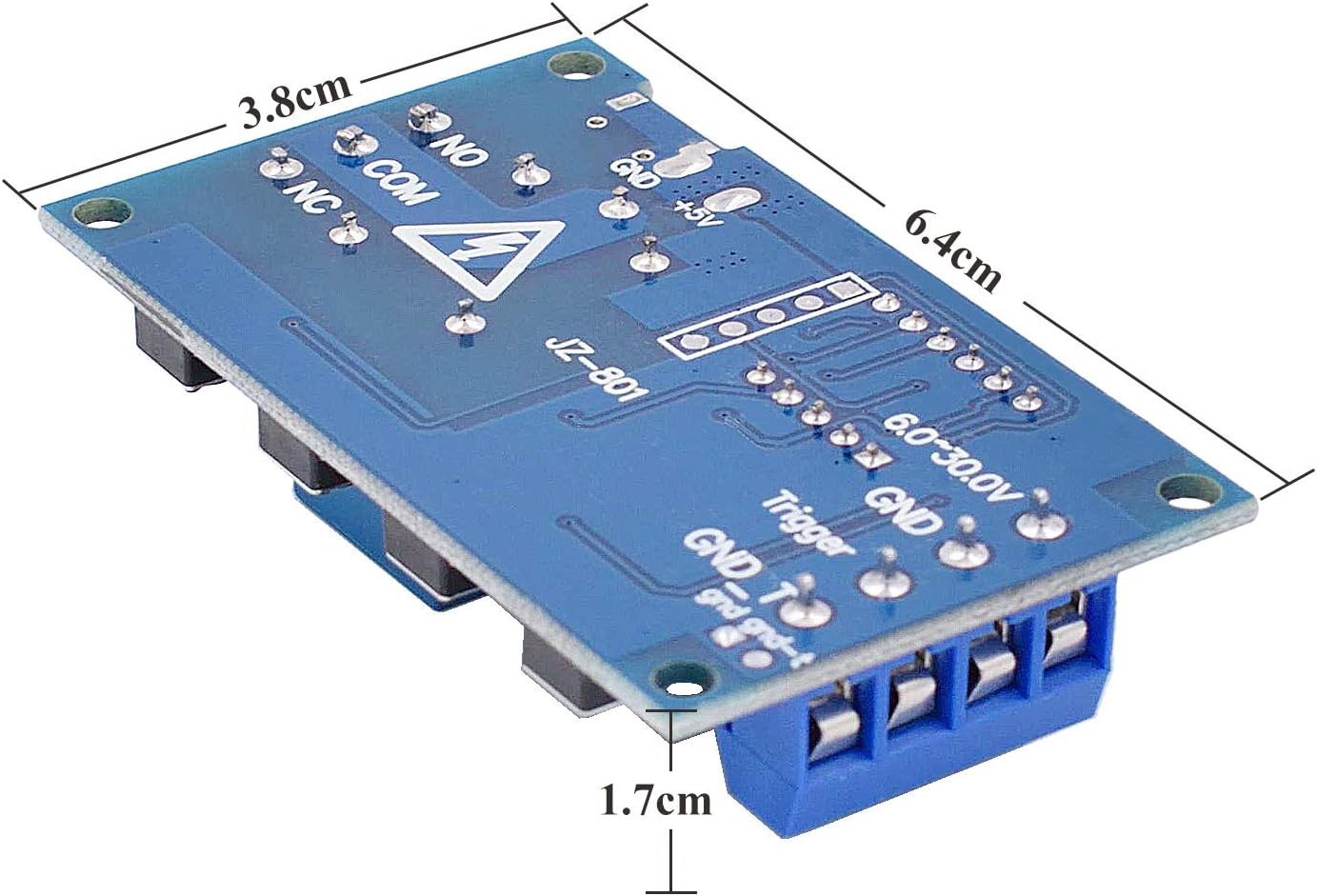

The multifunctional relay control module is designed for people with different timing and control needs. It's perfect for many applications from hobby to industrial controls. Specifications: Operating voltage: DC 6V - 30V, supporting micro USB 5V power supply Operating current: 50mA, static current: 20mA Working temperature: -20—60℃ NO maximum load: < AC 250V/10A, < DC 30V/10A Size: 6.4*3.8*1.7cm Operation Modes: P1: Upon signal is triggered(application of input voltage), the relay remains on for OP time, then turn off. Operate within the OP period as follows. - P1.1: Signal being re-triggered is ignored - P1.2: Signal being re-triggered to reclock - P1.3: Signal being re-triggered to reset, the relay contact disconnected, stop timing P1.4 (random mode): The relay conducts OP time only once when power on. P2.1 ( or P2): Feed trigger signal, the relay remains off for CL time, then conducts OP time. After timing, the relay turn off. P2.2 (random mode): Feed trigger signal, the relay remains off for CL time, then conducts OP time. Signal being re-triggered, the relay remains off for CL time and conducts OP time again. P3.1: Feed trigger signal, the relay conducted OP time, the relay remains off for CL time, then repeat above actions, re-trigger signal within the timing cycle, the relay contact disconnected, stop timing. The circuit times(LOP) can be set. P3.2: No need to trigger signal when power on, the relay conducts OP time, then the relay remains off for CL time, then repeat above circuit times(LOP) can be set. P4: The function of remaining signal: the timing will be reset upon signal is triggered, relay contacts stay connected. when no signal, turn off the relay after timing OP. During the period of timing, the timing will be reset upon signal is re-triggered. Timing Range: 0.1 seconds (min.) ~ 999 minutes (max.) continuously adjustable How to choose a timing range: Upon setting the parameter value in the mode selection interface, select the timing range by short pressing the STOP button. XXX. Decimal point at single digit, timing range = 1 second ~ 999 seconds. XX.X Decimal point at tens digit. timing range = 0.1 second ~ 99.9 seconds X.X.X. All the decimal points appear, timing range = 1 minute ~ 999 minutes. For example, if you want to set the OP to 3.2 seconds, then move the decimal point to the tenth digit, the digital tube displays 03.2 Parameter explanation: OP = on time, CL = off time, LOP = cycle times (1 - 999 times, "---" stands for infinite cycles) These parameters are independent each other, while they are shared by all operation modes. For example, when the OP(on-time) is set to 5 seconds in P1.1, the user wants P1.2 mode, then enter P1.2 to set the corresponding parameters, OP will also be 5 seconds. In the main interface (digital tube displays 000), short press SET button, it will show OP (CL, LOP) and the corresponding time XXX - If there is only OP (such as mode P1.1, P1.2, P1.3) time in the mode, then short press SET button will only display OP and the corresponding time. - If there are OP, CL, LOP in the mode (such as mode P3.1, P3.2), short press SET button will display OP and corresponding time, CL and corresponding time, LOP and corresponding times.

Features:

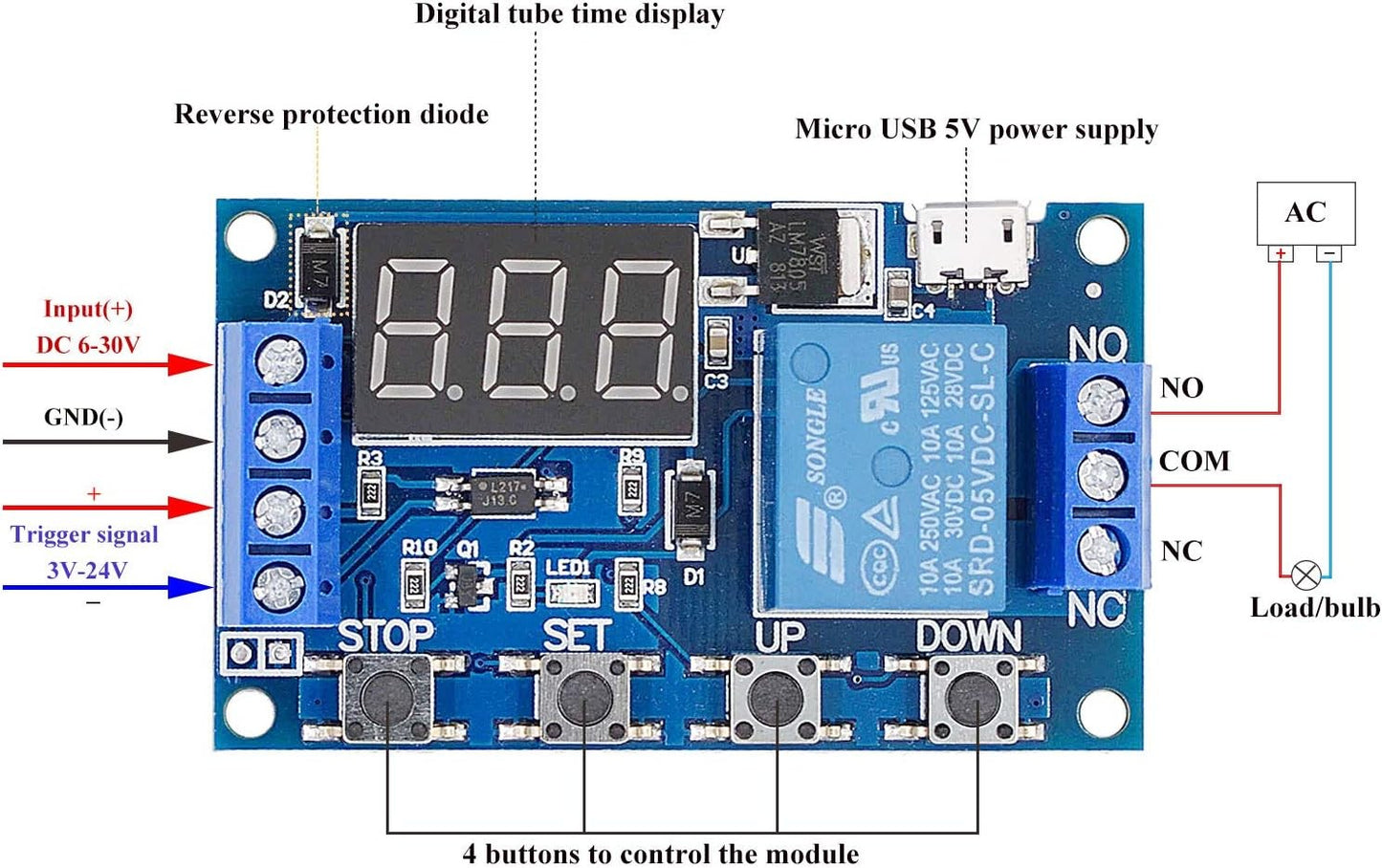

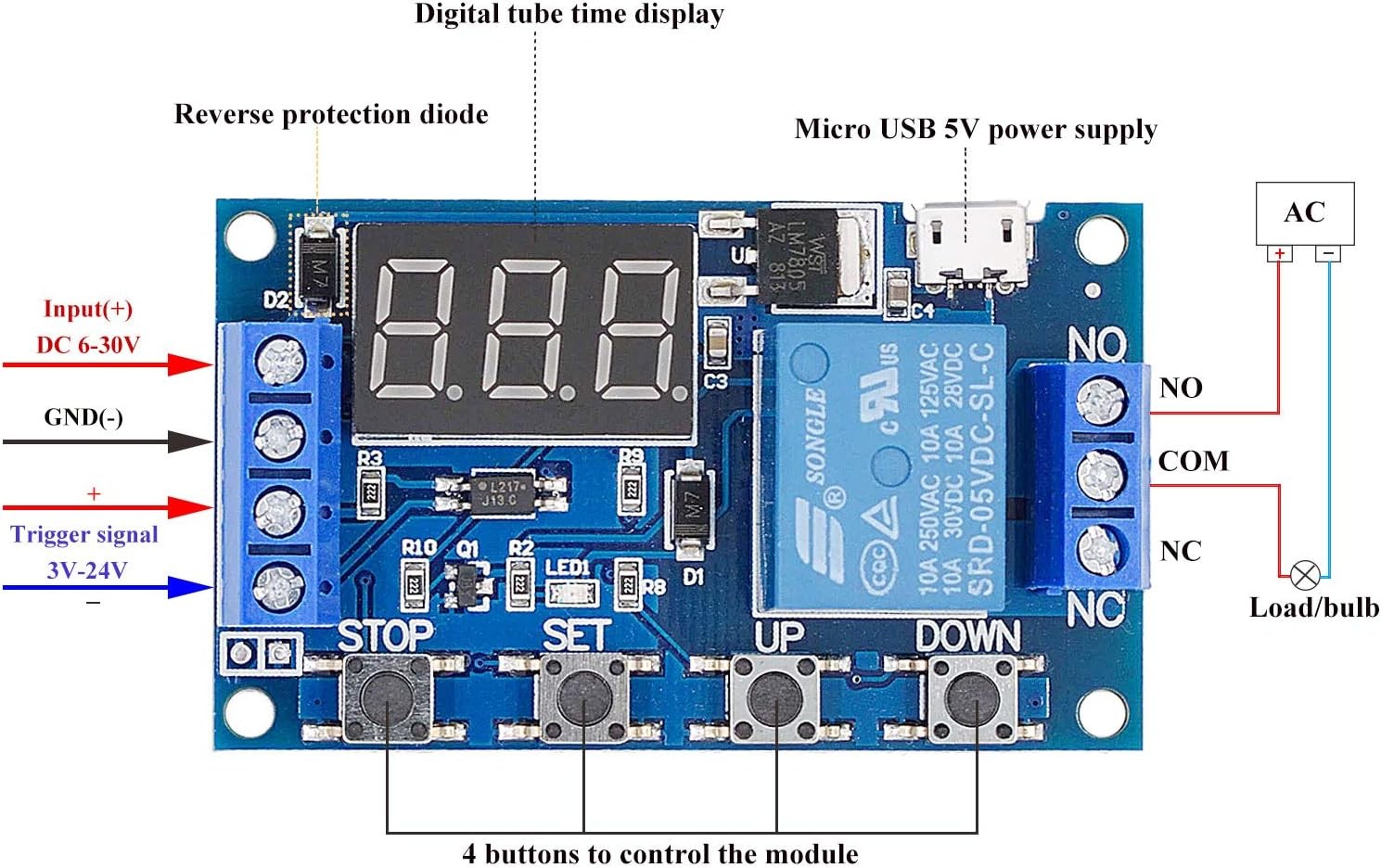

• 【Multifunction Timer Relay】Programmable delay modes to control the relay timings, widely used at smart home, industrial control, automatic irrigation, indoor ventilation, protection equipment etc.

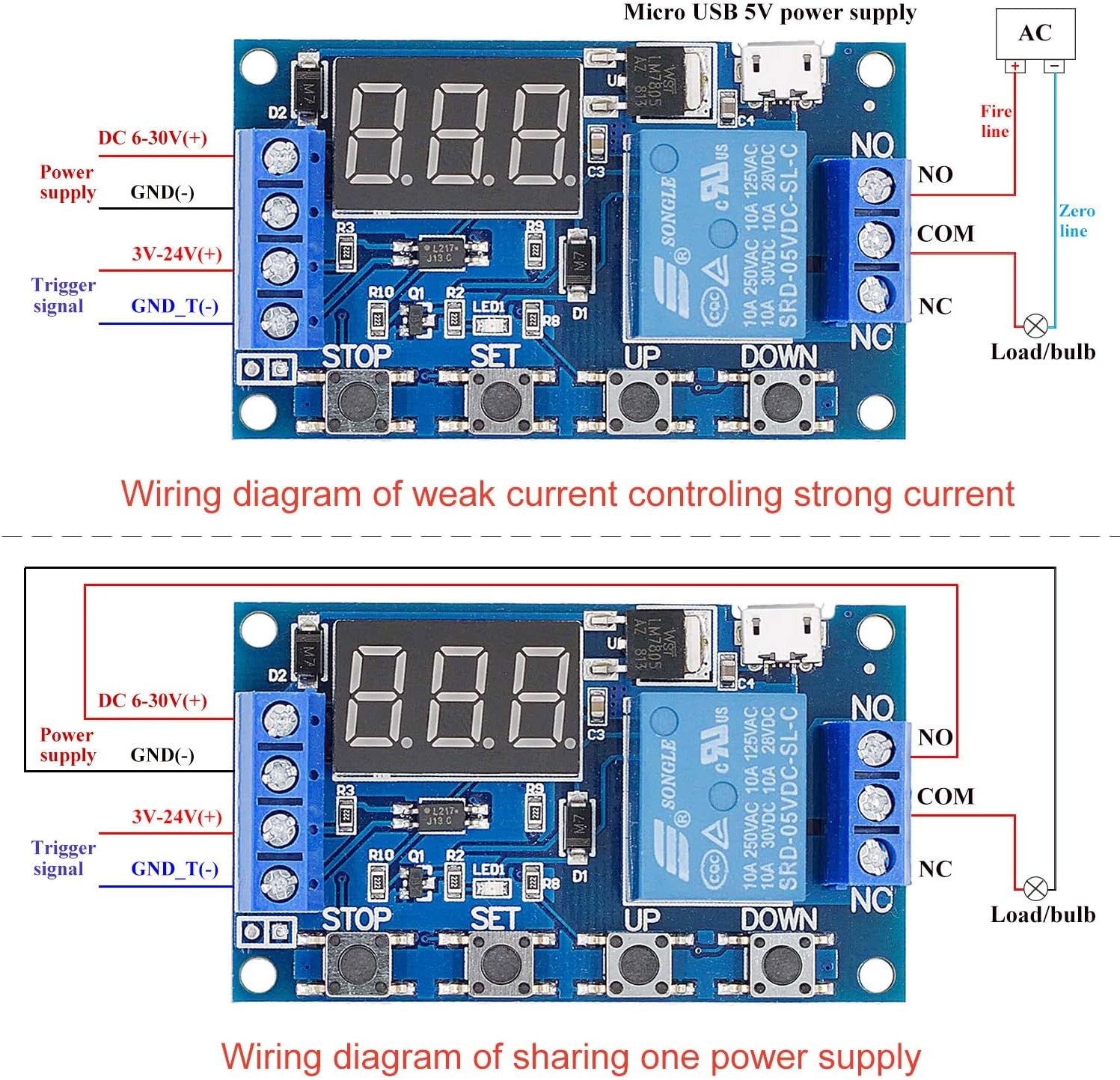

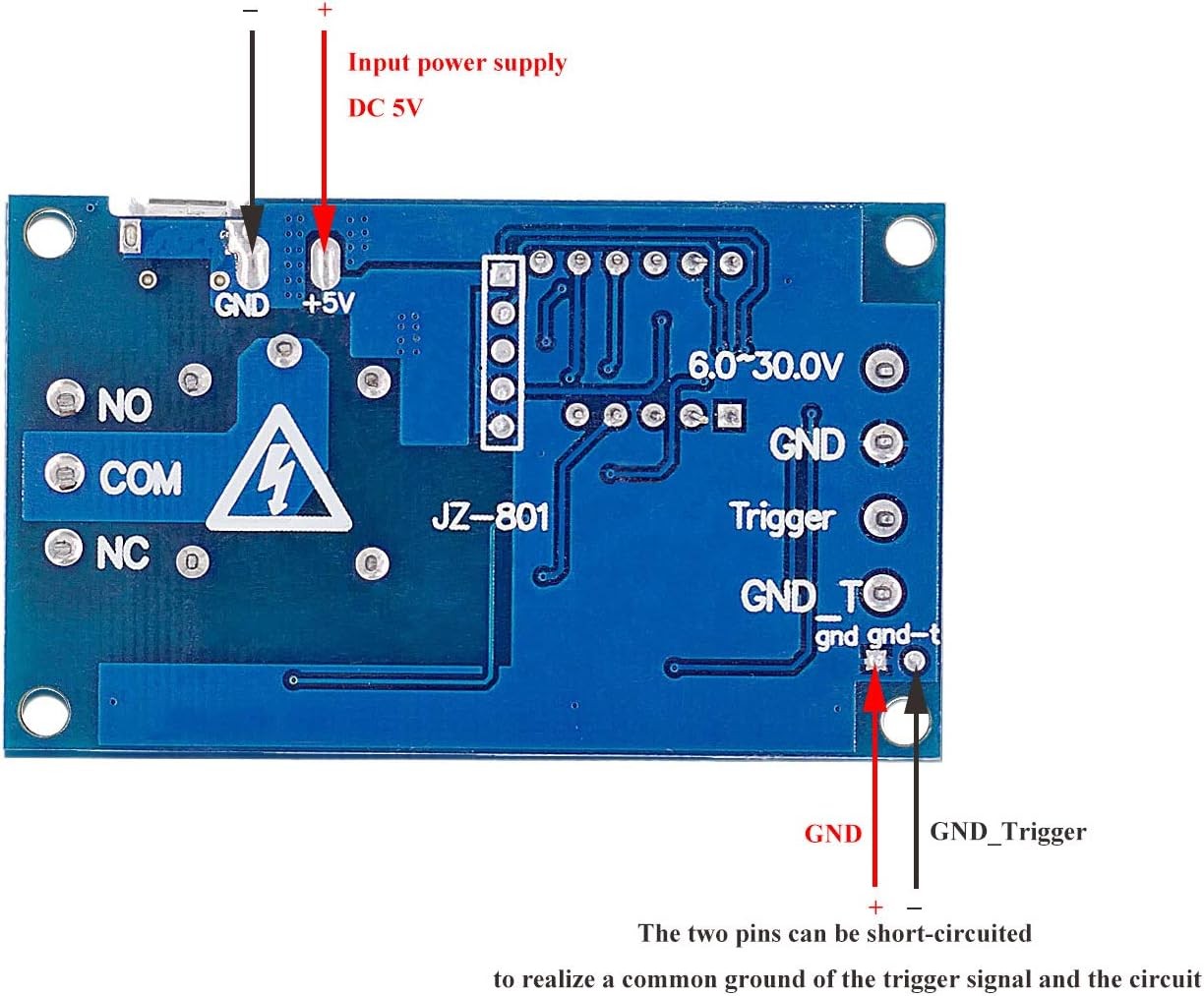

• 【Load Range】Operating voltage: DC 6V - 30V, support micro USB 5V power supply. High level trigger: 3V - 24V. NO(Normally open) maximum load < AC 250V/10A, < DC 30V/10A. Timing range: 0.1s ~ 999mins (continuously adjustable).
• 【Reverse Protection】Built-in a diode to provide protection against accidental reverse polarity for the circuits.
• 【Sleep Mode】If no operation within 5 minutes, the digital tube of the relay board will turn off automatically. Pressing any button can wake it up.
• 【Parameter Setting】OP(conduction time) / CL(off time) / LOP(circuit times) can be set individually, and the parameters are mutually independent. All parameters are permanently saved once set. The functions and parameters can be reviewed or changed at a later time.

Product Details:

• Connector Type: Usb
• Contact Material: Silver Nickel
• Contact Type: Normally Open
• Current Rating: 10 Amps
• Mounting Type: PCB Mount
• Brand: Valefod
• Operation Mode: Automatic
• Wattage: 300 watts
• Coil Voltage: 6 Volts (DC)
• Contact Current Rating: 1E+1 Amps
• Maximum Switching Current: 10 Amps
• Maximum Switching Voltage: 30 Volts
• Minimum Switching Voltage: 6 Volts (DC)
• Product Dimensions: 2.52 x 0.67 x 1.5 inches
• Item Weight: 2.39 ounces
• Manufacturer: Valefod
• Item model number: VA-0190
