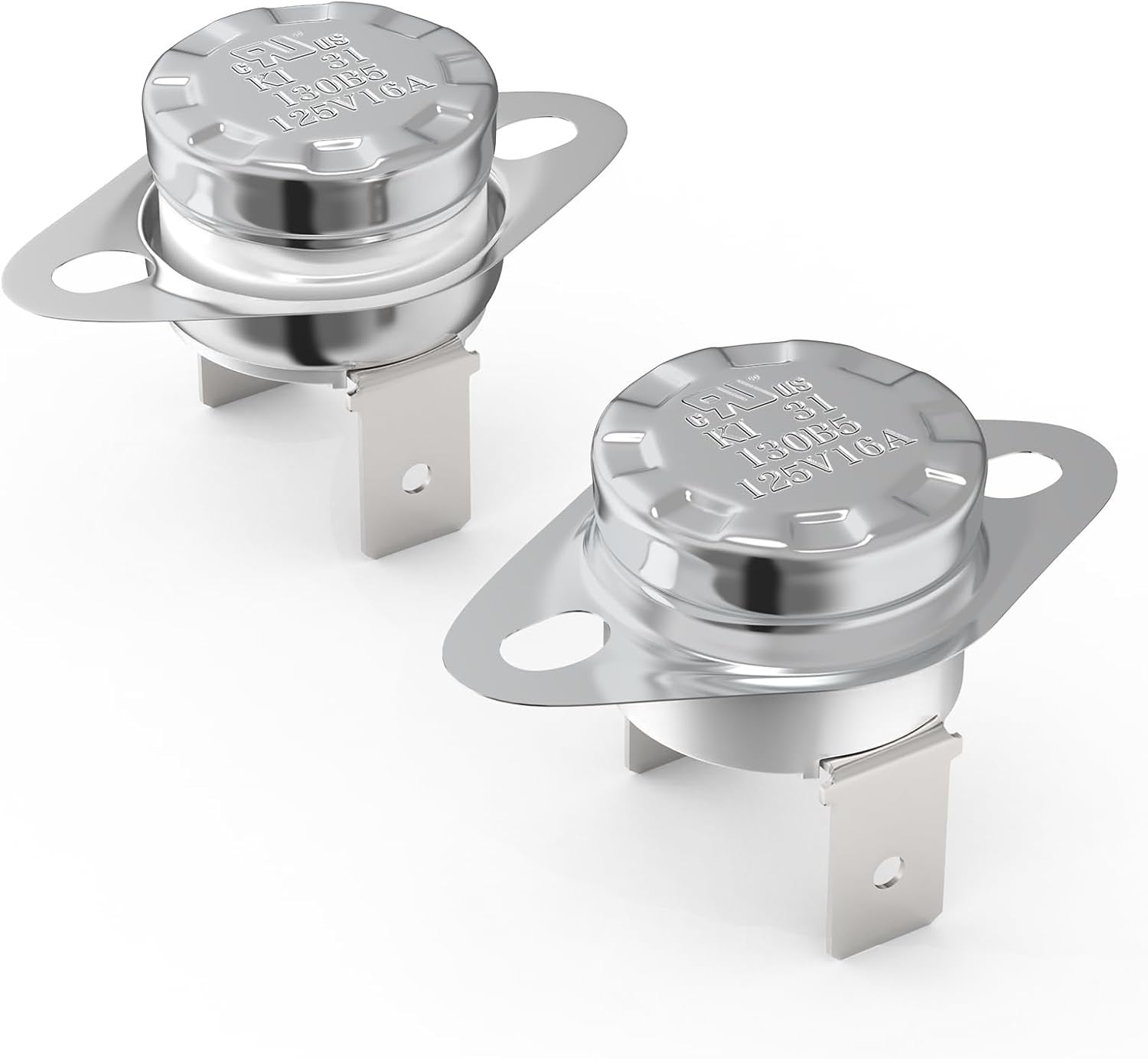

UL/CUL KSD301 Thermostat 125V 16A Thermal 130°C/266°F, White

Description

Features:

• 1.Reliable Quality : The overload thermostat switch are UL/CUL approval（E527363) . Adopt high-quality material.Precise temperature control and high sensitivity,stable performance with long-lasting;
• 2.Wide Operating Voltage : KSD301 high limit thermostat work as well with AC or DC voltage, AC110V/120V/125V/16A;250V10A/250V16A;DC12V/24V/15A;48V/10A;
• 3.Action Type: N.C (Normally Closed): The original state of the thermal cutoff switch contact is normally close. Circuit Off at 130°C/266°F (±5°C) and On at 110°C/230°F(±5°C); It's auto reset;

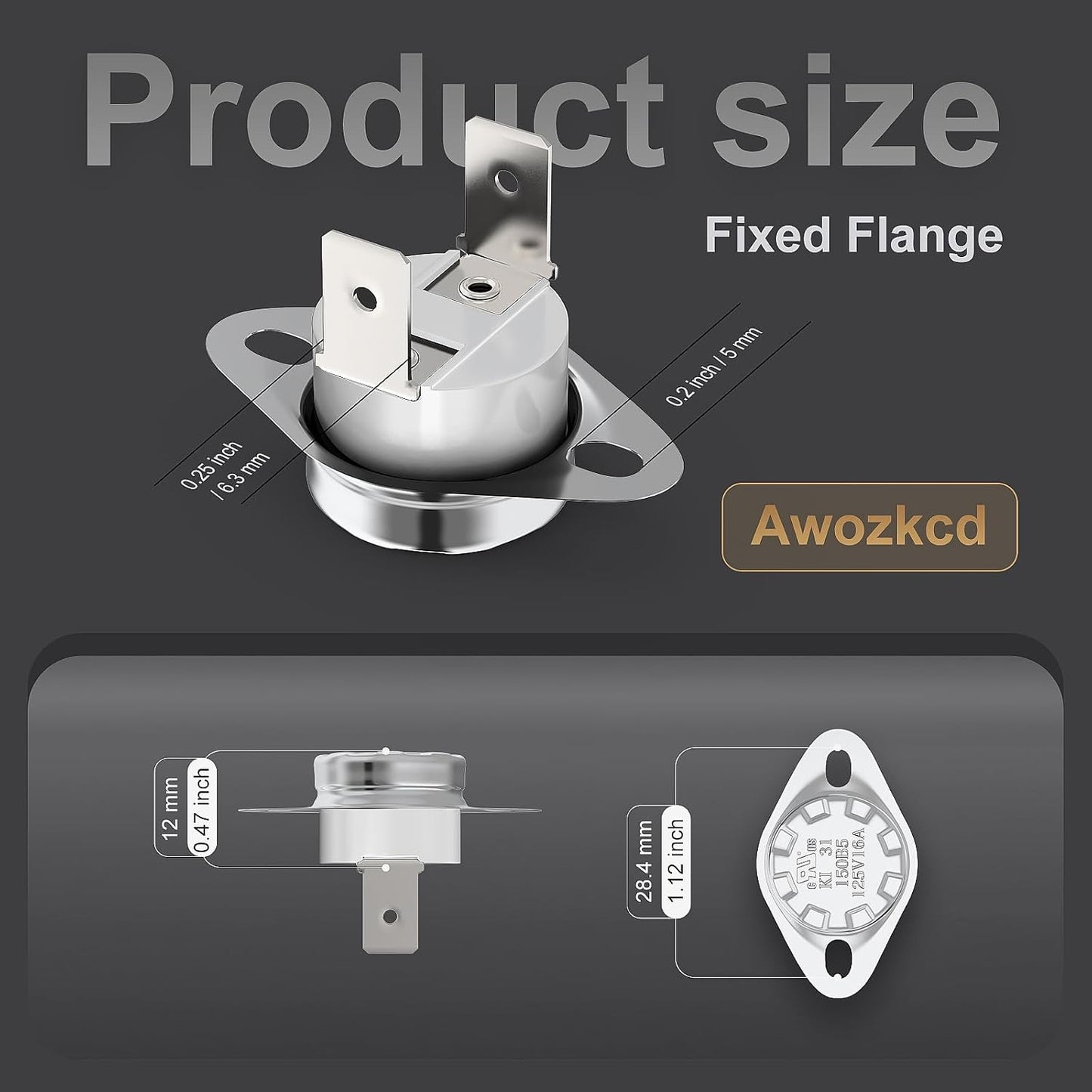

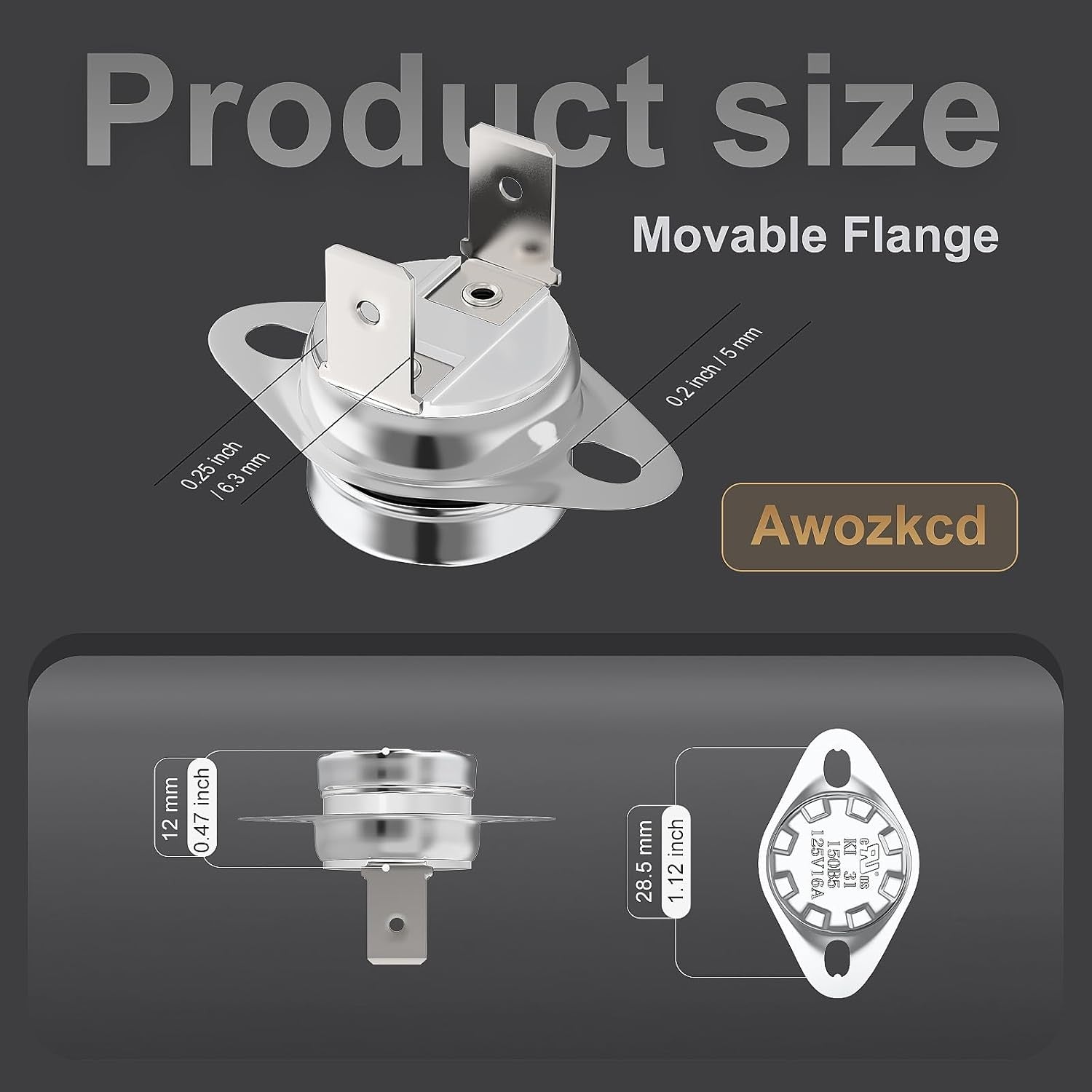

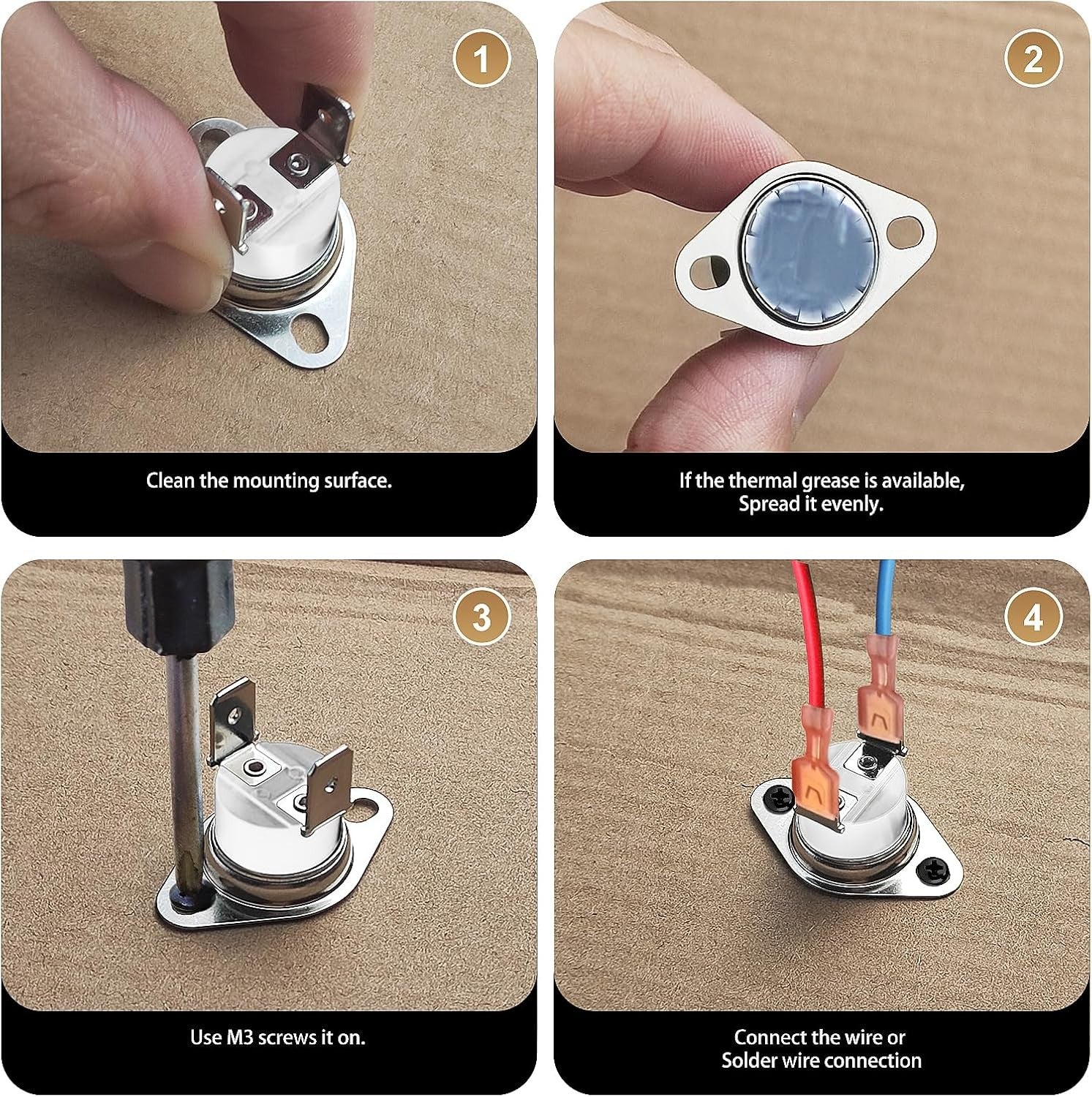

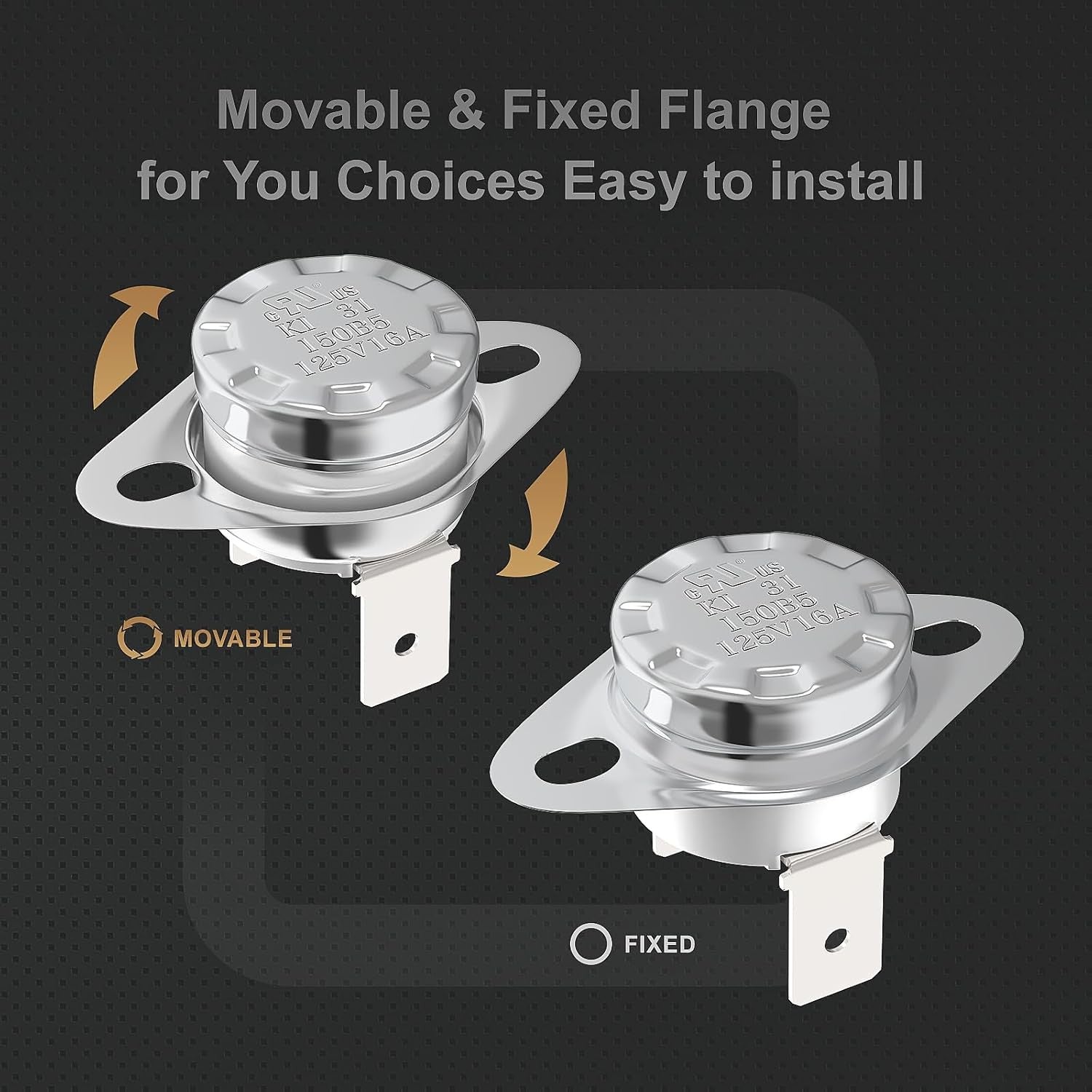

• 4.Easy to Install and Save Money: Thermostat temperature switch, equipped with removable and fixed flanges, is easy to install. Enjoy the fun of DIY, you can do it yourself.
• 5.Wide Applications: Replaces most fixed disc thermostats on heating equipment and appliances. Such as: coffee machine, toaster, microwave oven, electric oven, hanging ironing machine, heater, air fryer, etc

Product Details:

• Operation Mode: ON-OFF-ON
• Current Rating: 16 Amps
• Operating Voltage: 125 Volts
• Contact Type: Normally Closed
• Connector Type: 6.3mm Bent Terminal
• Brand: Awozkcd
• Terminal: Solder Or Screw
• Item dimensions L x W x H: 1.26 x 0.79 x 0.83 inches
• Circuit Type: 1-way
• Contact Material: Aluminum
• Insulation Resistance: 5.36 Ohm
• International Protection Rating: IP00
• Specification Met: Ul Cul Tuv Kc Ce Cb
• Lower Temperature Rating: 125 Degrees Celsius
• Upper Temperature Rating: 135 Degrees Celsius

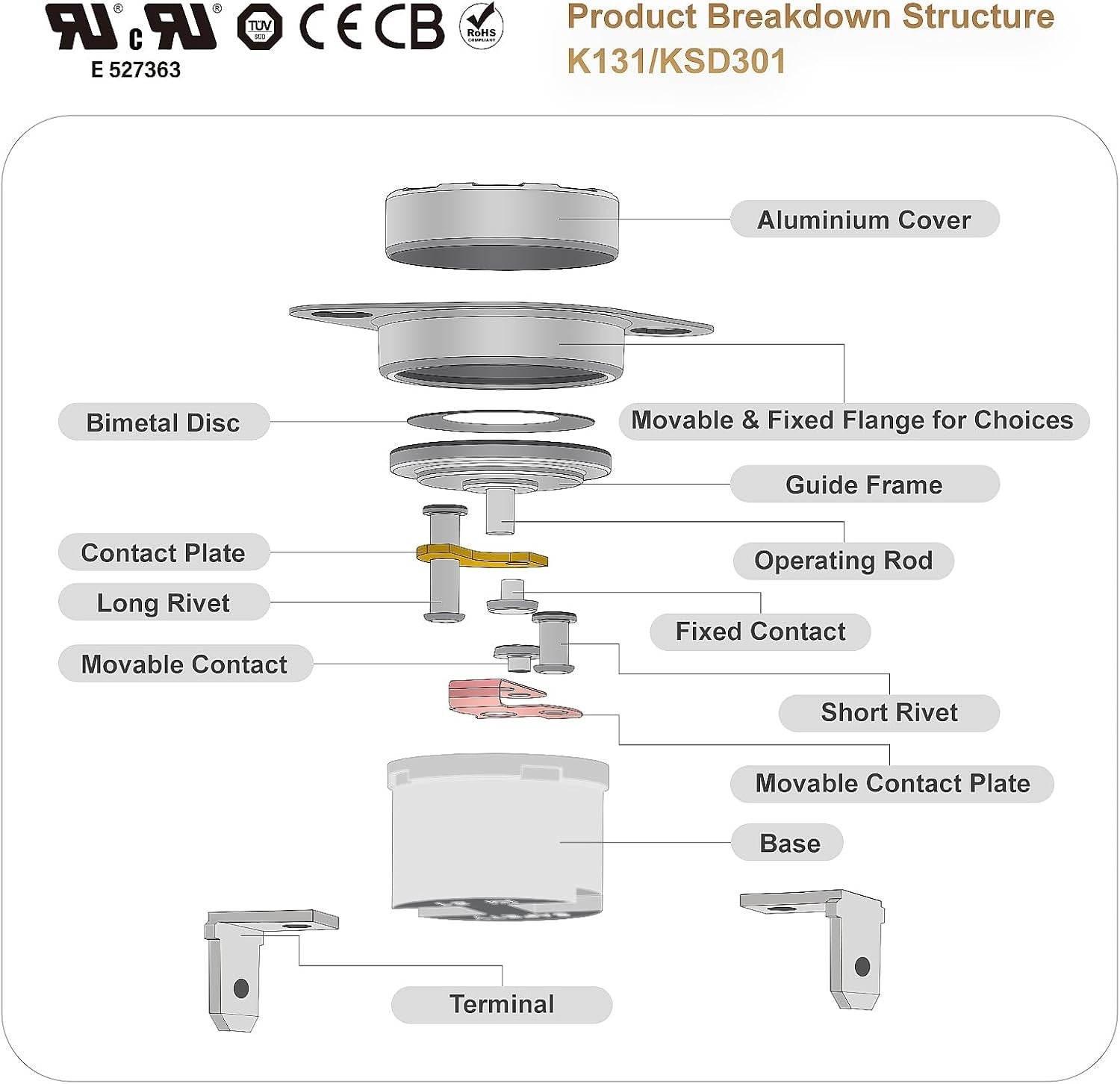

• Controller Type: Temperature sense -Bimetallic sheet control-Snap action
• Control Method: Touch
• Connectivity Protocol: sereis connection
• Color: White
• Wattage: 2000 watts
• Manufacturer: DongGuan SAFETY Electronic SCI & Tech Co; Ltd
• Product Dimensions: 1.26 x 0.79 x 0.83 inches
• Item Weight: 0.8 ounces
• Country of Origin: China
• Item model number: KI31/KSD301
• MaterialMounting Type: CeramicScrew fixation
