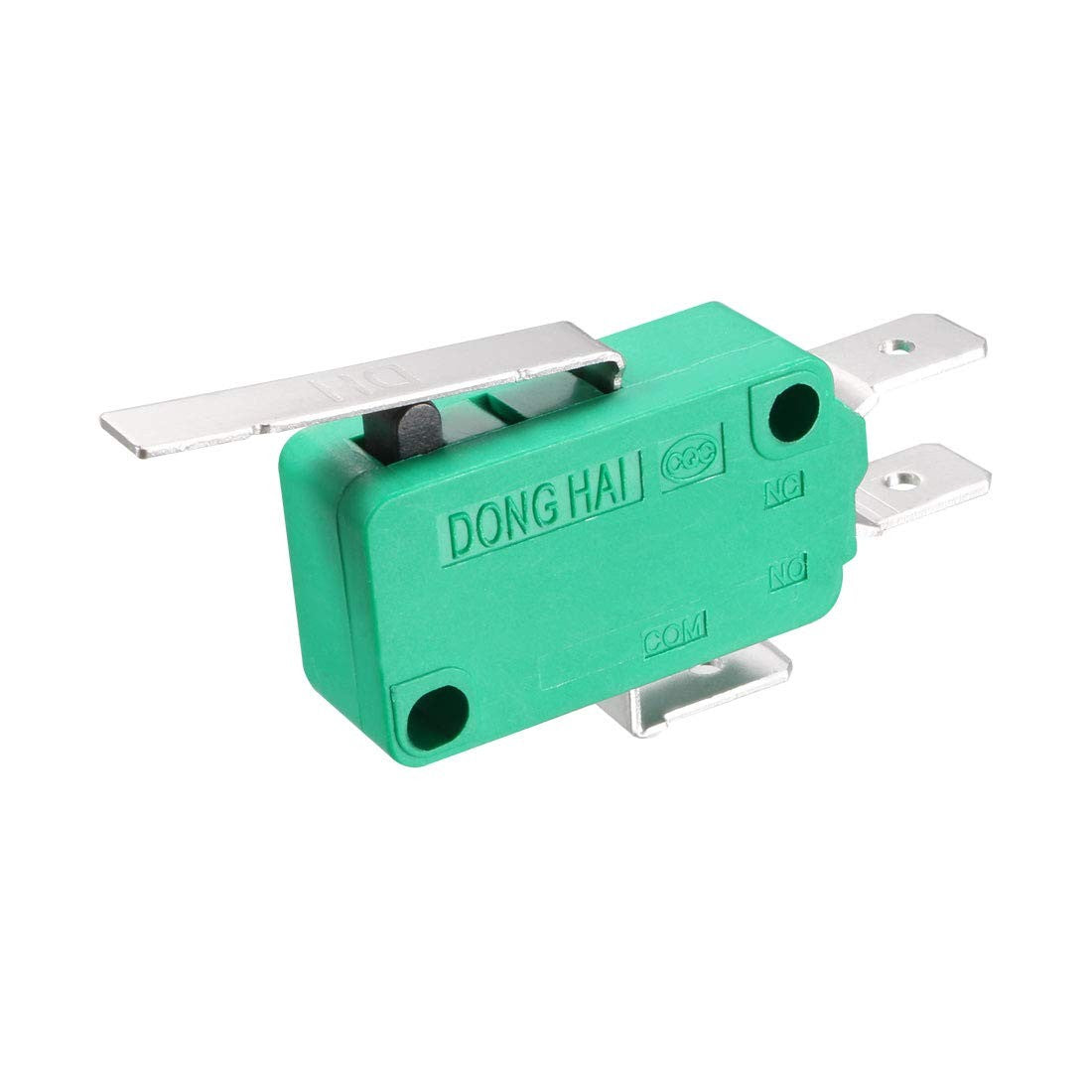

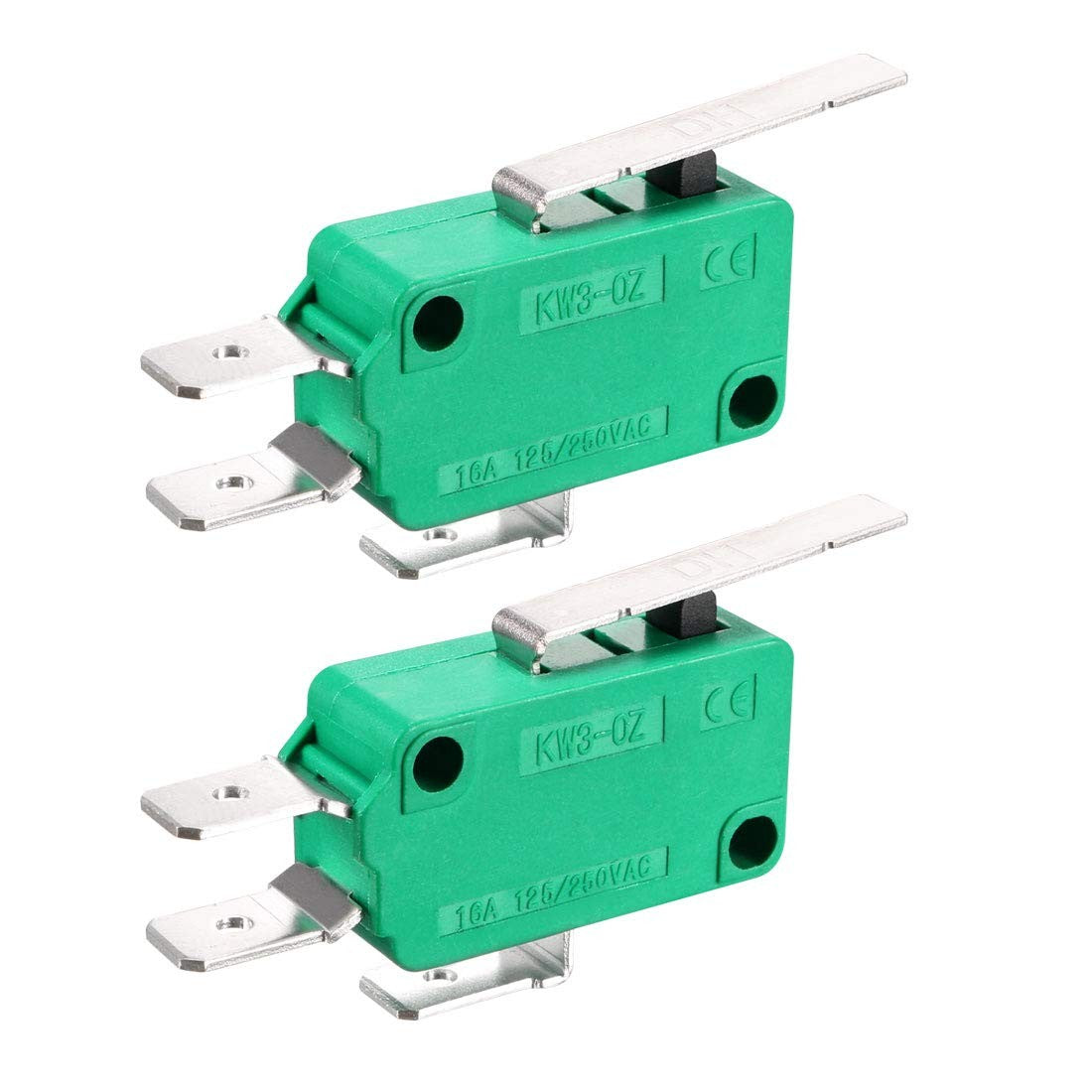

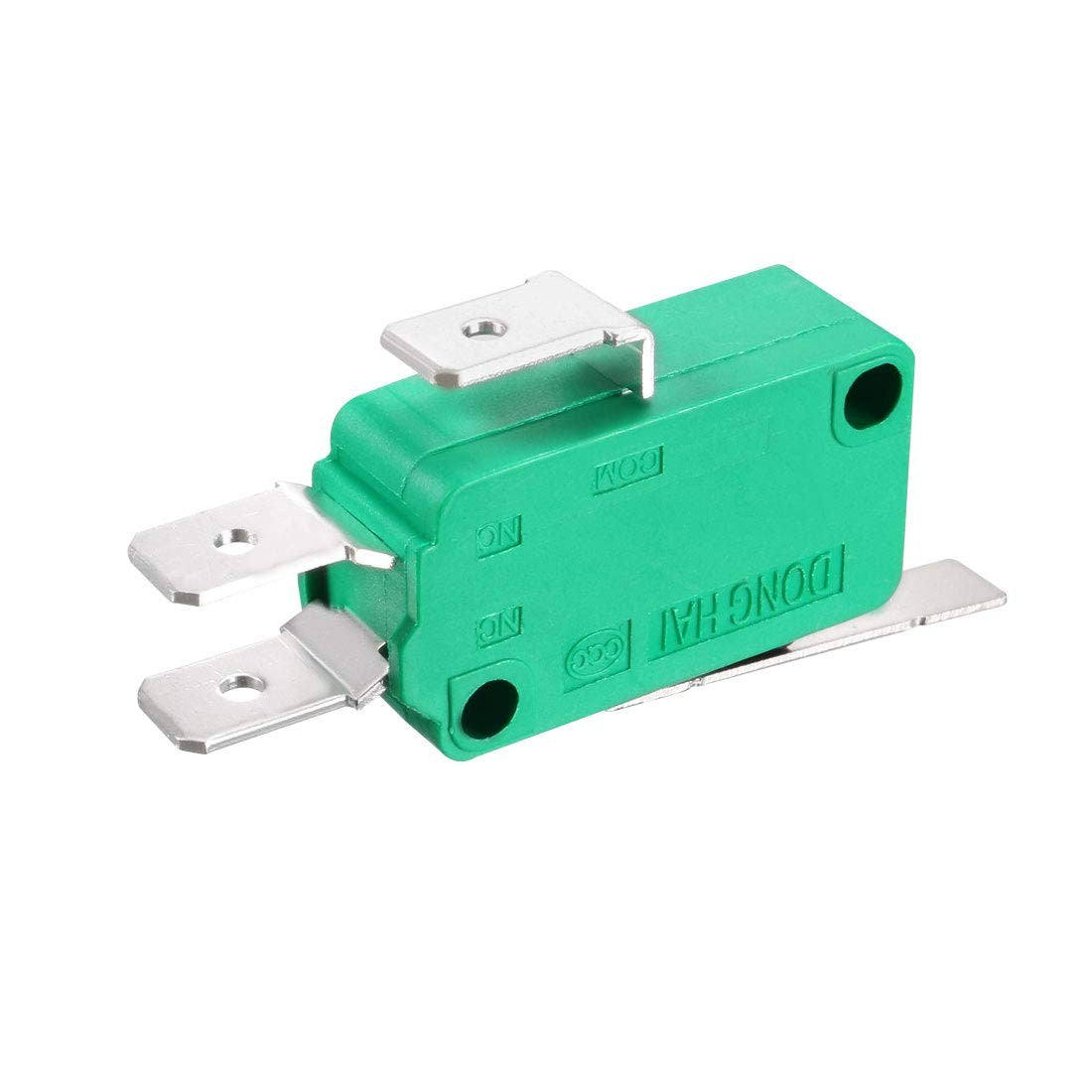

uxcell 2PCS KW3-OZ 16A 125/250VAC SPDT NO NC Hinge Lever Type Micro Limit Switches

Description

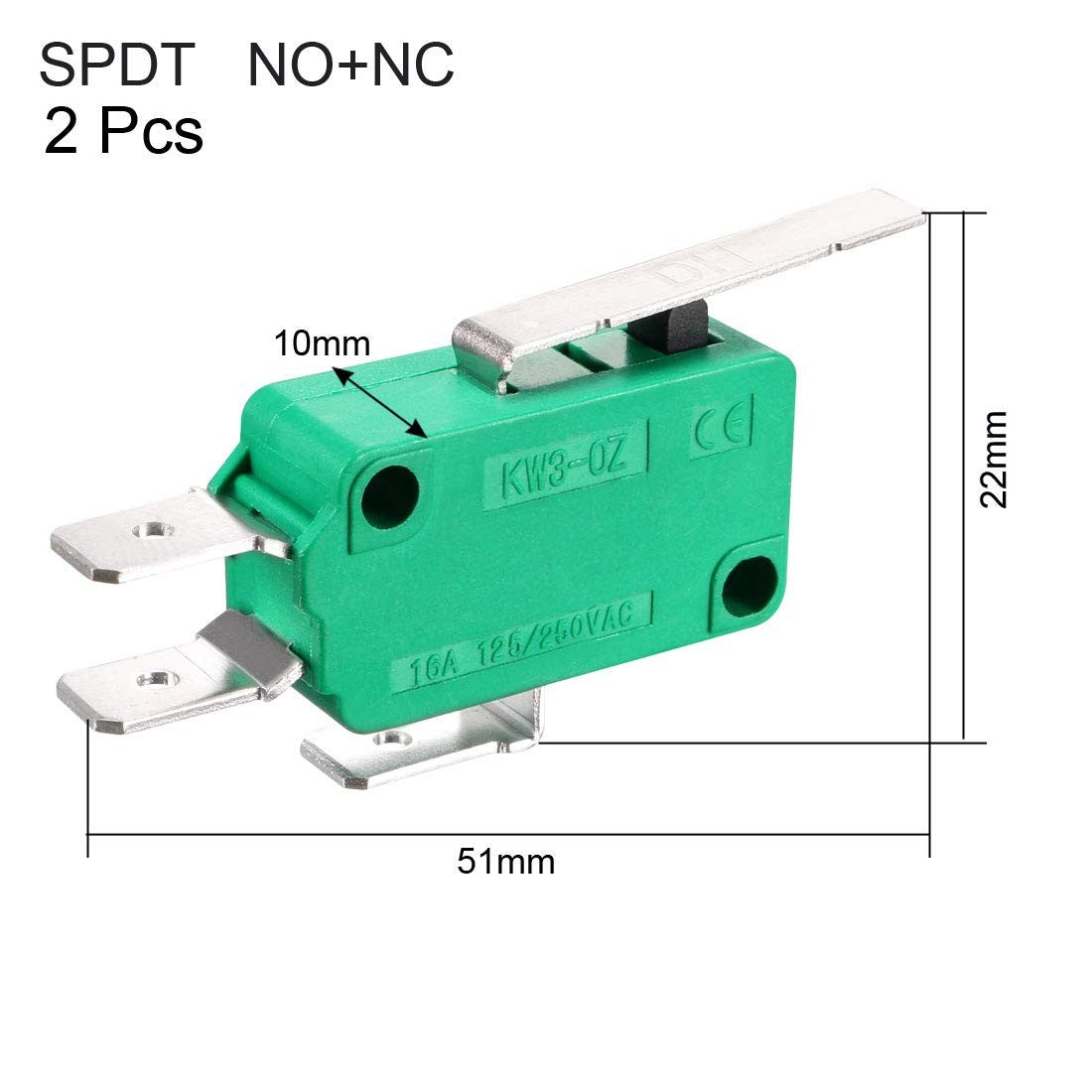

FeaturesAdopt thermosetting plastic or thermoplastic;Offers long service and operations life.Small contact gap, snap sction, high sensitivity and small operatng travelWidly used in appliance, elctronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool etc... SpecificationRating Load: 16A 125/250VACOperation speed: 0.1mm-1m/sContact resistance: 15m Ohm max. (initial)Insulation resistance: 100m Ohm min. (at DC500V)Dielectric strength: 1,000 VAC 50/60 Hz for 1minuteLife: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)Operating temperature: -25~+80°CContact Form: SPDT NO+NCPin number: 3Overall size: 51x22x10mm/2.01x0.87x0.39inch(L*W*H)Total weight: 15g Package Content2 x Microswitch

Features:

• Rating Load: 16A 125/250VAC. And the contact type is SPDT NO+NC
• 3 pins, applicable to AC DC control circuits.Reliable for years
• High precision design, use easily.Designed to control the movement of a mechanical part.
• IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
• Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...

Product Details:

• Product Dimensions : 2.76 x 1.97 x 1.97 inches; 1.45 ounces
• Item model number : a18113000ux0392
• Manufacturer : uxcell
• Operation Mode: Automatic
• Current Rating: 16 Amps
• Operating Voltage: 250 Volts
• Contact Type: Normally Open, Normally Closed
• Connector Type: Crimp
• Brand: uxcell
• Terminal: Pins
• Item dimensions L x W x H: 2.76 x 1.97 x 1.97 inches
• Circuit Type: Series and Parallel
• Mounting Type: Panel Mount
• Switch TypeMaterial: Limit Switch, Temperature SwitchPlastic
