uxcell 3-in-1 Furniture M6, 13 x 10mm, M6 x 25mm, 10.7 x 5.5 x Silver

Description

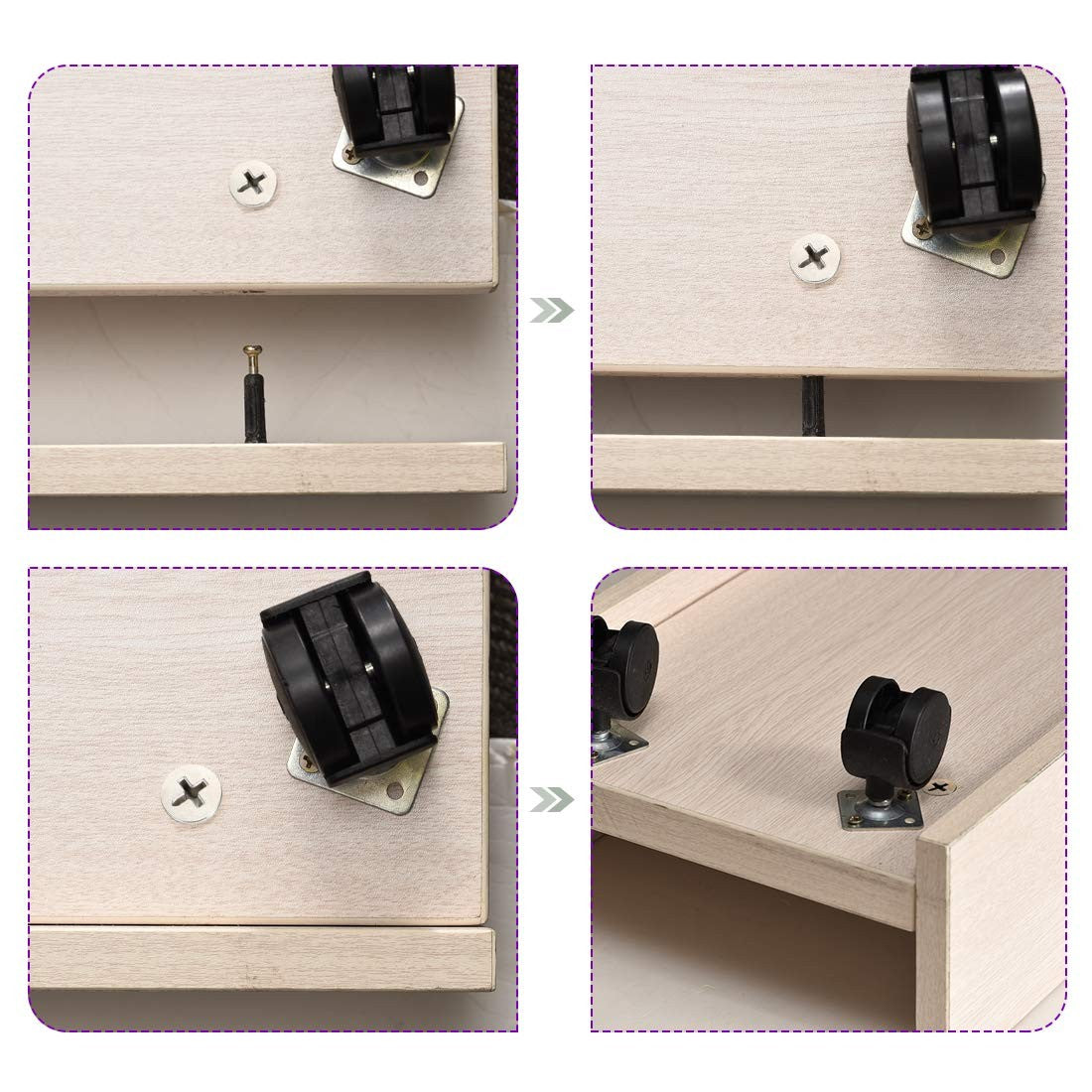

Installation Steps 1. According to the actual installation dimensions of each component, make the corresponding mounting holes in advance, install the three-in-one components. Finally put in the cam lock nut to ensure that the side groove of the nut matches the screw cap of the connecting rod to lock the nut. The surface of the cross groove is flush with the surface of the board, without protruding the board surface. 2. After confirming that all accessories and planks are in the proper position, use the cross screwdriver to follow the + and-signs on the surface of the eccentric wheel. If there is no mark, rotate the eccentric wheel according to the actual situation, until it rotates about 90 degrees (1/4 circle). The installation is complete. If more torque is applied, it may break the nut. The installation structure is shown in the figure:

Features:

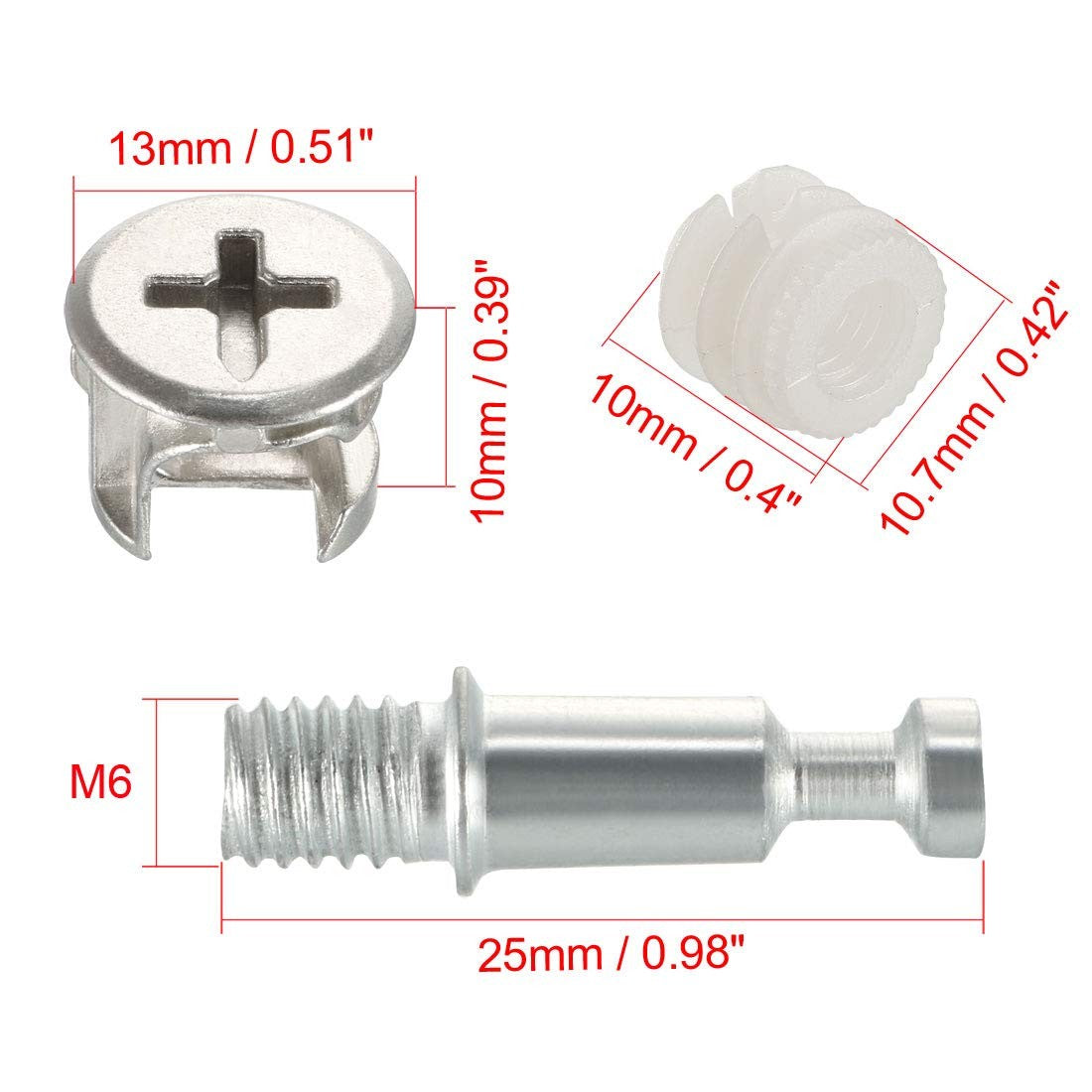

• Cam Fittings Size: 13 x 10mm(D*H); Dowel Size: M6 x 25mm(D*L); Pre-inserted Nut Size: 10.7 x 5.5 x 10mm(OD*ID*H)
• Application: Suitable for all kinds of furniture with chipboard and wood board combination. Office furniture, cabinets, bookshelves, wardrobes, wooden double beds, and other wood-to-wood connection and fixation.

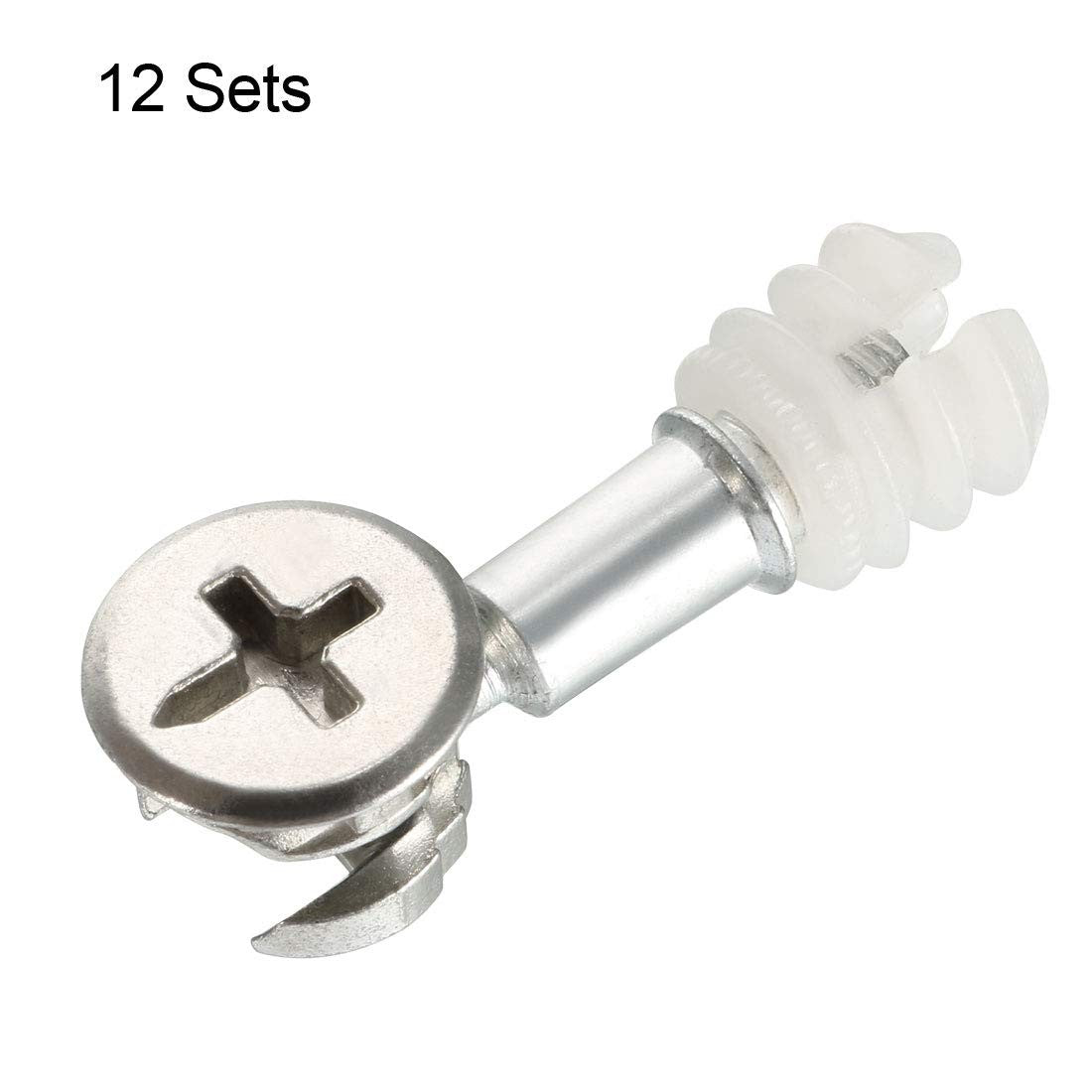

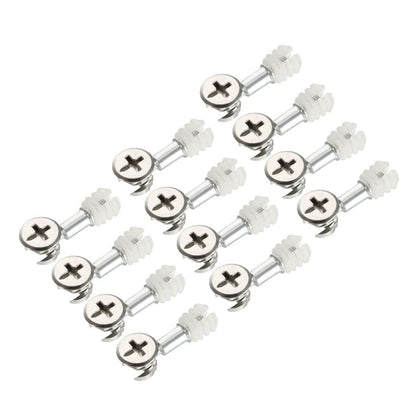

• Package Details: 12 sets of furniture connection accessories. Each set includes a fitting cam lock nut, a positioning pin connecting rod bolt, and a pre-inserted nut. According to the external dimensions of each component, making holes and combination installation is carried out.
• Note: When locking, the cam lock nut can be 90 degrees +/- 5 degrees, and it cannot be locked with too much force, which may cause the eccentric wheel assembly to be unusable.
• Features: A combination of various types of furniture suitable for installation and quick disassembly, especially when the fixing effect of non-solid wood fasteners is not enough, the three-in-one eccentric cam connection assembly is good.

Product Details:

• Product Dimensions : 5.51 x 3.94 x 1.18 inches; 3.99 ounces
• Item model number : a18082400ux0022
• Manufacturer : uxcell
• Size: M6, 13 x 10mm, M6 x 25mm, 10.7 x 5.5 x 10mm
• Color: Silver
• Material: Plastic
• Brand: uxcell
• Item dimensions L x W x H: 5.51 x 3.94 x 1.18 inches
