uxcell 4 Pcs Tr8x4 T8 POM Anti Backlash Spring Loaded Nut, Elimination

Description

Description:[Material] The anti-backlash spring loaded nut is made of POM material, which has high strength and hardness, is very wear-resistant, has a high load-bearing capacity, has excellent corrosion resistance and heat resistance, and can be used for a long time.[Advantage] Elimination gap nut provides continuous tightening force through the built-in spring mechanism, ensuring close contact between printer components, thereby improving printing accuracy. The elasticity of the spring can absorb part of the vibration energy, thereby reducing friction and noise levels and improving the efficiency and quality of the equipment.[Easy to Use] Place the anti-backlash spring-loaded nut where it needs to be installed, align the hole of the bolt or screw, pass the bolt or screw through the nut hole and tighten it, adjust the spring tension as needed, and finally tighten the bolt or screw.[Application] Eliminating gap nuts are widely used, including high-precision 3D printing, large-scale 3D printing equipment, multi-material 3D printing, complex structure 3D printing and long-term 3D printing tasks. They can also be widely used in mechanical equipment and the automotive industry.Specification:Material: POMModel: Tr8Start: 2Lead: 4mm/0.16"Pitch: 2mm/0.08"Mounting Hole: 3.5mmNut Size: 15x14mm/0.59"x0.55"(L*W); 15x22mm/0.59"x0.87"(L*W)Spring Size: 37x12mm/1.46"x0.47"(L*OD)Package Content: 4pcs x Anti Backlash Spring Loaded Nuts

Features:

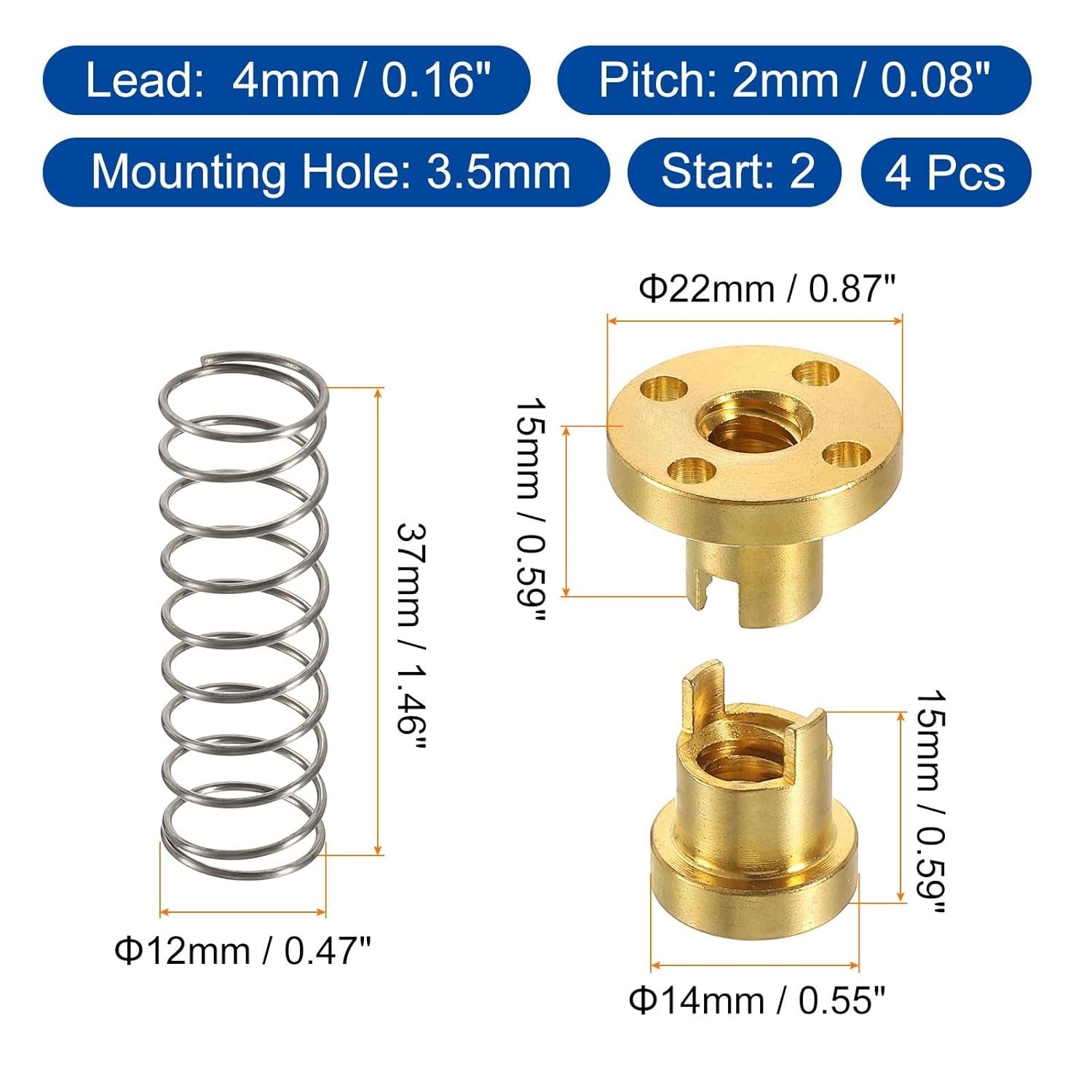

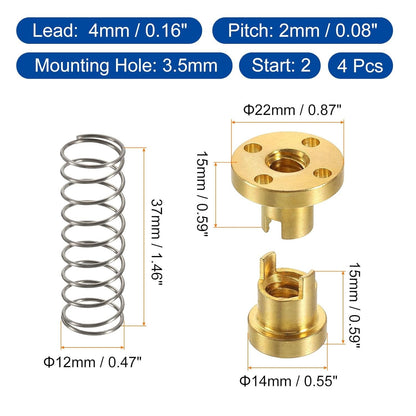

• [Elimination Gap Nut] Material: POM; Model: Tr8; Start: 2; Lead: 4mm/0.16"; Pitch: 2mm/0.08"; Mounting Hole: 3.5mm; Nut Size: 15x14mm/0.59"x0.55"(L*W); 15x22mm/0.59"x0.87"(L*W)

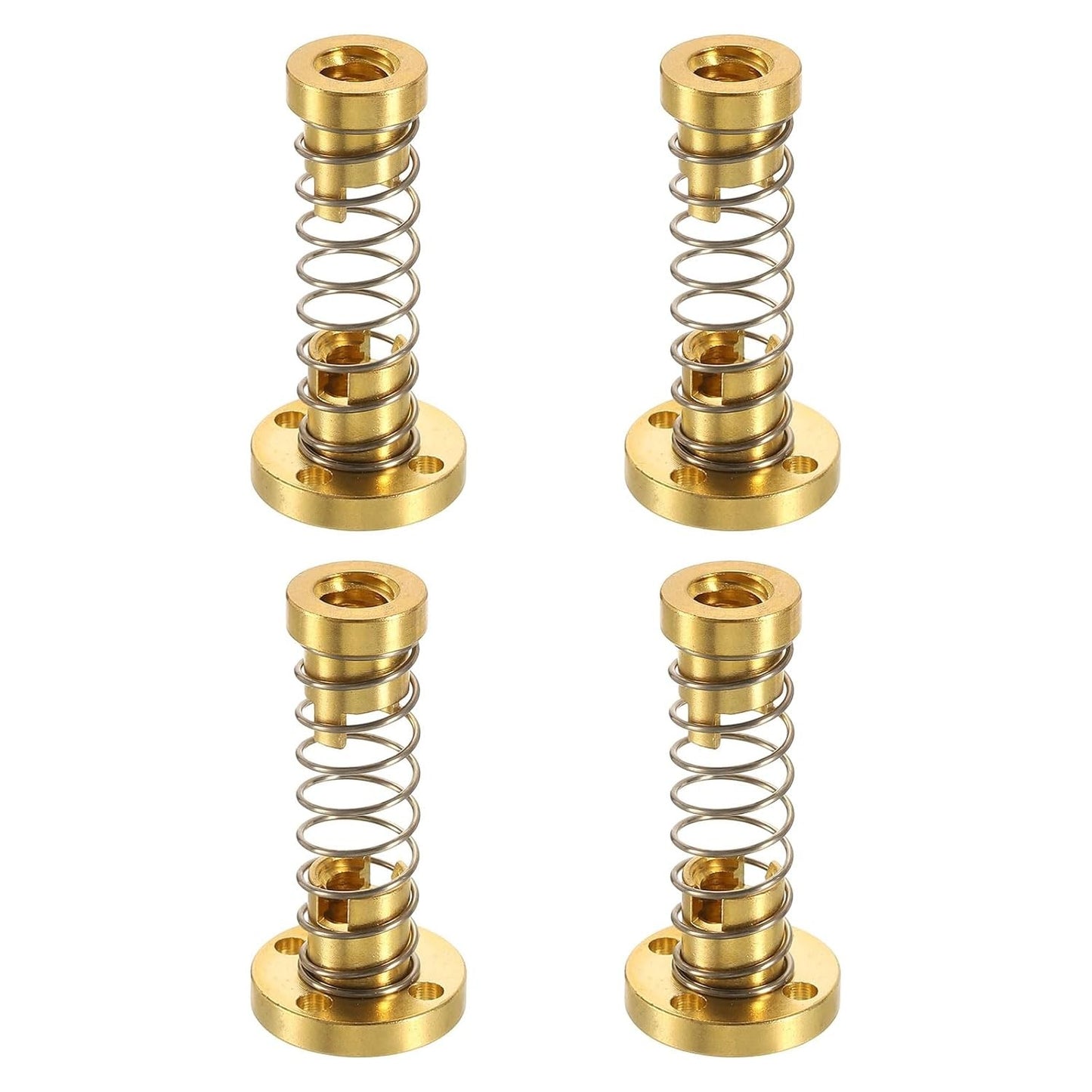

• Spring Size: 37x12mm/1.46"x0.47"(L*OD); Package Content: 4pcs x Anti Backlash Spring Loaded Nuts

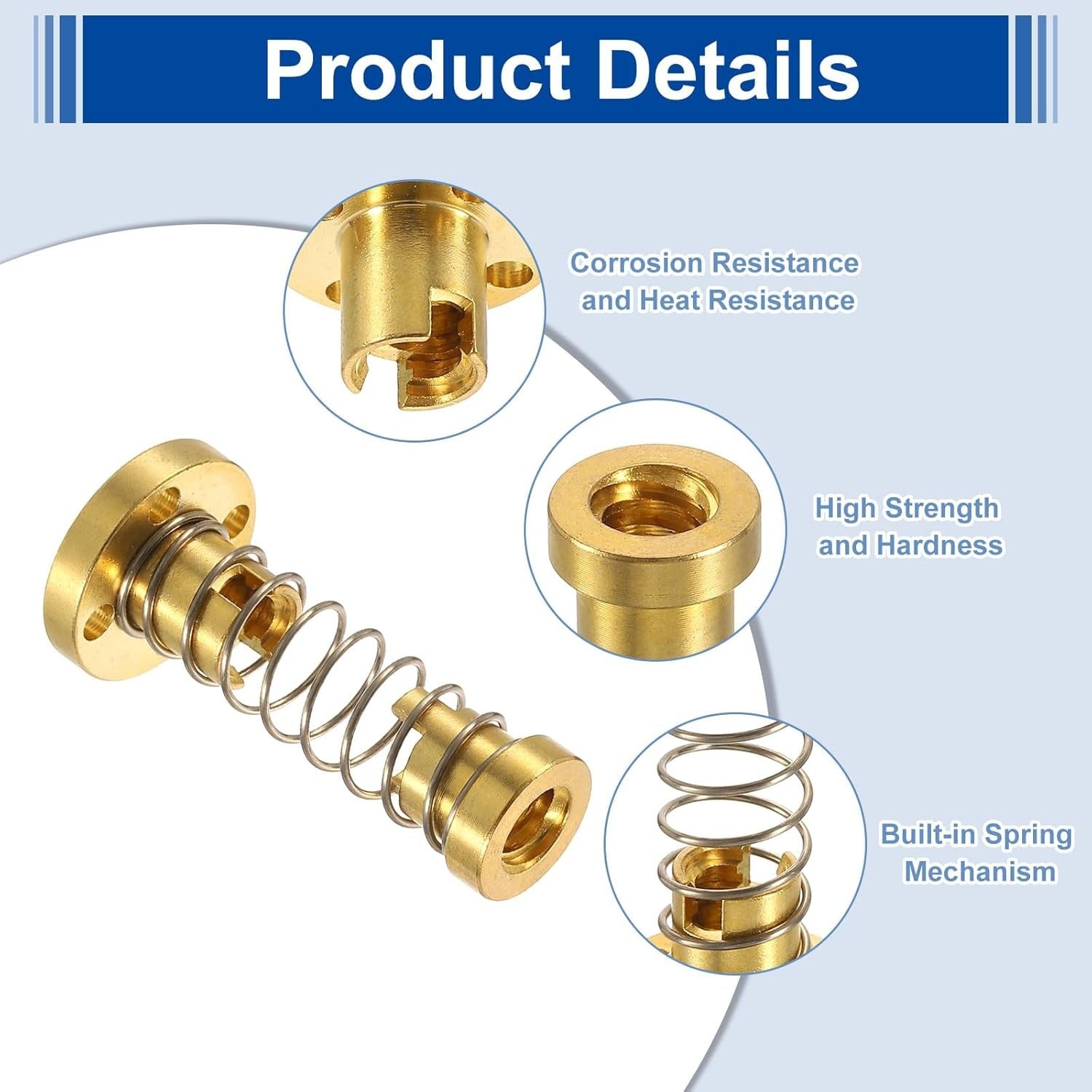

• [Material] The anti-backlash spring loaded nut is made of POM material, which has high strength and hardness, is very wear-resistant, has a high load-bearing capacity, has excellent corrosion resistance and heat resistance, and can be used for a long time

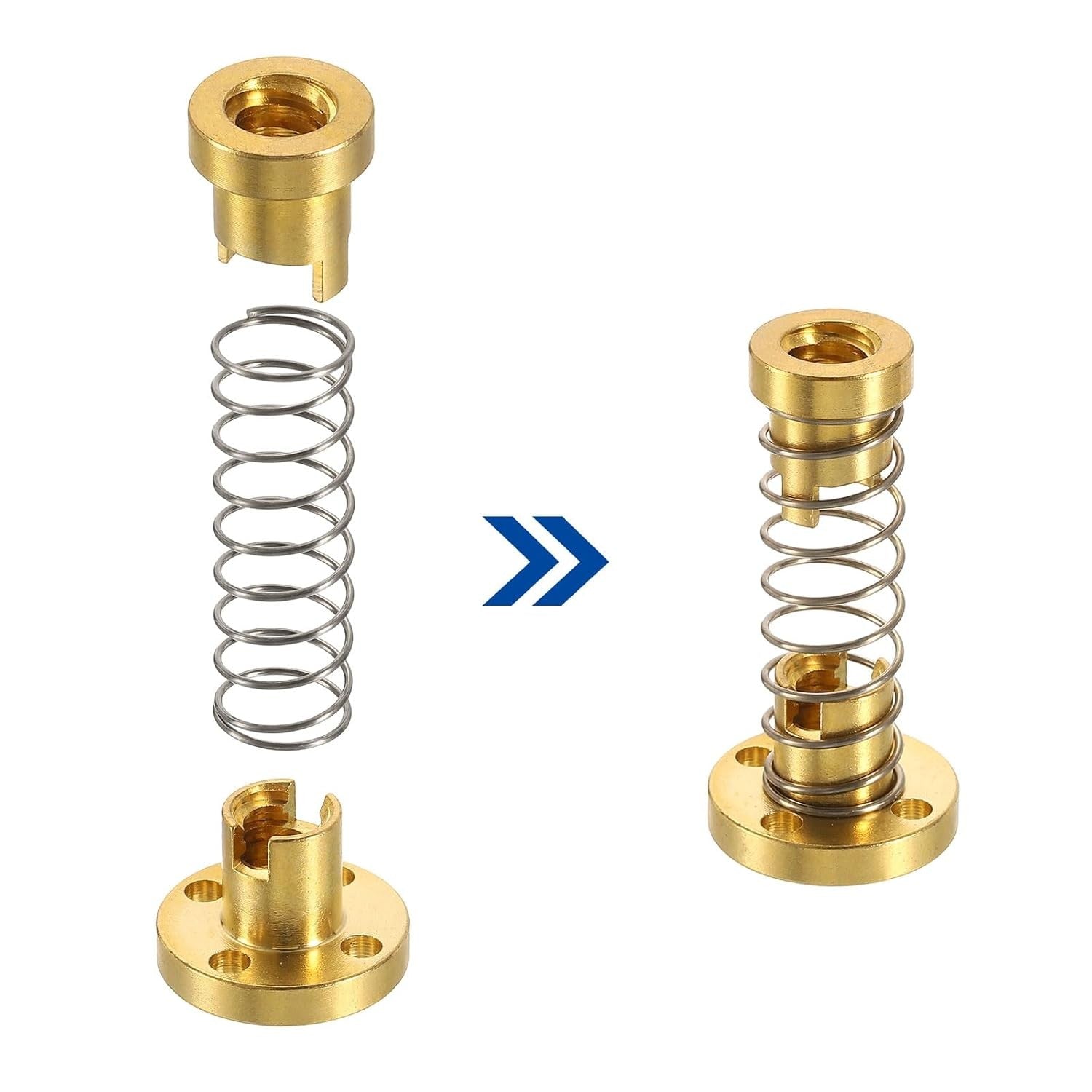

• [Advantage] Elimination gap nut provides continuous tightening force through the built-in spring mechanism, ensuring close contact between printer components, thereby improving printing accuracy. The elasticity of the spring can absorb part of the vibration energy, thereby reducing friction and noise levels and improving the efficiency and quality of the equipment

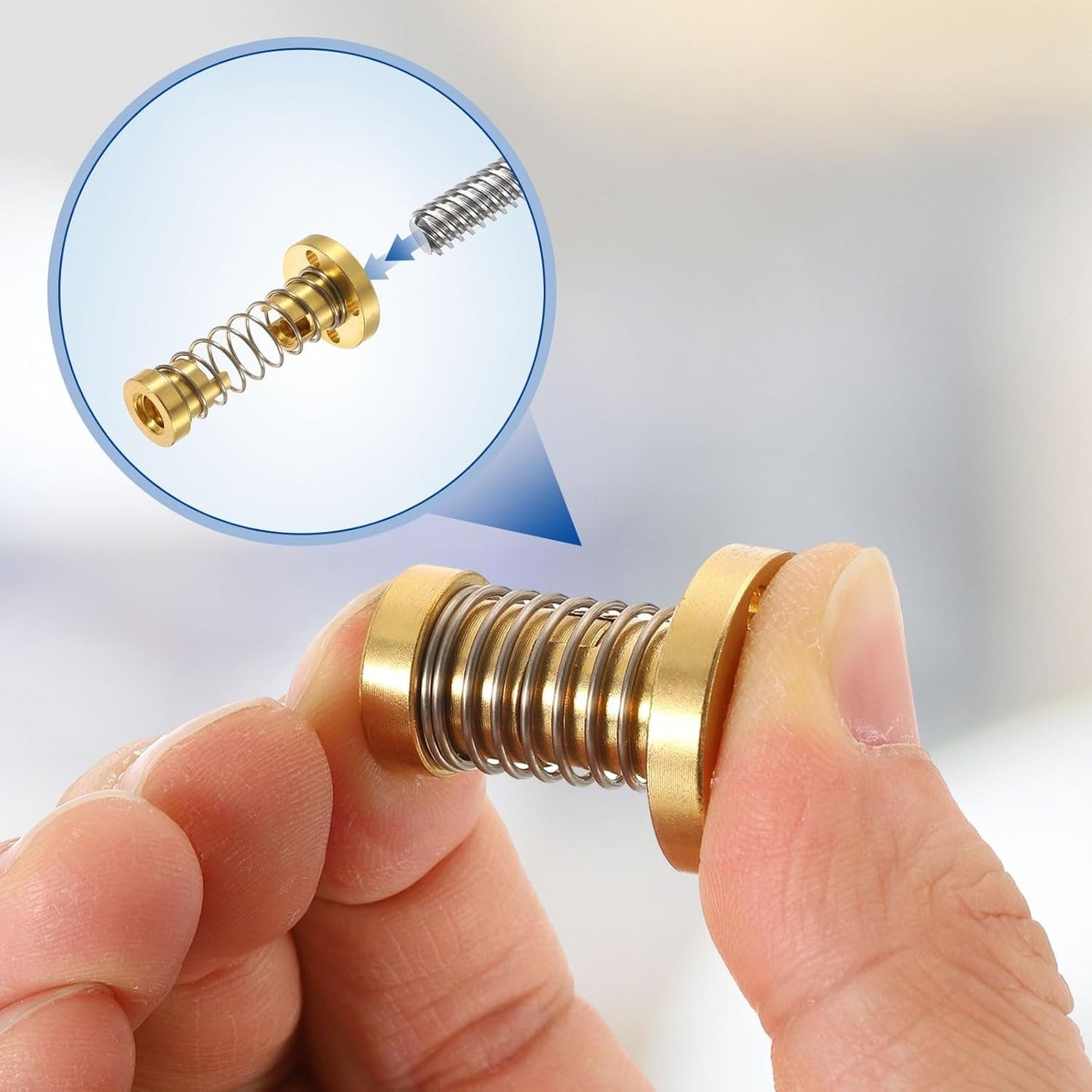

• [Easy to Use] Place the anti-backlash spring-loaded nut where it needs to be installed, align the hole of the bolt or screw, pass the bolt or screw through the nut hole and tighten it, adjust the spring tension as needed, and finally tighten the bolt or screw
• [Application] Eliminating gap nuts are widely used, including high-precision 3D printing, large-scale 3D printing equipment, multi-material 3D printing, complex structure 3D printing and long-term 3D printing tasks. They can also be widely used in mechanical equipment and the automotive industry

Product Details:

• Product Dimensions : 0.87 x 0.59 x 0.59 inches; 3.35 ounces
• Manufacturer : uxcell
• Country of Origin : China
• Item dimensions L x W x H: 0.87 x 0.59 x 0.59 inches
• Brand: uxcell
• Size: Tr8x4
