Waterproof IP66 Solar Disconnect Switch 4-Pole Red DC1500V 32Amp

Description

Features:

• [ Ui: DC1500V ] The DC isolator solar switch is designed to quickly and safely disconnect DC power up to 32A 1500V when installing or maintaining PV systems. Compliant with IEC60947-1&3 standards, it is the first choice for repair, maintenance, inspection and installation. (rated working voltage 1200V, rated insulation voltage 1500V)

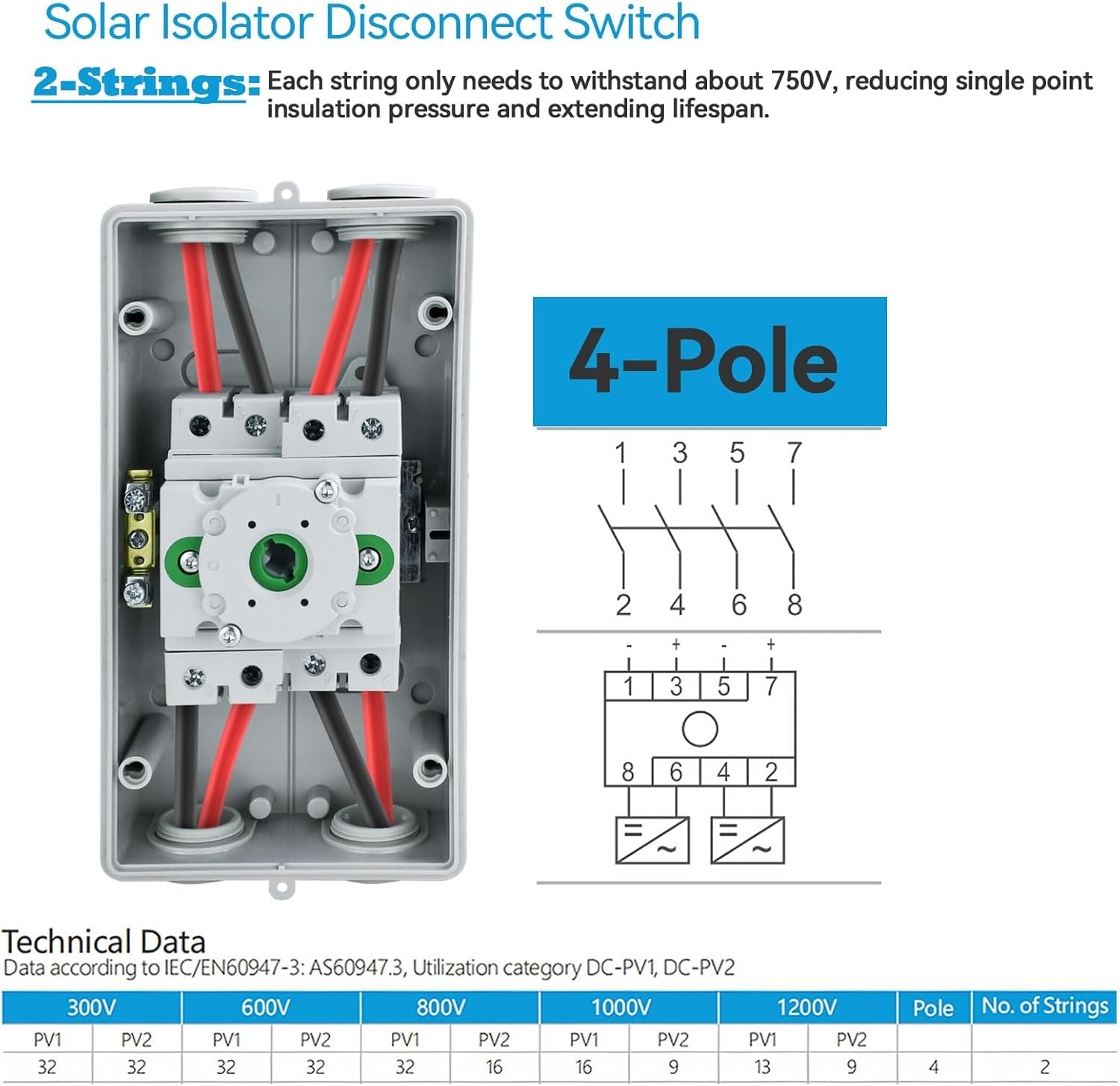

• [ HIGH SECURITY ] Red handle, 4-Pole. The PV switch disconnector has 4 separate circuits of 32 amps each, 64A max. for 2 circuits for high work safety. And the solar disconnect switch has a padlocked handle that locks in the closed position and is tamper-resistant.

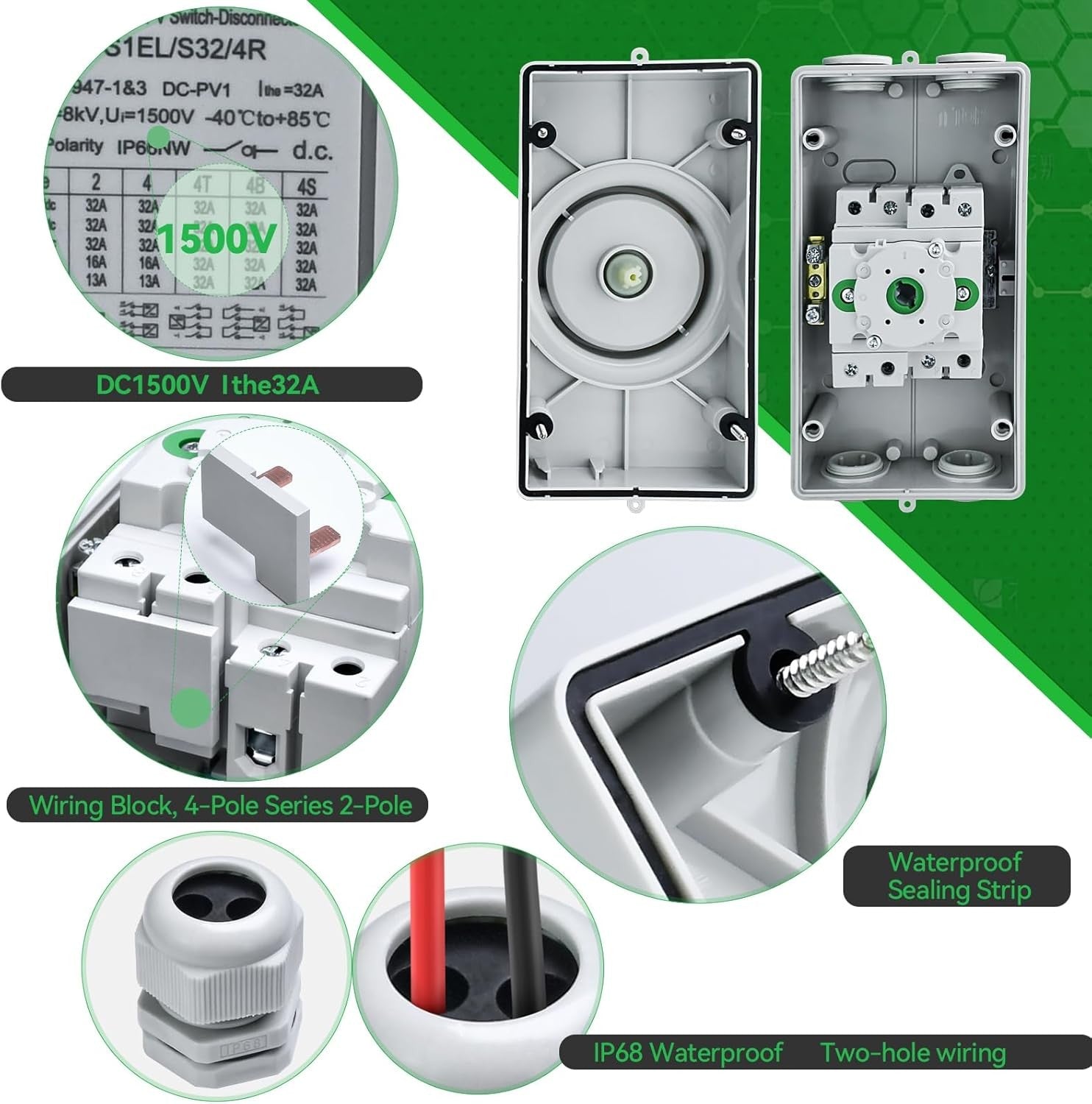

• [ Easy installation ] No need to damagethe box, mountingholes are already cutout. Double hole cable connector, suitable for 6-8mm connecting wires, safer to use.

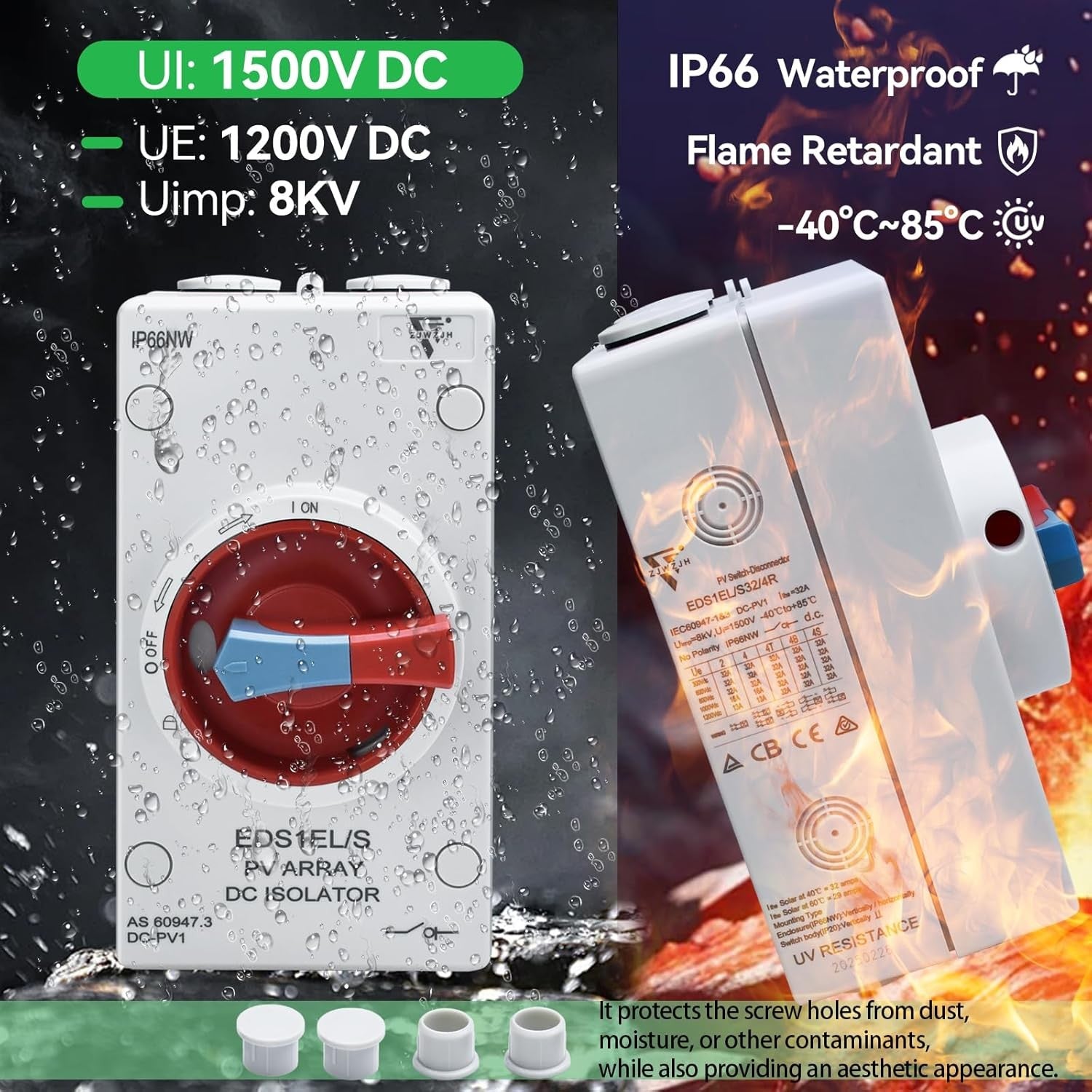

• [ RELIABLE & DURABLE ] ZJWZJH's solar pv isolator switches are made of high quality PC material, It has the advantages of UV-proof, flame retardant, water and dust prevention (IP66), Cold and heat protection (-40℉~+185℉), environmental aging and corrosion resistance, and long service life, perfect for outdoor and indoor installation.
• [ WIDE APPLICATION ] Whether it's solar panels, solar charge controllers, solar inverters or solar modules, you can integrate our DC disconnect switches to connect and control them all.

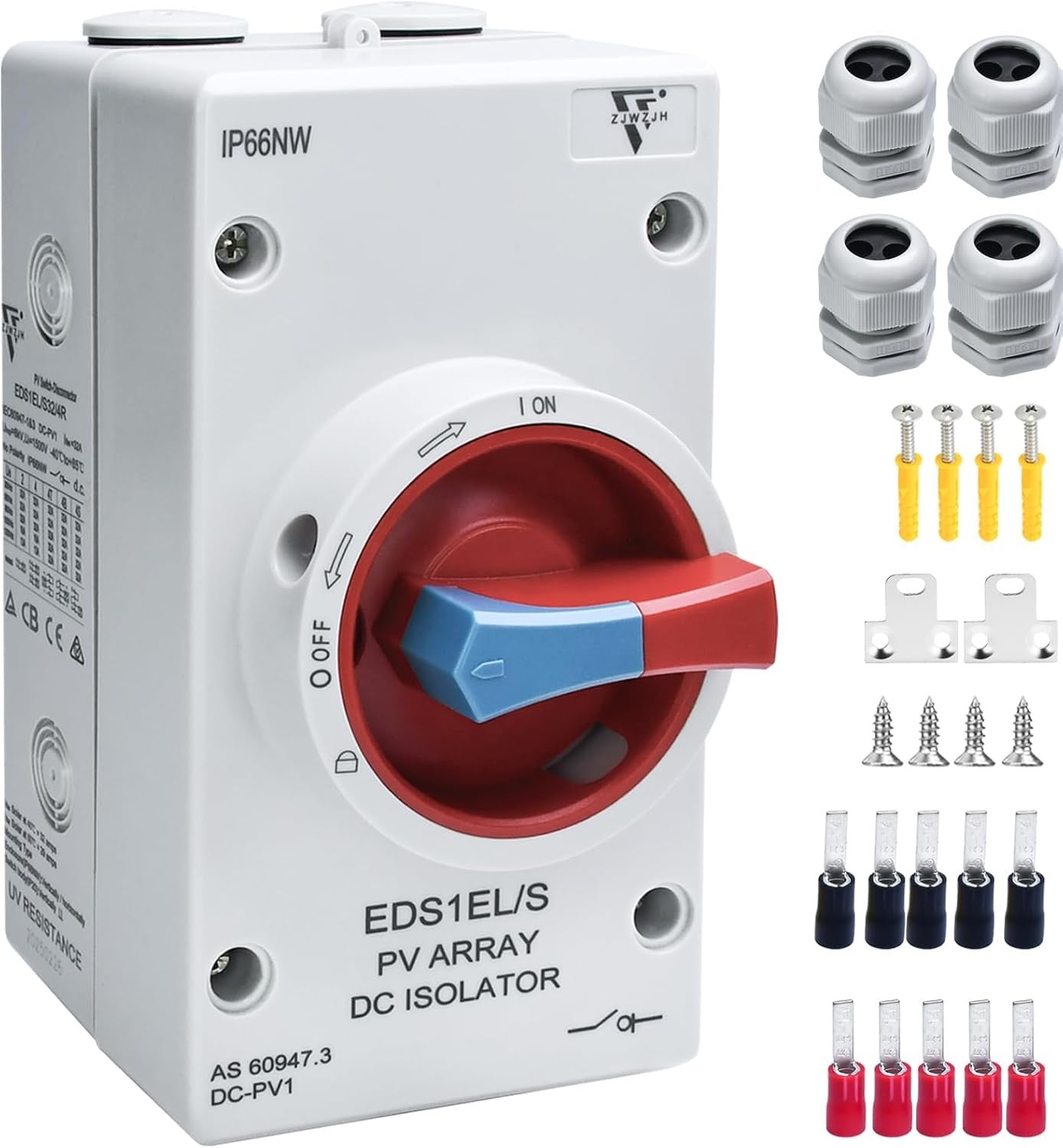

• [ Package ] 1 X Disconnector Switch; 4 X Screw; 2 sets of Wall Mounting Kit; 5 sets of connection terminals; 4 x Cable Connectors.

Product Details:

• Operation Mode: ON-OFF
• Current Rating: 32 Amps
• Operating Voltage: 1200 Volts (DC)
• Contact Type: Normally Open
• Connector Type: Screw
• Brand: ZJWZJH
• Terminal: Screw

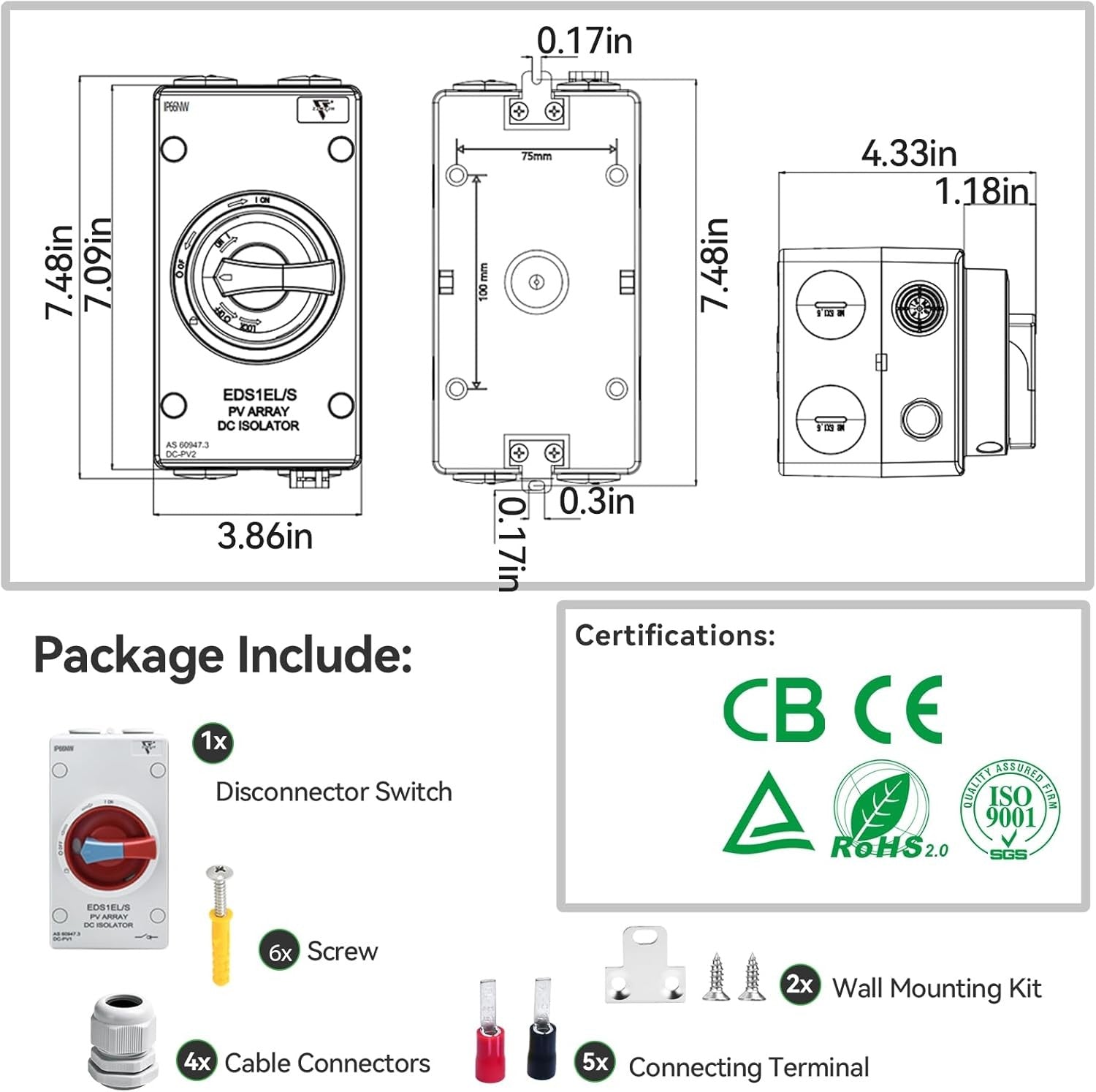

• Item dimensions L x W x H: 3.86 x 4.33 x 7.48 inches
• Circuit Type: 4-way
• Actuator Type: Rotary
• Contact Material: Silver
• International Protection Rating: IP66
• Number of Positions: 4
• Upper Temperature Rating: 85 Degrees Celsius
• Controller Type: Rotary Switch
• Color: Red 4-Pole
• Unit Count: 1.0 Count
• Number of Items: 1
• Manufacturer: ZJWZJH
• Product Dimensions: 3.86 x 4.33 x 7.48 inches
• Item Weight: 1.6 pounds
• Item model number: EDS1-4R-R
• Switch TypeMaterial: RotaryPlastic
• Mounting TypeSpecification Met: Panel MountCB, CE, ISO 9001, RCM, TUV
