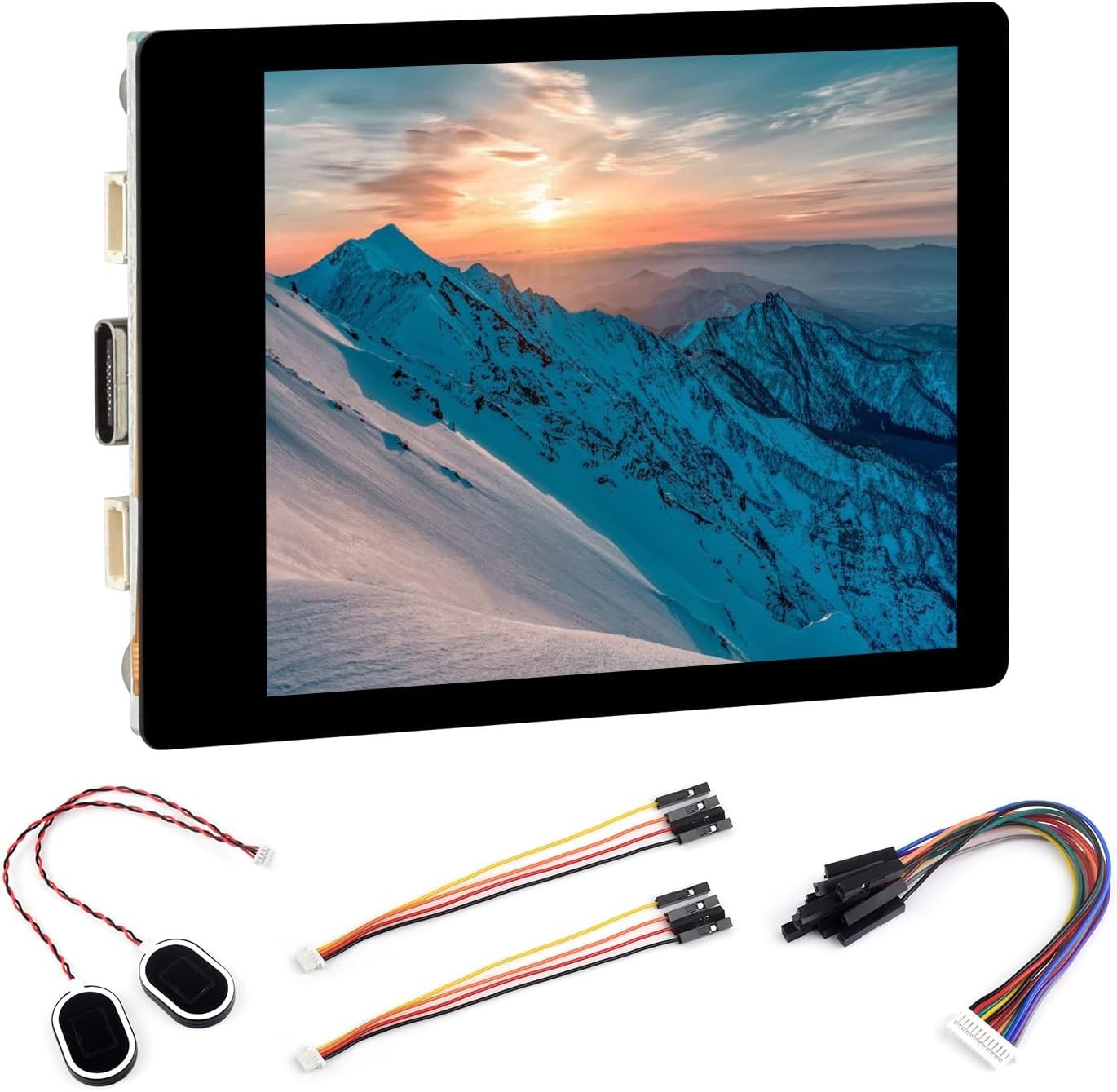

Waveshare RP2350 2.8inch Capacitive Touch Display Development Board, 240×320, IPS Panel, 5-Point Touch, SPI Interface, Accelerometer & Gyroscope Sensor

Description

Features:

• High-Performance Dual-Core Microcontroller: Powered by the RP2350 microcontroller designed by Raspberry Pi, this board features a unique dual-core architecture with an ARM Cortex-M33 processor and a Hazard3 RISC-V processor, providing flexible clock speeds up to 150 MHz for efficient performance.
• Integrated Display & Touch Interface: The onboard 2.8-inch LCD display offers a resolution of 240×320 and 262K colors, providing clear visuals. It also supports capacitive touch functionality via I2C, with 5-point touch and interrupt support, allowing for smooth and responsive GUI interaction.

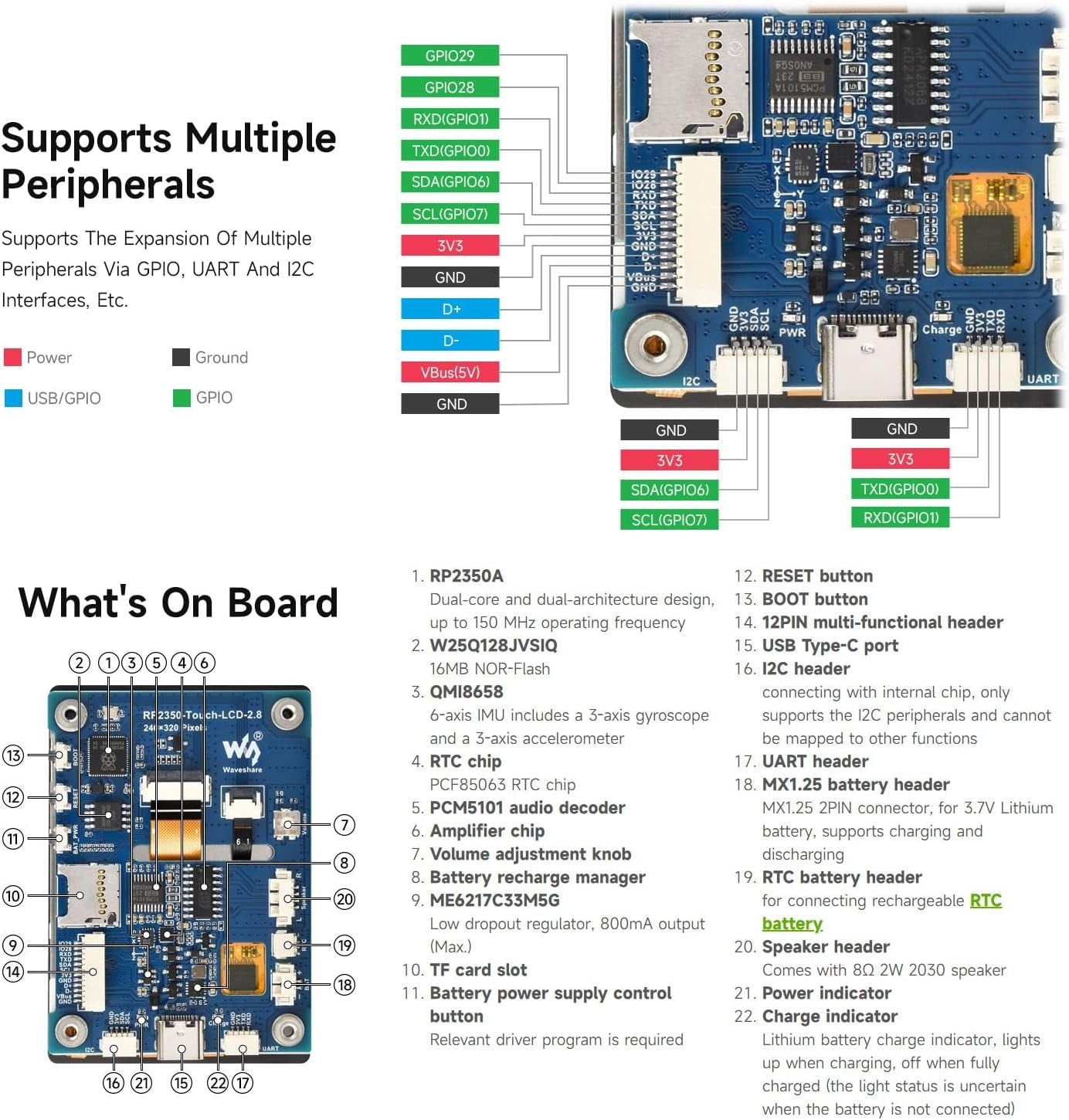

• Rich Sensor & Peripheral Integration: The board integrates various peripherals, including the QMI8658 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), an RTC chip, a TF card slot for external storage, and a battery recharge management module, making it easy to develop applications with motion detection, timekeeping, and more.
• Flexible Connectivity & Power Options: Equipped with UART, I2C, and other IO interfaces, the board also features a full-speed USB port for easy data transfer and programming. Multiple power modes and flexible clock settings ensure low power consumption, making it ideal for battery-powered applications.

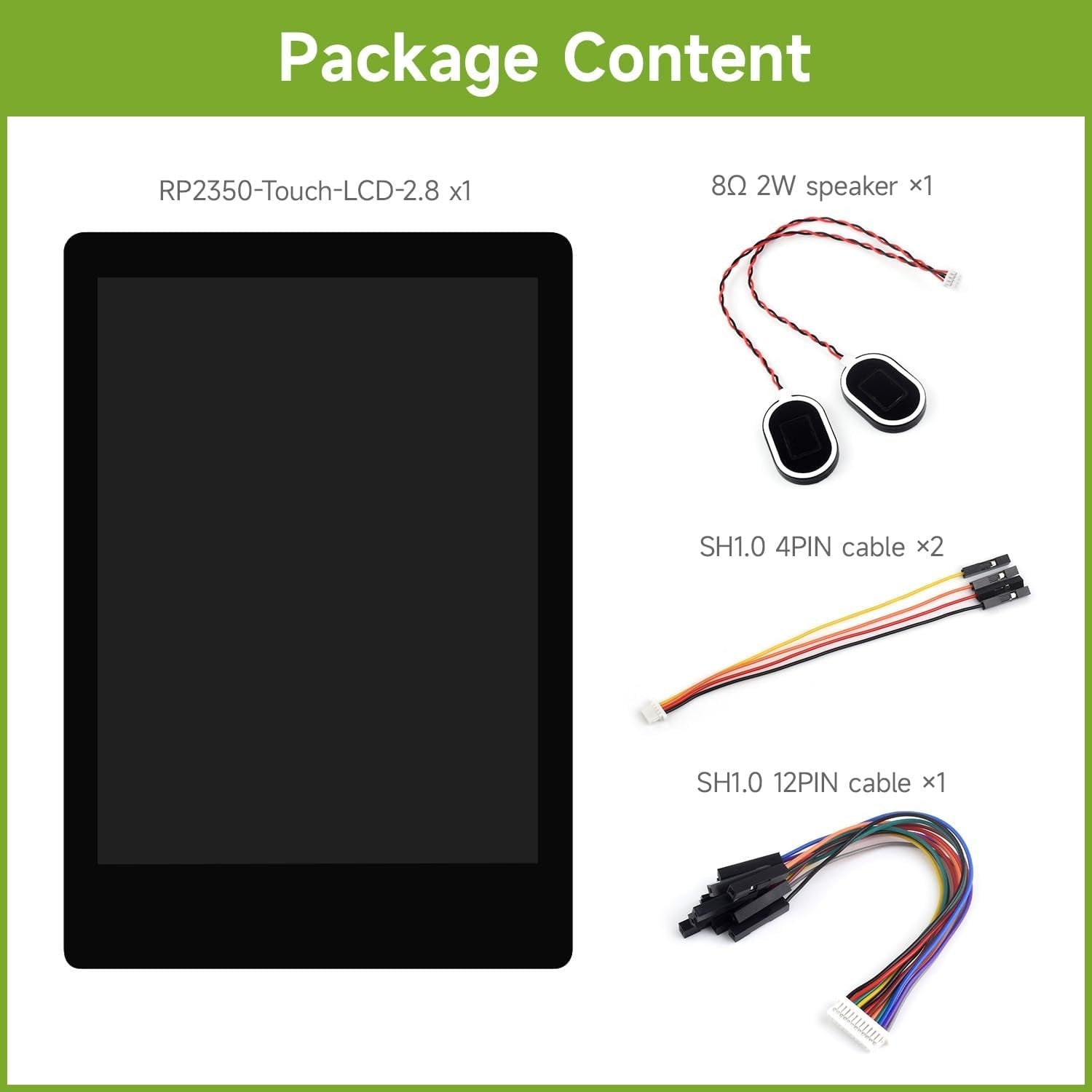

• Easy Development & Programming: The RP2350-Touch-LCD-2.8 supports drag-and-drop programming via mass storage over USB, simplifying development and making it accessible to both beginners and advanced users. The onboard speaker adds an extra layer of functionality for multimedia applications.
• Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.

Product Details:

• Processor: 150 MHz
• RAM: LPDDR4
• Brand: waveshare
• Model Name: RP2350-Touch-LCD-2.8
• Memory Storage Capacity: 16 MB
• CPU Speed: 150 MHz
• Connectivity Technology: USB, UART, I2C
