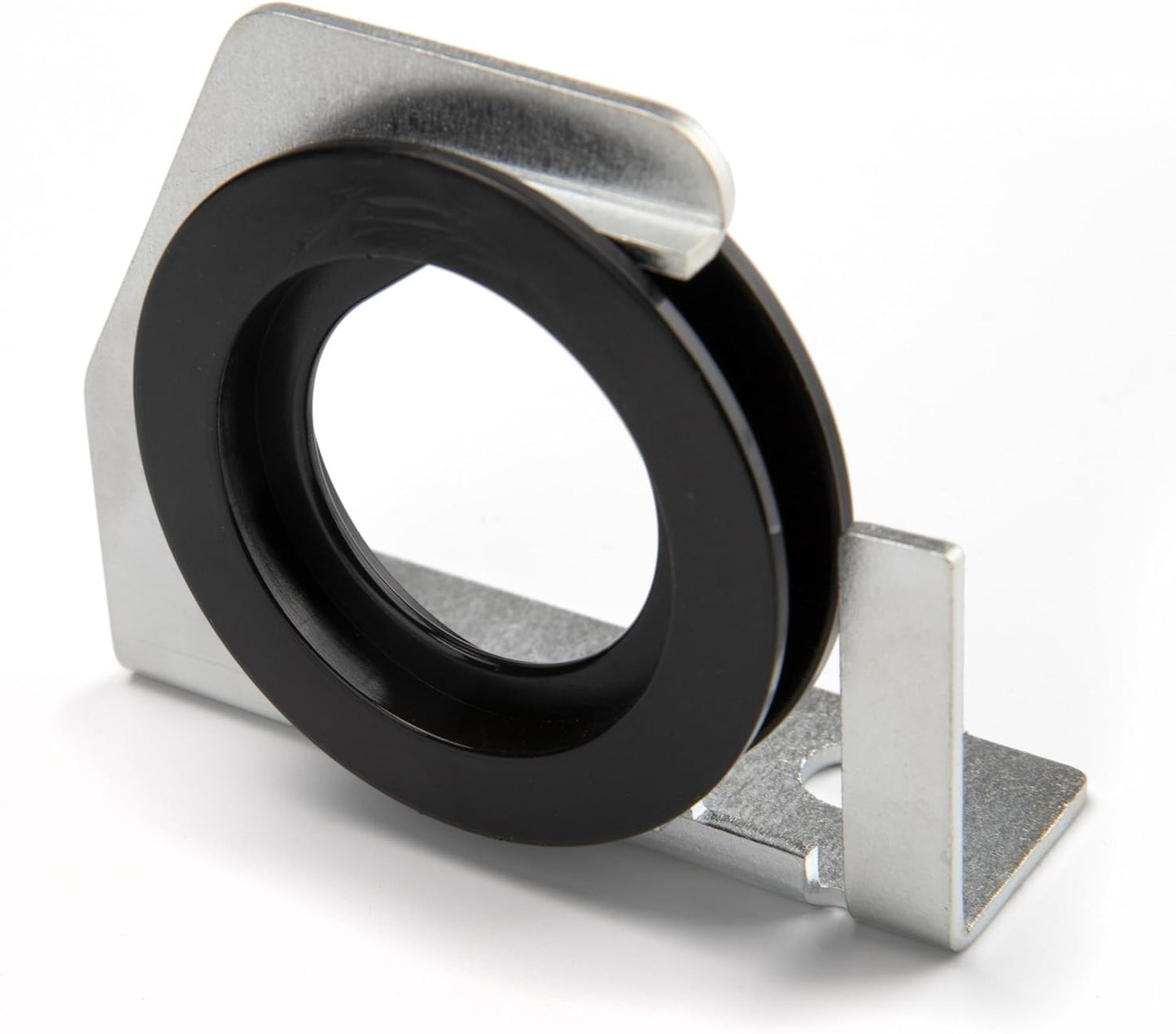

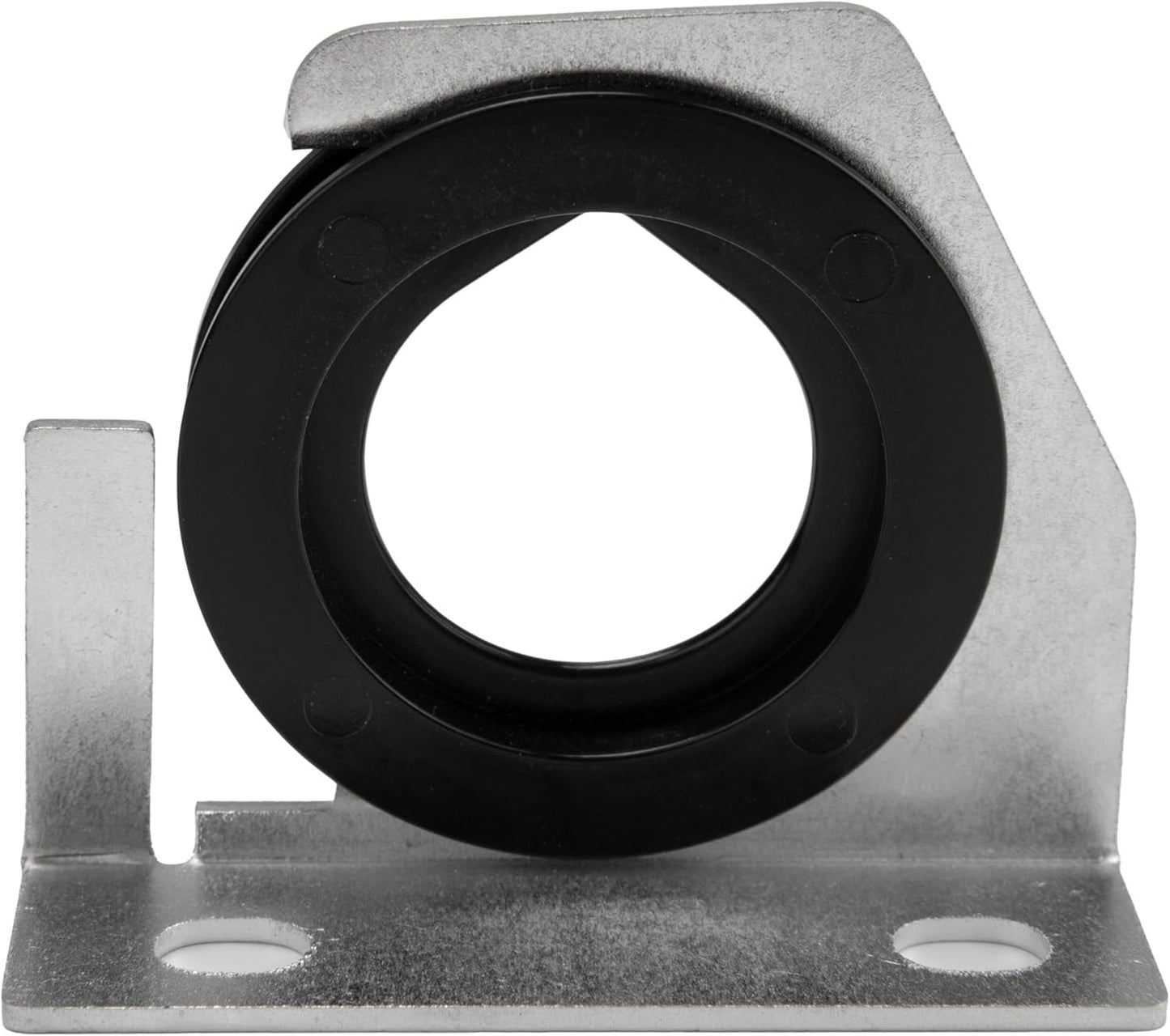

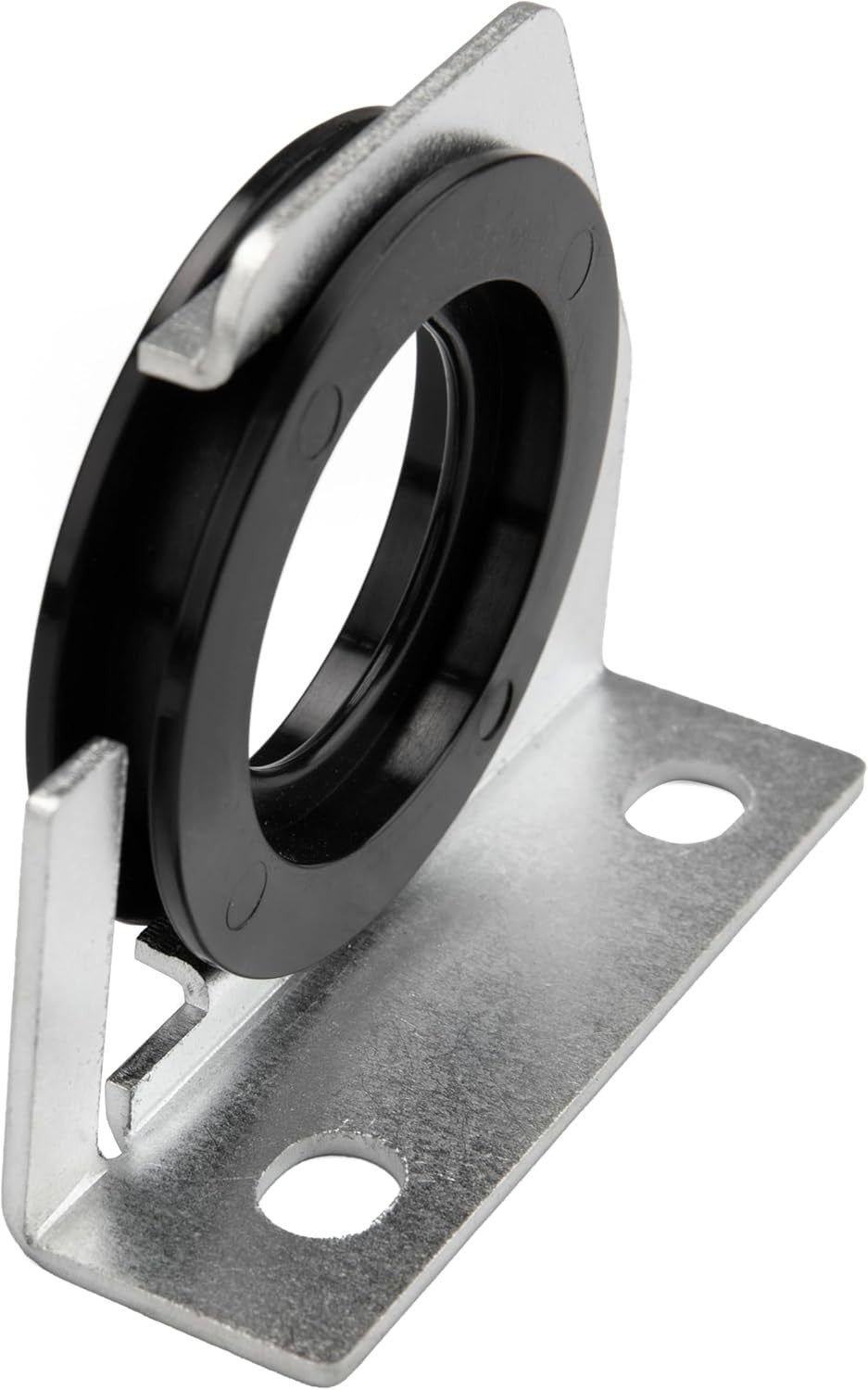

Wayne Dalton TorqueMaster Tube Center Support Bracket, Part # BLACK ,SIVER

Description

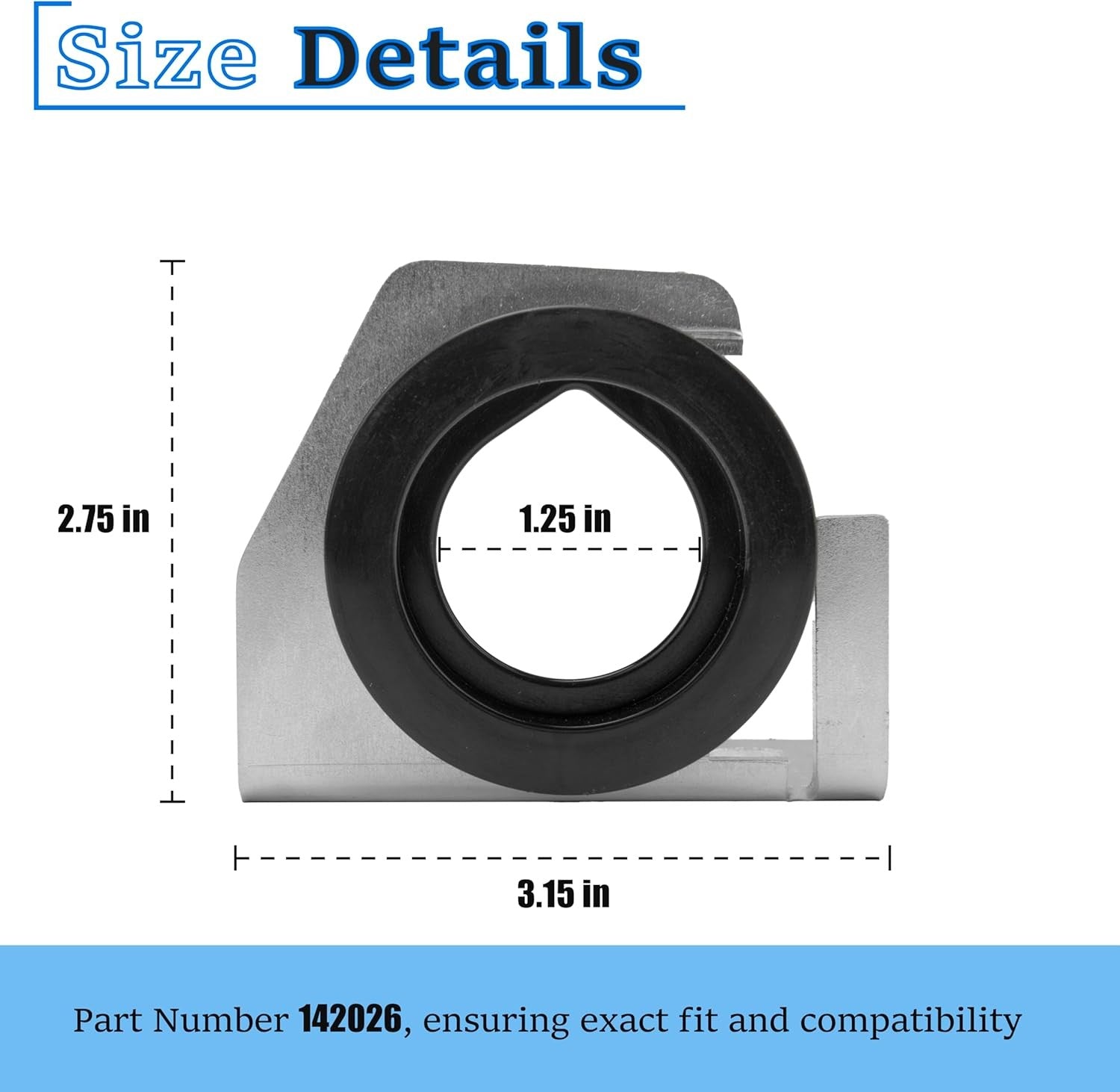

Use with all Wayne Dalton TorqueMaster Spring Systems Bracket is constructed of 1/16" Thick zinc plated steel & measures 3-1/4" Tall x 2-5/8" Deep x 1-1/4" Wide. With 2- 5/16" x 7/16" oval mounting holes that are 2-1/8" on center. Black nylon bushing is 1/2" Thick x 2-5/16" OD x 1-1/4" ID & 1-5/8" to the tip of the cam lobe.

Features:

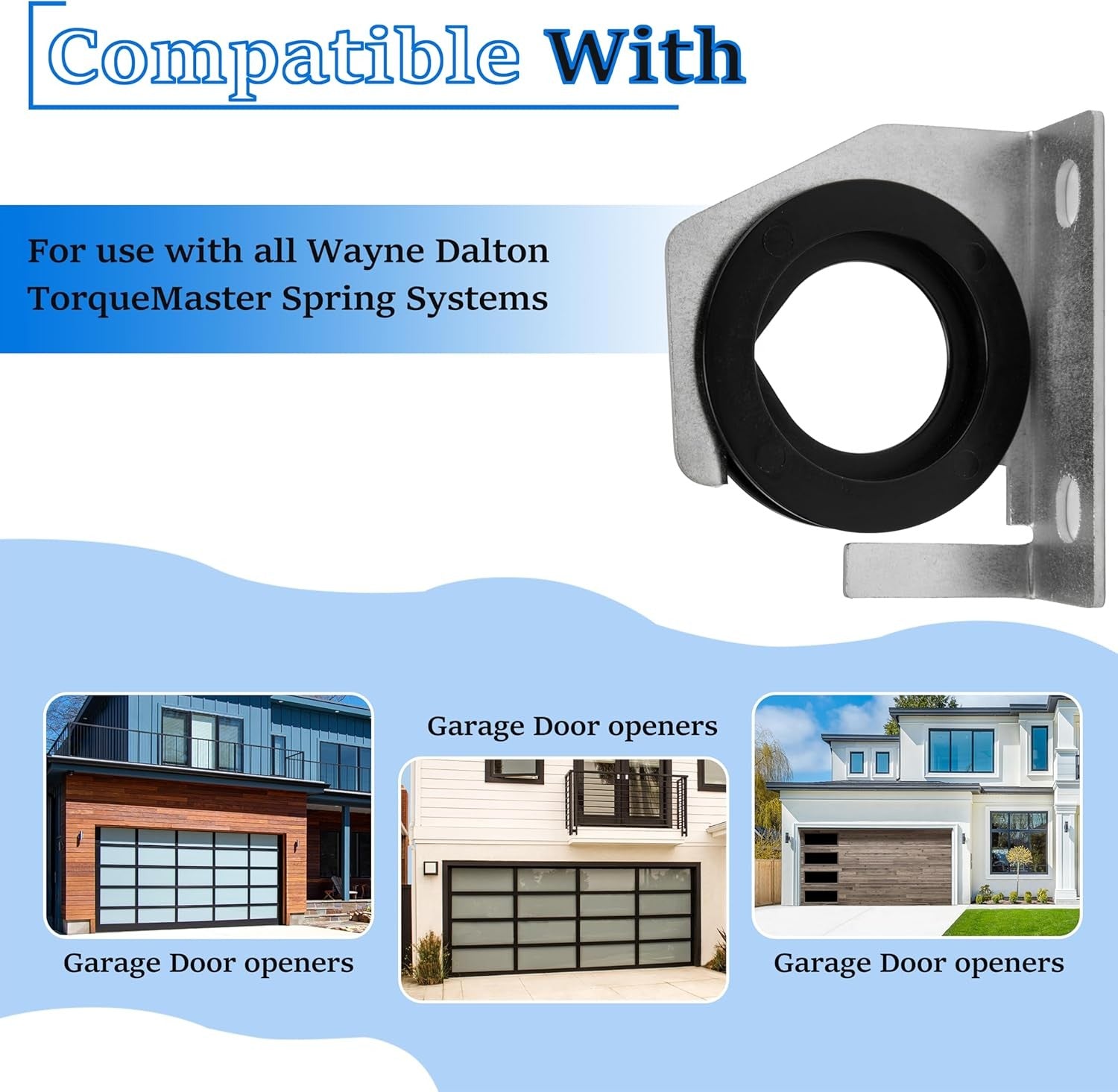

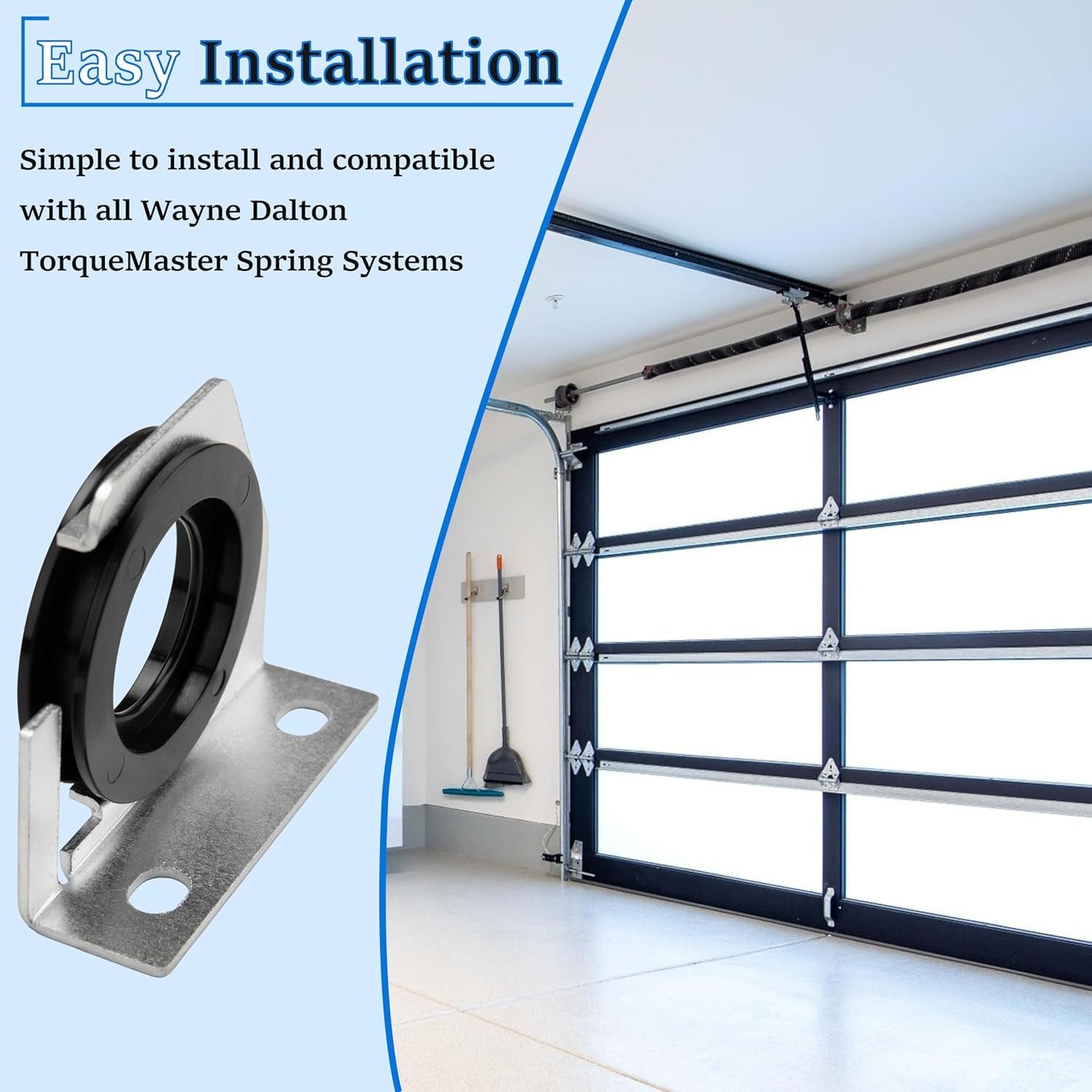

• Tube Center Support Bracket For use with all Wayne Dalton TorqueMaster Spring Systems,142026
• Bracket is constructed of 1/16" Thick zinc plated steel & measures 3-1/4" Tall x 2-5/8" Deep x 1-1/4" Wide.
• With 2- 5/16" x 7/16" oval mounting holes that are 2-1/8" on center.
• Black nylon bushing is 1/2" Thick x 2-5/16" OD x 1-1/4" ID & 1-5/8" to the tip of the cam lobe.

Product Details:

• Unit Count: 1.0 Count
• Item Depth: 2.625 inches
• Mounting Type: Wall Mount
• Manufacturer: ZTTM
• Part Number: Part # 142026
• Item Weight: 2.89 ounces
• Product Dimensions: 3.25 x 2.6 x 1.25 inches
• Item model number: Part # 142026
• Included Components: TorqueMaster Tube Center Support Bracket
• Batteries Required?: No
• Color: BLACK ,SIVER
• Brand: ZTTM
• Material: Steel, Zinc Plated
• Item dimensions L x W x H: 3.25 x 2.6 x 1.25 inches
• Item Weight: 0.08 Kilograms
