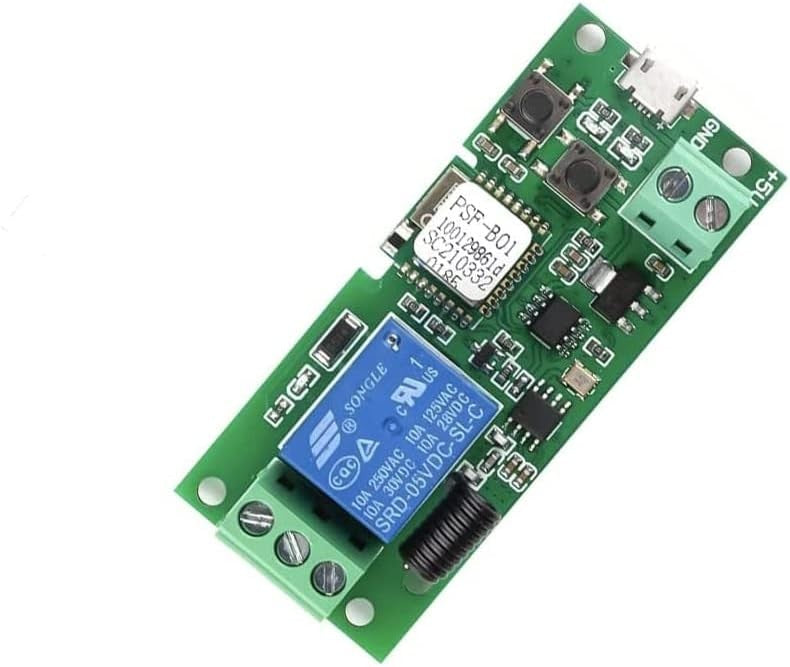

WiFi Wireless Smart Switch Relay Module for Home 5V 5V/12V，Ba WH

Description

Description: The wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink to remote control connected home appliances or devices. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select: Turn on 1s and then auto-off Turn off 1s and then auto-on. The product enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. Supported functions: Remote turn on/off Timing Schedules Device Sharing Group Management Specification: Dimensions:70.5mm*31mm*17mm Operating current: 5V DC only(please don't power it with 12V or above power source,ordinary phone charger can be used,not included) LEDs: 3 LEDs which indicate working mode, wifi status, relay on/off status respectively. Board consumption: Standby current: 80mA Max input current: 10A Max switching voltage: Relay lifespan: more than one million times Electrical insulation resistance 100M Electric shock voltage: 1000V Relay maximum pull time: 15ms Relay maximum release time: 5ms Operating temperature: -40 degrees to +70 degrees Operating Humidity 40% ~ 80% RH .Rated switching voltage: KINDLY WIFI Relay support 2.4G WIFI only,doesn't support Mesh wifi system and 5G WiFi pairing,make sure to put it close to your router.please use a wifi extender if wifi signal is weak.2.Working power is DC 5V only,if you need 12V 24V 32V power source,please select our 12V relays are switches without output.Please refere to trouble shootings in ewelink app,there are detail problemssolution,and you can open a case in ewelink app or email us if any question.Package included: 1 x Jog Inching Self-locking WiFi Wireless Smart Home Switch

Features:

• Low voltage ewelink app wifi dry contact relay/passive output,input 5v only,USB 5V or screw terminal port 5V.

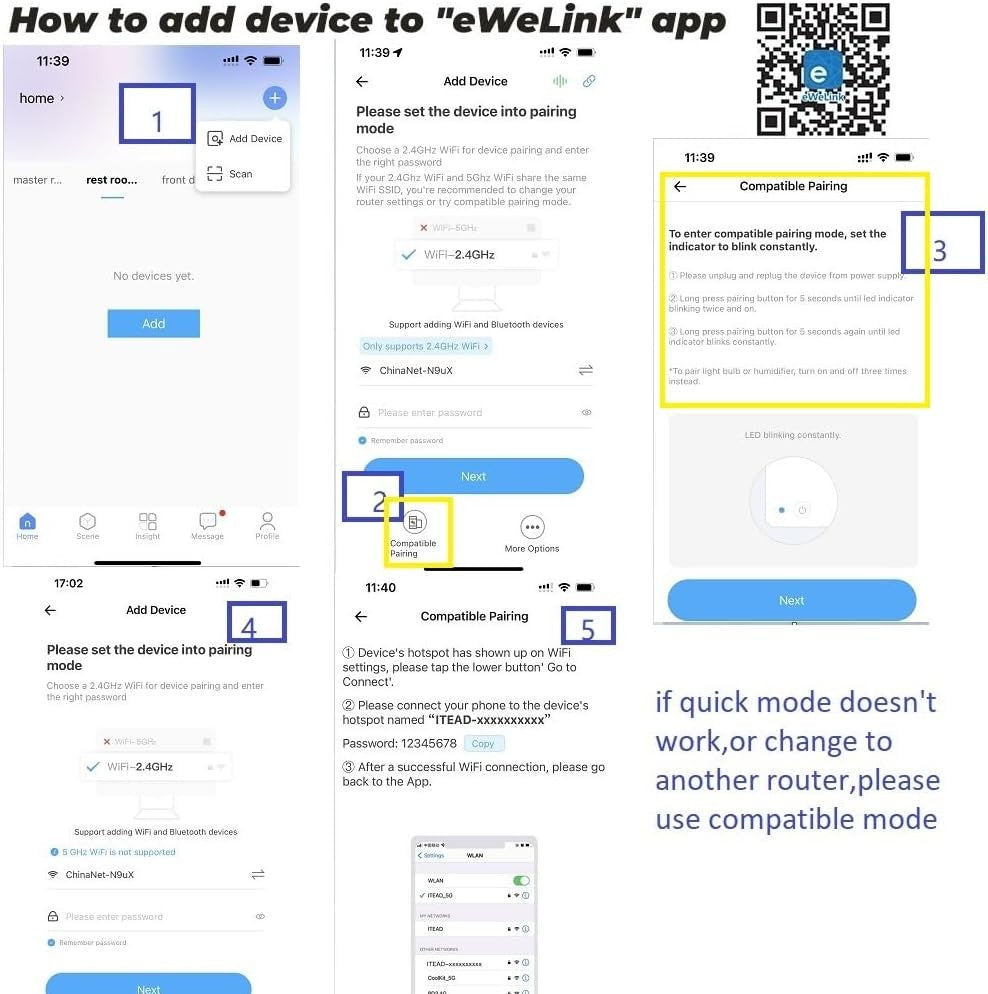

• easy setup.WIFI Relay support 2.4G WIFI only,doesn't suppor 5G WiFi network.If your router with dual bands and same SSID,please change to different SSID,or close 5G band firstly.When pairing,make sure to put it close to your router,your phone have to connect to the same 2.4G wifi. Once it's powered on,it will go to quick pairing mode,red light will circle blink 2 short 1 long,open ewelink app and it will find your SSID automatically,enter your correct wifi password.

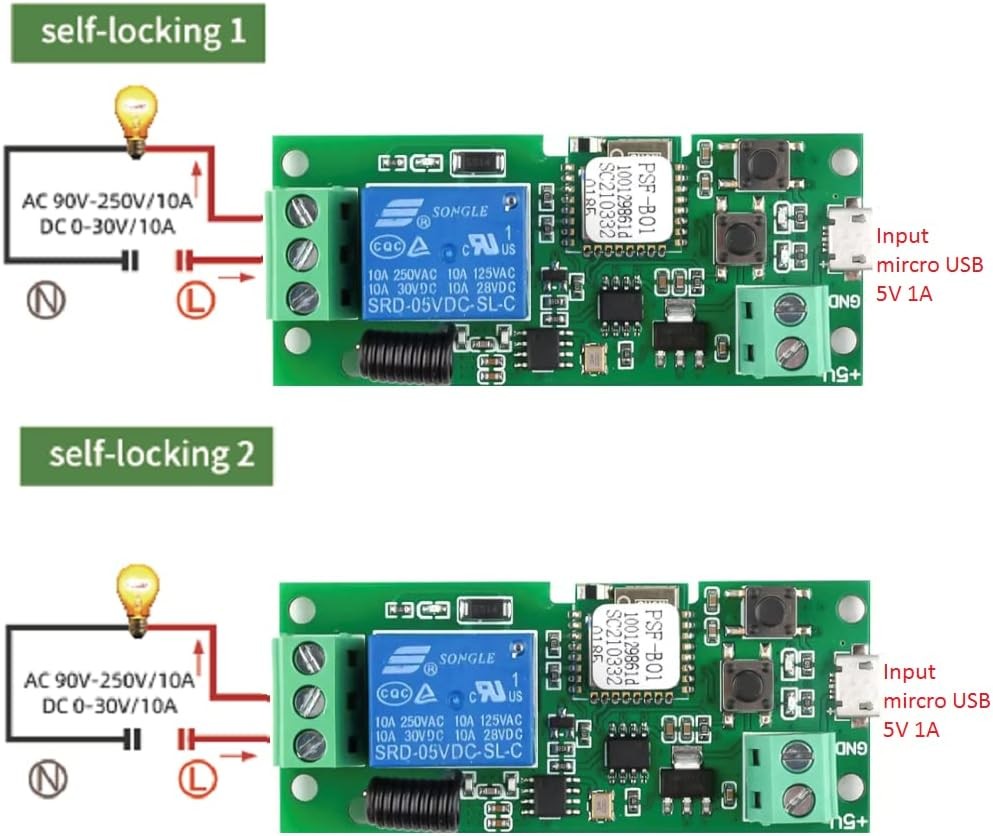

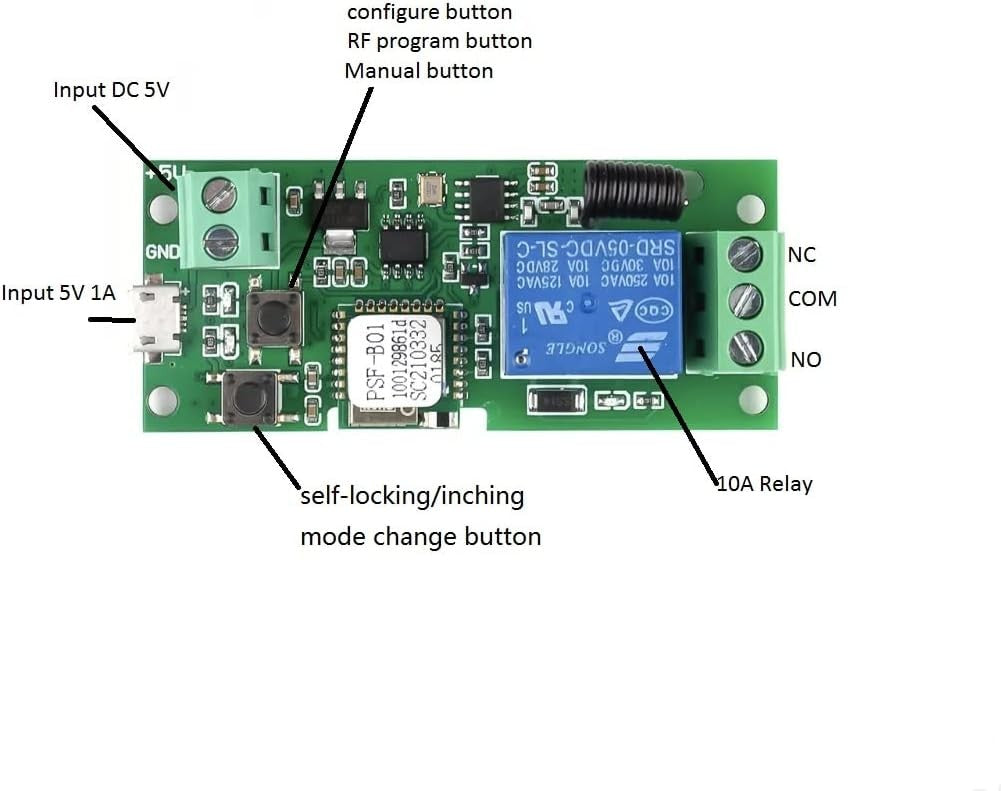

• 2 working mode,latching and inching mode,change work mode by pressing the mode button on board,With on/off mode,work as wireless switch,DIY WIFI light switch.with inching(momentary)mode,works as wireless button, Smart existing garage door opener
• Voice contrl and WIFI APP Remote control through the App eWeLink by your phone.Work with Alexa Assistant Siri Nest smartThings
• Timer&share control&group control&create smart scene,1 channel wifi relay can set max 8 schedule,share easy control with family.one phone can control multiple smart devices,set them in a group,one tap to on/off all devices

Product Details:

• Connector Type: Usb
• Contact Type: Normally Open
• Current Rating: 10 Amps
• Brand: MHCOZY
• Operation Mode: Automatic
• Coil Voltage: 5 Volts
• Contact Current Rating: 10 Amps
• Maximum Switching Current: 10 Amps
• Maximum Switching Voltage: 5 Volts
• Manufacturer: Mic technology
• Part Number: LEDWALL01
• Item Weight: 0.353 ounces
• Product Dimensions: 2.78 x 1.22 x 0.7 inches
• Item model number: LEDWALL01
• Is Discontinued By Manufacturer: No
• Color: WH
• Style: 5v
• Power Source: DC
• Voltage: 5 Volts
• Item Package Quantity: 1
• Measurement System: Imperial, Metric
• Switch Style: Remote
• Usage: garage door opener smart home
• Included Components: ewelink wifi relay switch board
• Batteries Included?: No
• Batteries Required?: No
• Description Pile: Lithium
• Connector Type: Usb
• Contact Type: Normally Open
• Current Rating: 10 Amps
• Brand: MHCOZY
• Operation Mode: Automatic
