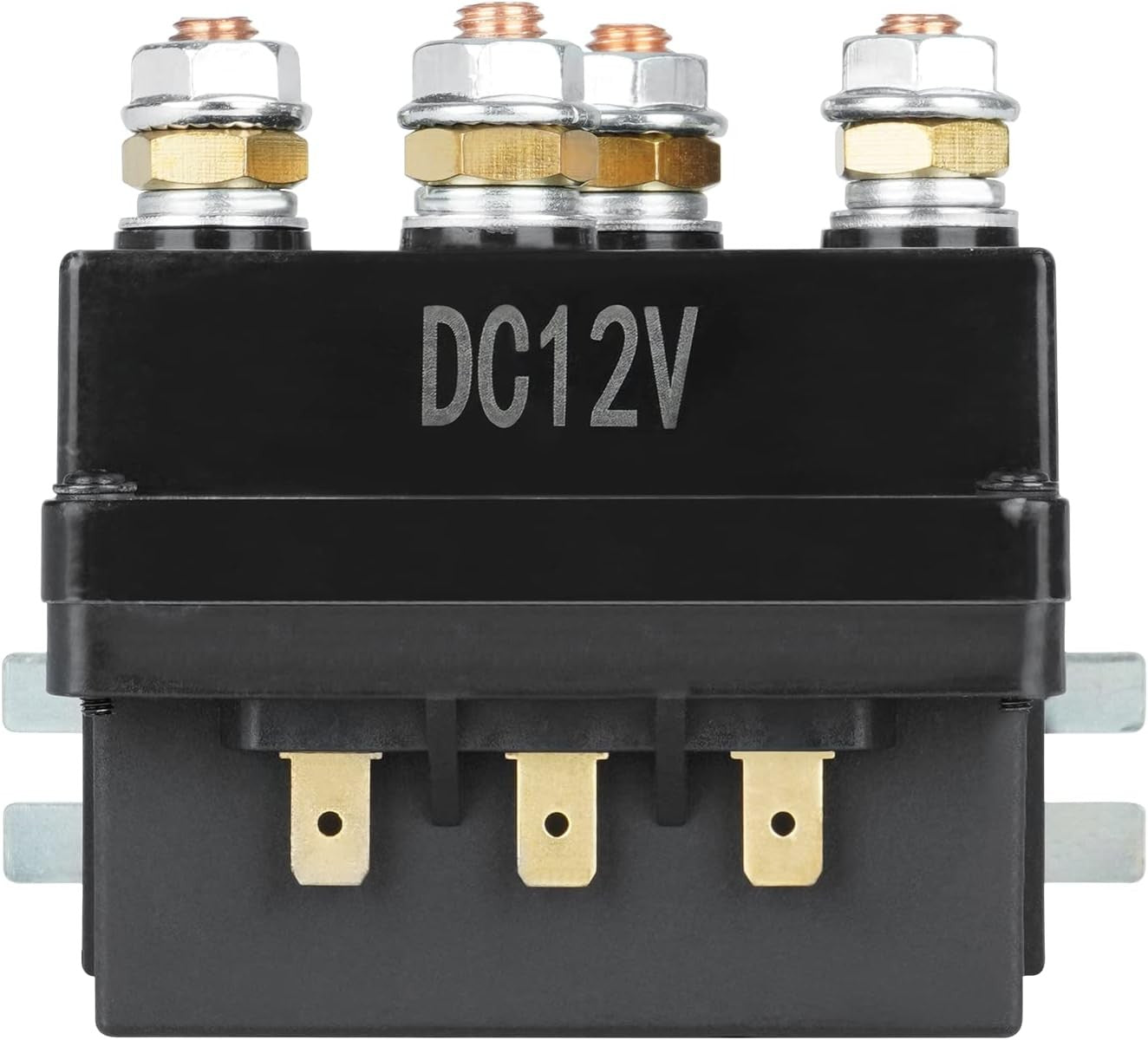

Youxmoto 12V Winch Solenoid Relay Contactor 500A, for 8000-15000lb ATV UTV Trucks Winches, Replace for 63070 62135 74900 70

Description

12v 500A winch solenoid relay for UTV ATVPerfectly meets OEM specifications and quality.Metal plating treatment, avoiding corrosion.180℃ Copper Wire as Coil, Reduce the Power Loss, , and extending service life.DescriptionThe electric contactor replacement could be used with 12v winches rated 8000 lbs-17000 lbs - Series wound and permanent magnet, works with many brands of winches.Voltage: 12V DCRating: 500ACoil rated voltage : 6-110V DCOperating power : 15WContact circuit voltage and loading current: 80V DC Max 250V AC 500AMechanical life : 100,000OpsElectrical life : 50,000OpsEnvironment temperature : -40°C - 85°CFrequency : 10Hz-200HzAcceleration : ≤3.5gSpeed : 60-100 per minEasy Installation:Tools may required:#2 Robertson,10mm wrench,wire strippers,soldering iron/torch,electronics solder,blade connectors,heat shrink tubing.Package Included:1x Winch solenoid relay6x Protecting caps

Features:

• 【12V WINCH SOLENOID】: 12V 500A winch solenoid relay for Winch Motors, Snow Plow & Spreader Motors, Windlasses, Hydraulic Pump Motors & Other Reversible Motors, etc.

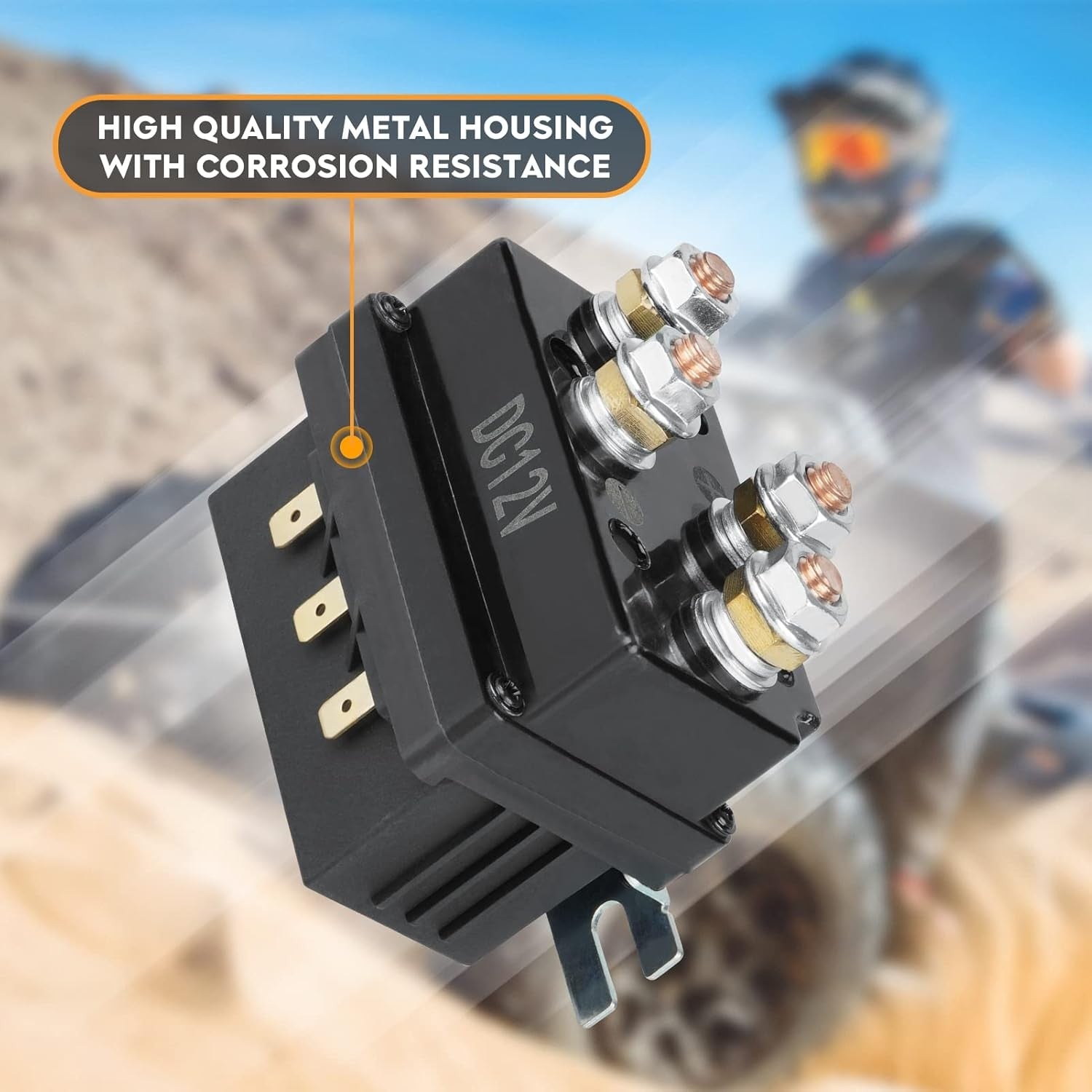

• 【WATERPROOF TREATMENT】: 8000lb-15000lb winch solenoid made of premium and weather-resistant steel; Black powder coated finish for long service life. Meets original standards, direct replacement for your winch solenoid.

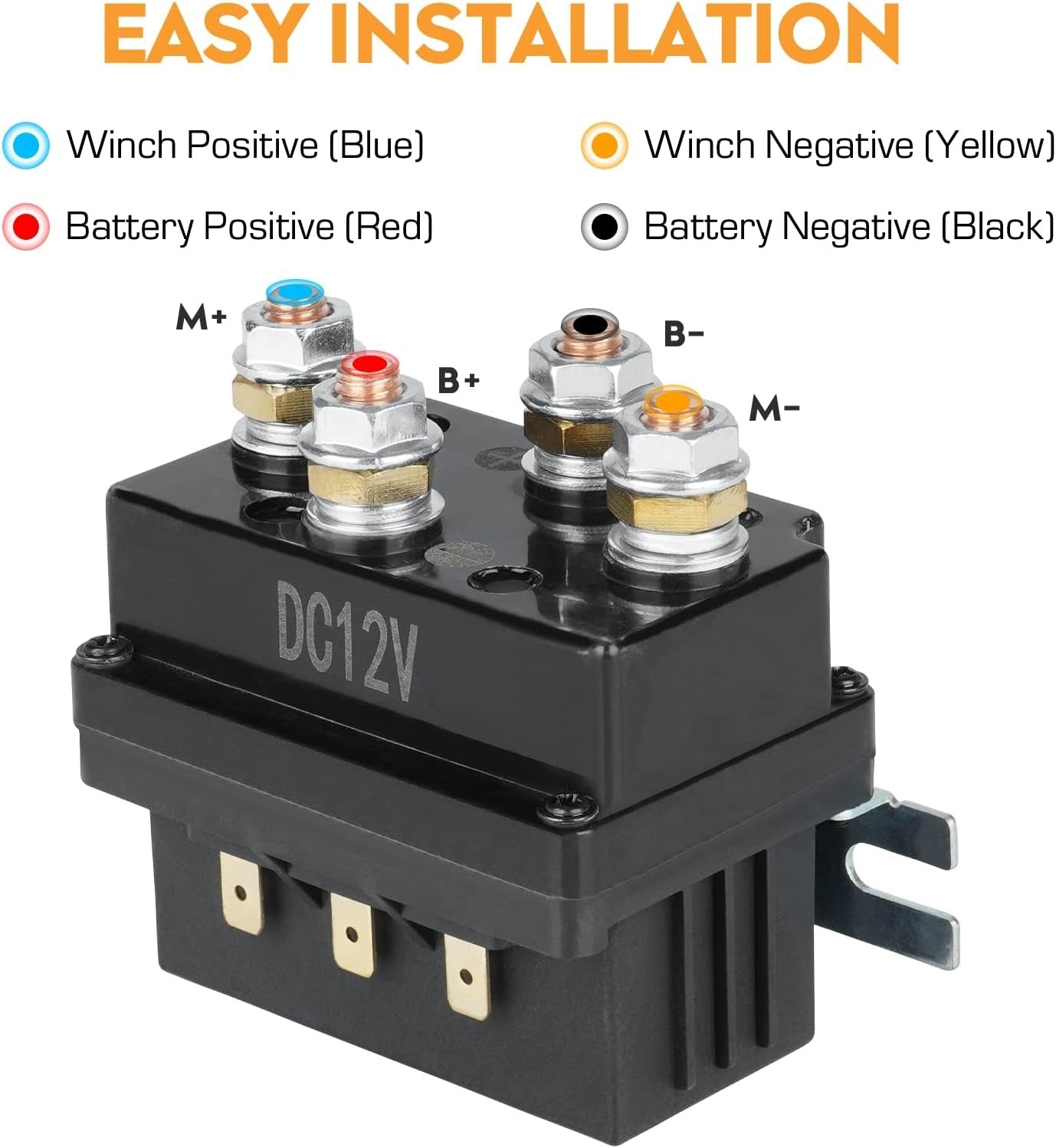

• 【EASY TO INSTALL】: Pre-cutting mounting bracket for easy installation into control box. The 4 terminals are silver plated, and this one is big size winch.
• 【Quick Response】: The winch solenoid replacement assembly from Youxmoto. If the winch solenoid fails, please contact us immediately to solve the problem for you.

Product Details:

• Connector Type: Screw
• Contact Type: Normally Open
• Current Rating: 5E+2 Amps
• Mounting Type: Panel Mount
• Brand: Youxmoto
• Operation Mode: Manual
• Wattage: 15 watts
• Coil Voltage: 6E+1 Volts (DC)
• Specification Met: OEM
• Manufacturer: Youxmoto
• Model: LFWSR005-LYF
• Item Weight: 1.83 pounds
• Product Dimensions: 0.5 x 0.5 x 0.5 inches
• Item model number: LFWSR005-LYF
• Manufacturer Part Number: LFWSR005-LYF
• Connector Type: Screw
• Contact Type: Normally Open
• Current Rating: 5E+2 Amps
• Mounting Type: Panel Mount
• Brand: Youxmoto
