ZOOKOTO 30A Solar Panel PV in-Line Fuse Holder w/Fuse Photovoltaic

Description

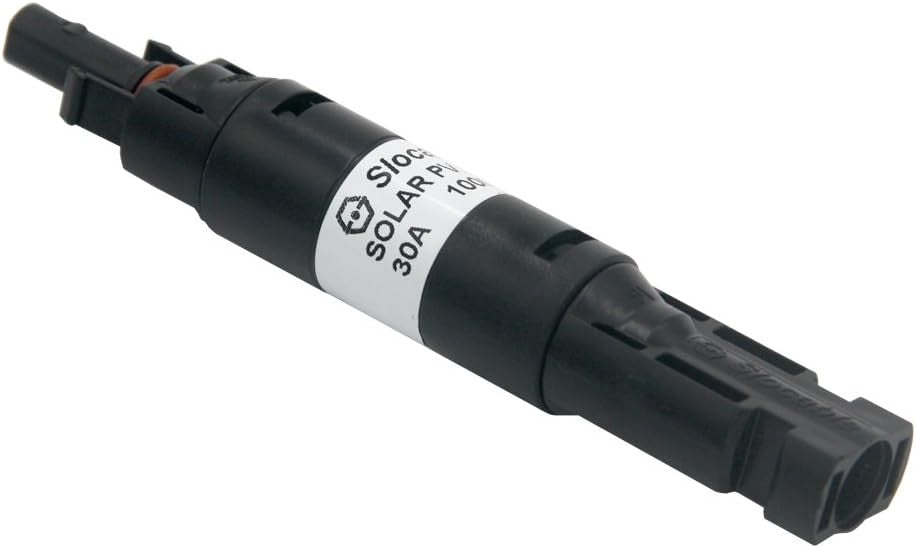

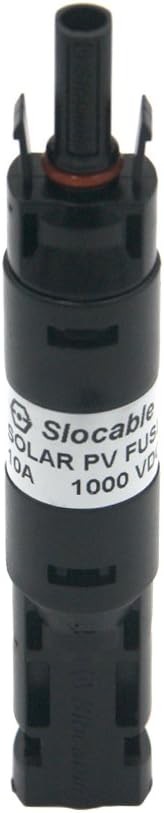

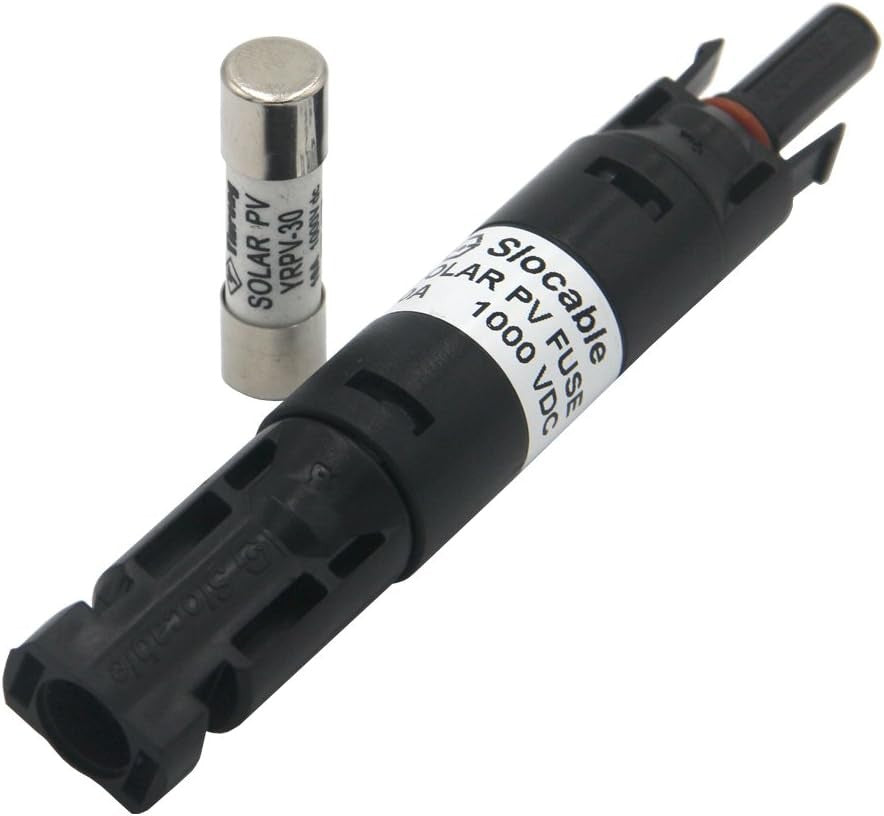

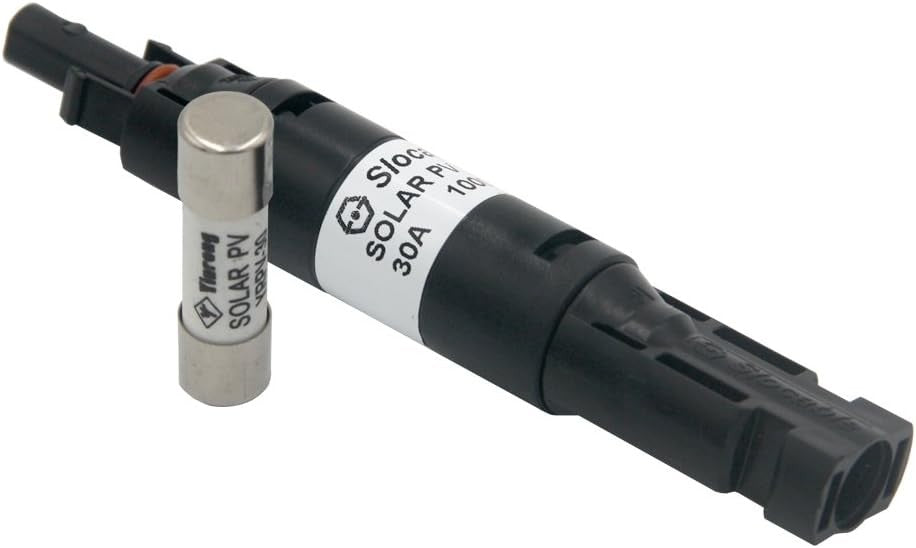

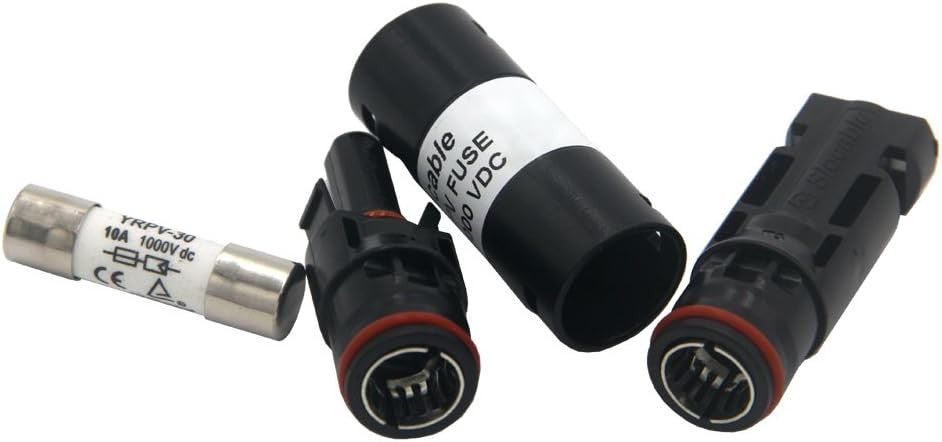

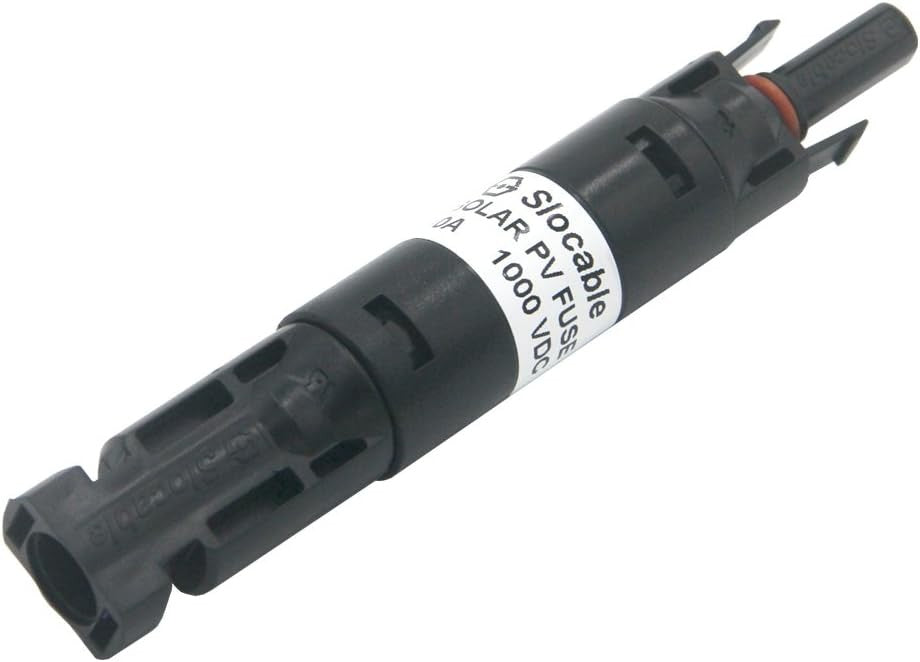

This product is a 30A fuse embedded in a waterproof fuse holder and features connector cables on each end. See image in photo gallery for technical specifications. This Connector compatible fuse holder + fuse is designed to provide over-current protection for solar arrays. The use of a fuse can protect your solar array from unnecessary damage from an over-current event. Specifications: 30A Solar In-Line Fuse Holder Waterproof w/ Fuse Rated Current: 30A Rated Voltage: 1000 V DC Fuse Can Replace Insulation Material: PPO Net Weight: 53g Dimensions: 4.8 x 0.8 x 0.8 In Test Voltage: 6000V (50Hz,1 min) Degree of Protection: IP2*/IP67Contact Resistance of Plug Connector:1mΩ Insertion Force / Withdrawal Force: ≤50N / ≥50N Contact Material: Copper, Silver Plated Connection type: adapter (it is very convenient) Operation Temperature range: -40 to +125 Cel. Degrees Package Included: 1 x Fuse Photovoltaic Connectors Safety tips Caution: Do not open this holder under LOAD For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled. The end product must provide protection from electric shock. Unplugging under load: PV plug connections must not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted. Disconnected connectors should be protected from dirt and water with sealing caps.

Features:

• 30 Amp 1000V fuse options available
• Compatible with PV cables with different insulation diameters, designed for a wide range of DC applications
• Connector adopts touch and insertion of reed with inner-knob type, Simple Plug & Play
• Auto-lock equipment of male and female points render connections easy and reliable, Simply install fuse holder at any junction in your wiring system
• Waterproof: IP67 Class Protection and high current-carrying capacity

Product Details:

• Product Dimensions: 4.8 x 0.71 x 0.43 inches
• Item Weight: 1.58 ounces
• Manufacturer: ZOOKOTO
• Item model number: SP-TYN-CX30A
• Is Discontinued By Manufacturer: No
