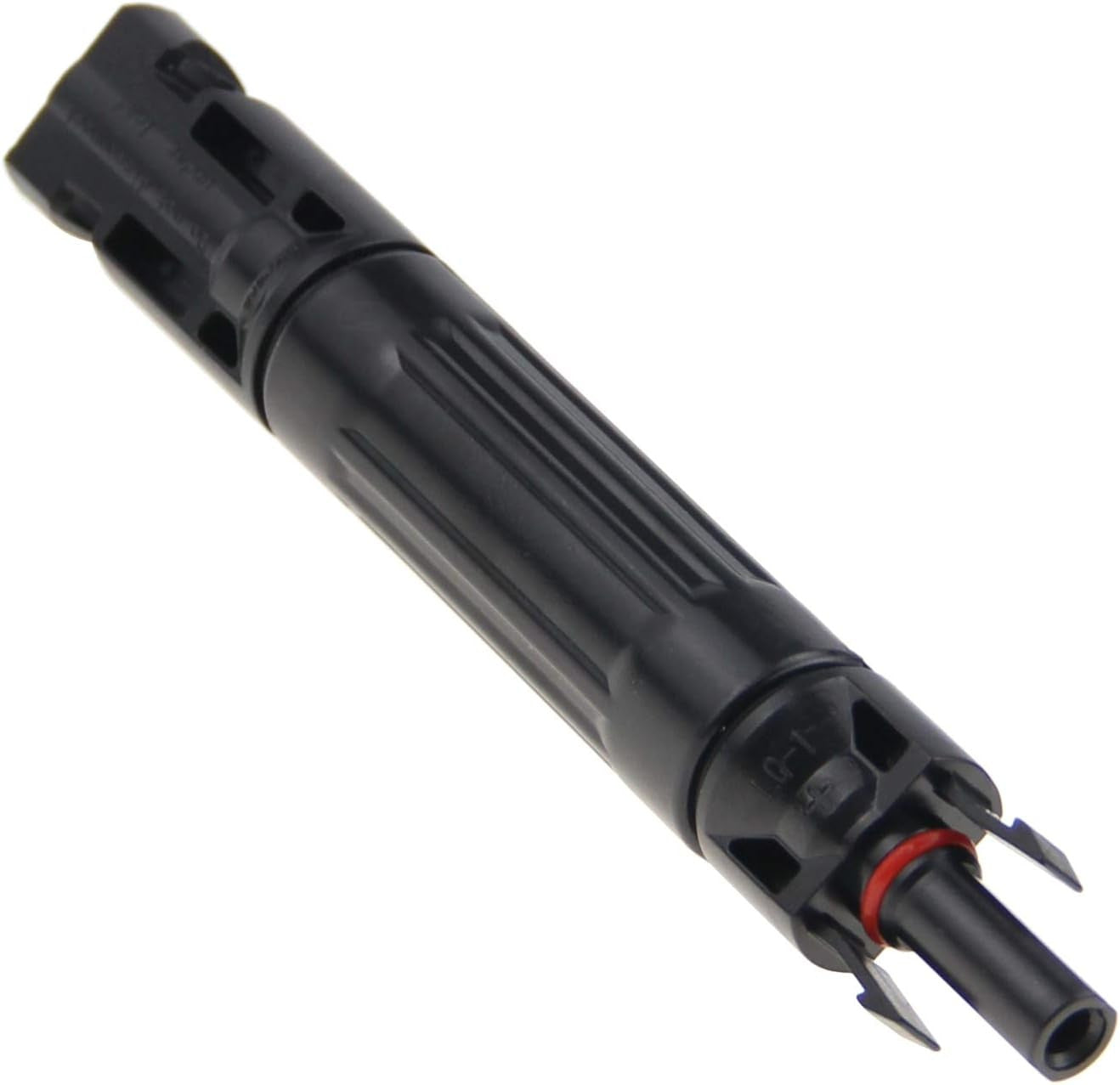

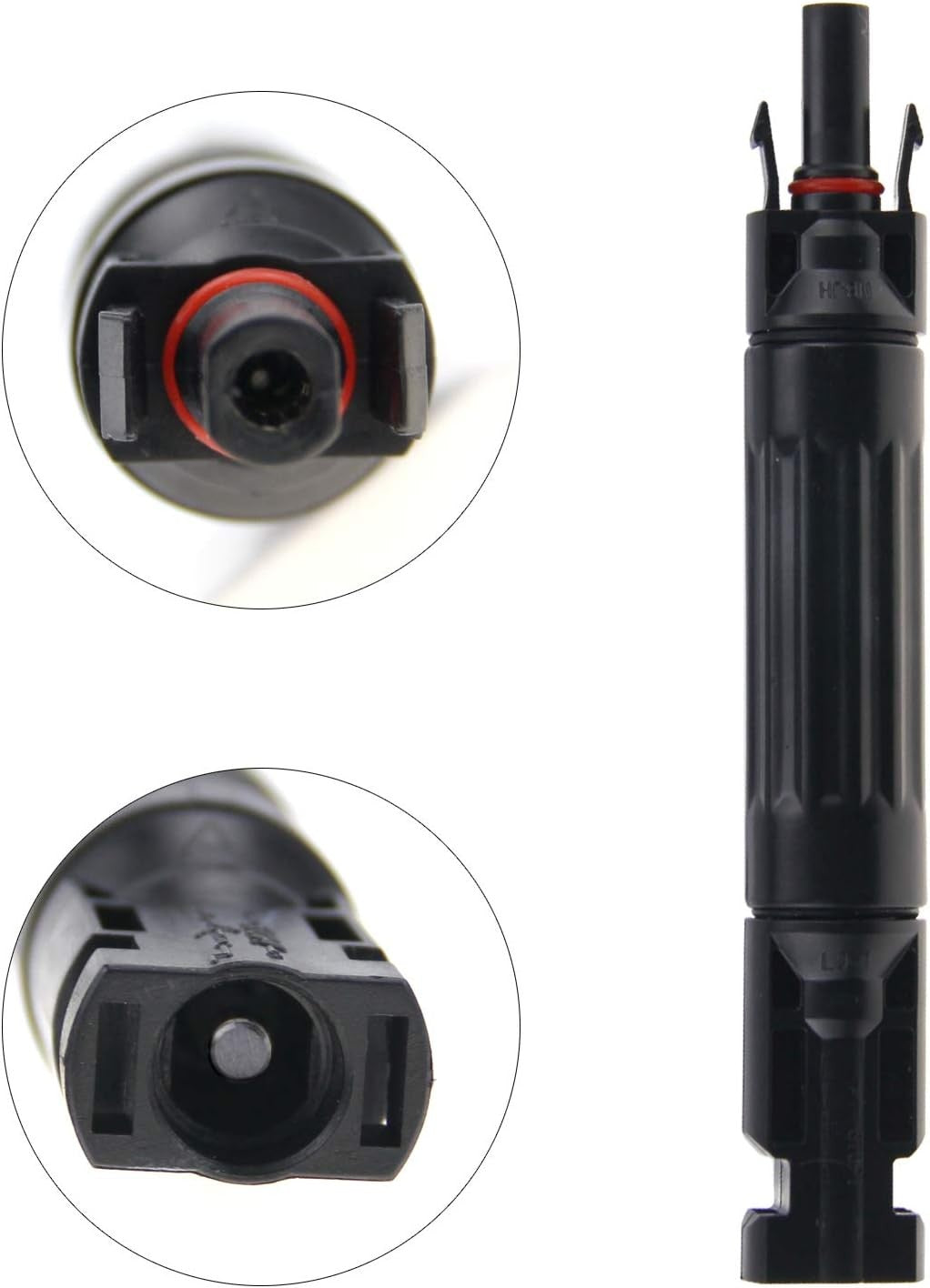

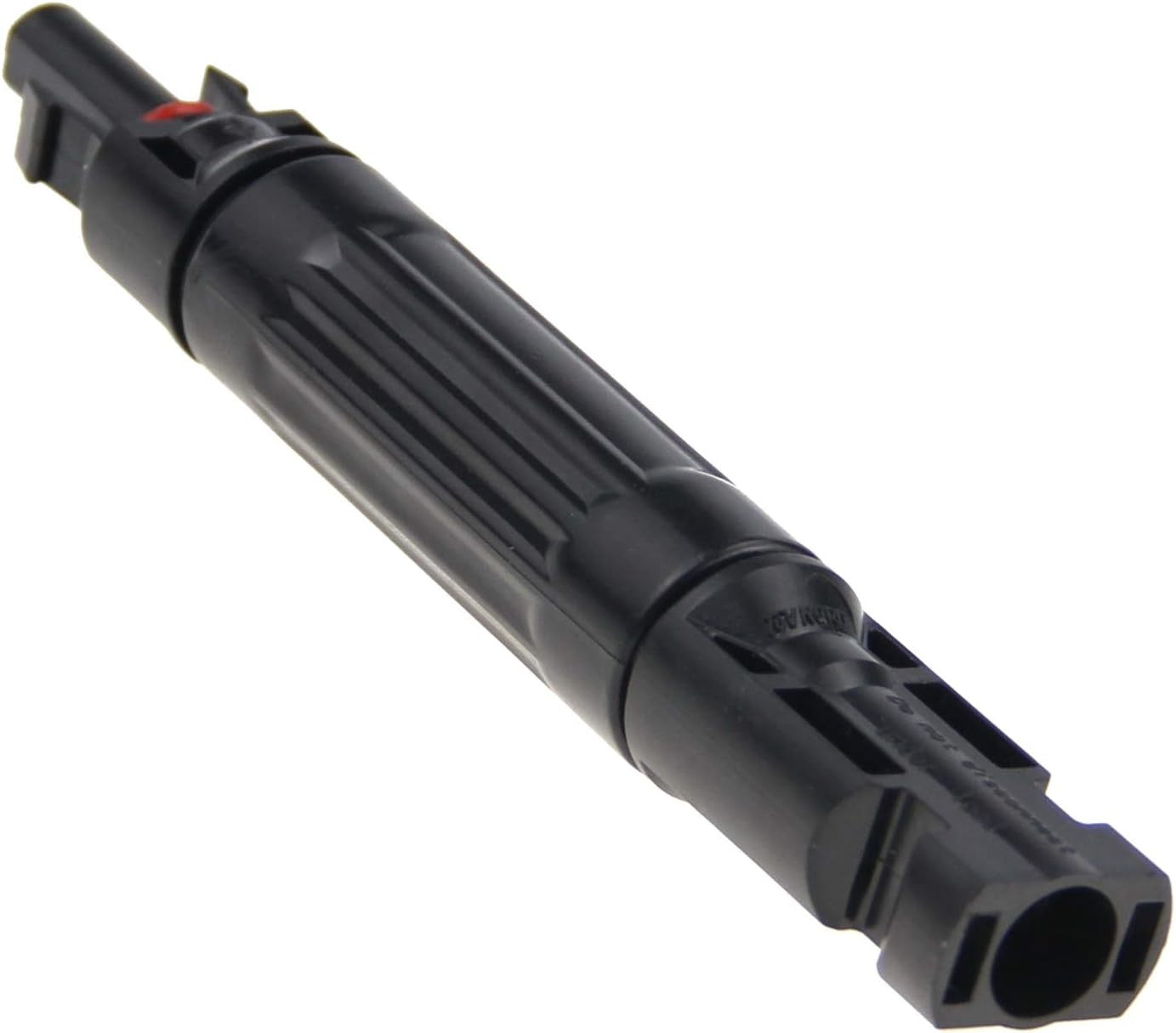

ZOOKOTO Solar Panel PV Connector with Built in 15A Fuse Holder Waterproof

Description

Specifications: Rated Current: 15A MAX Rated Voltage:1000V DC Test Voltage:6000(50Hz,1min) Overvoltage Category/Polution degree:CATIII/2 Contact resistance of plug connectors:0.5mΩ Contact meterial :Coppper,Ag plated Insuation material:PPO Flame class:UL94-VO Type: Male to Female Material: PA/PC Certifications: TUV Size: 13.5 x 2 Cm(L*D) Color: Black Net Weight: 35g Package Content: 1 x 15A Fuse Connectors For protection against electric shock, PV connectors must be isolated from the power supply while being assembled or disassembled. The end product must provide protection from electric shock. Unplugging under load: PV plug connections must not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter. Plugging and unplugging while under voltage is permitted. Disconnected connectors should be protected from dirt and water with sealing caps.

Features:

• Each unit includes 1pc Fuse Holder + 1pc 15Amp Fuse
• Compatible with PV cables with different insulation diameters，Material: PA/PC; Certifications: TUV
• With IP67 Waterproof, excellent aging resistance and UV endurance, it can be used in harsh environment

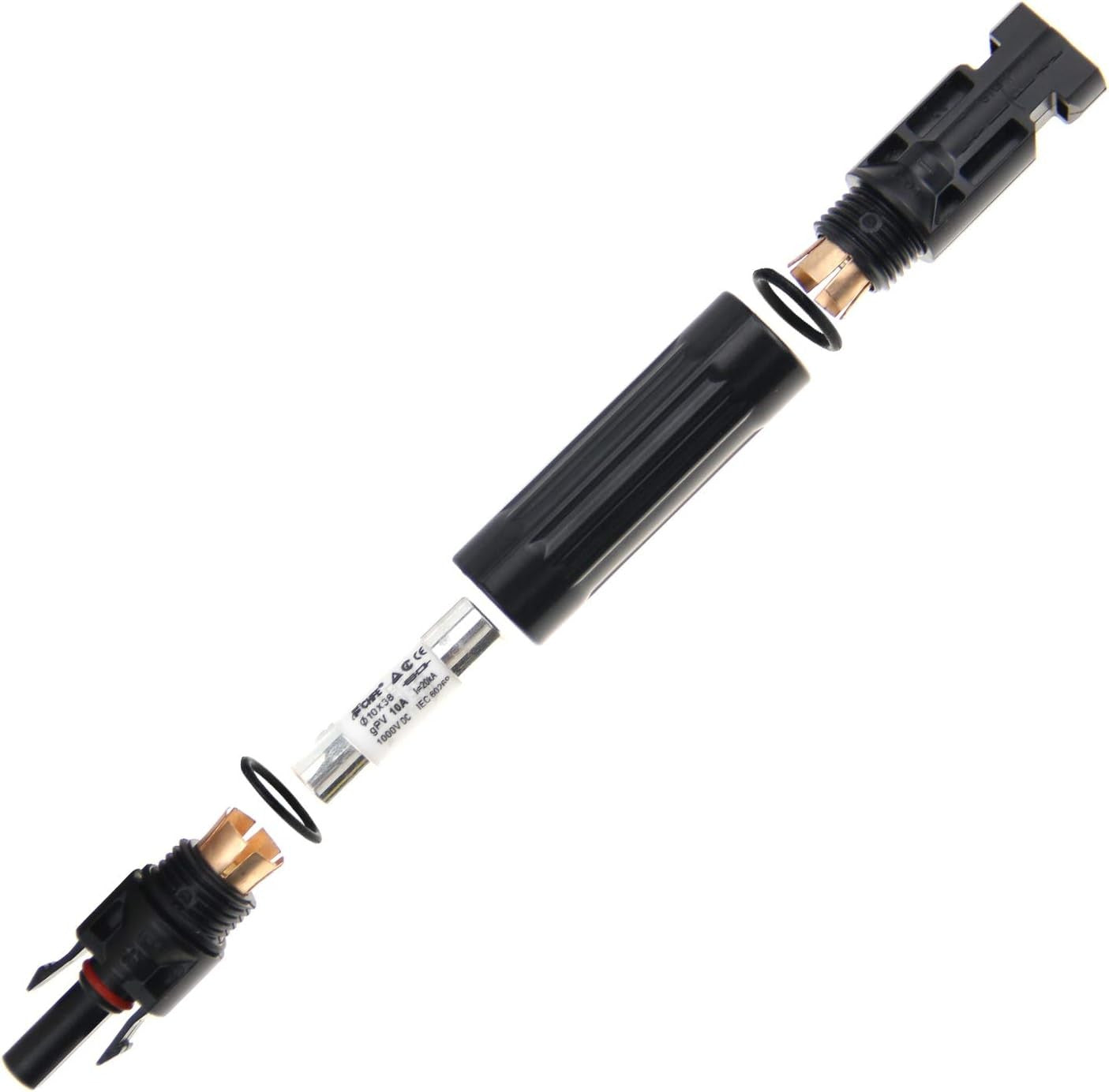

• Changing fuse is fast and easy. Simply unscrew the Fuse Holder, remove the old fuse, insert the new fuse, and screw the fuse Holder shut
• 10amp, 15amp, and 20amp Fuse options available, if there is any question, just contact us

Product Details:

• Product Dimensions: 5.12 x 1.18 x 1.18 inches
• Item Weight: 1.13 ounces
• Manufacturer: ZOOKOTO
• Item model number: MC6FUSE
